wanted !!

[Brian GashParticipant @briangash26300]

Drawings for Sanderson Beam Engine

[Brian GashParticipant @briangash26300]

Does anyone have to sell a set of drawings ( or know where i can get, ) for a Sanderson Beam Engine !!. I have tried to find some on the internet without any luck. I have a part set of castings but no drawings. Hope someone can help

[RobboParticipant @robbo]

Brian,

Assume you know about/have the articles in ME vols 181-183 (Stan Bray) in 1998-1999.

Still on sale from Blackgates Engineering I think.

No other info, sorry.

Edited By Robbo on 01/02/2014 09:57:43

[JasonBModerator @jasonb]

Yes Blackgates still list the set of drawings and should also be able to supply any castings that you are missing.

J

[Ompa OmpaParticipant @ompaompa11814]

Not trying to hi-jack this thread, just posting a reply after contact with Jason. Thanks.

[JasonBModerator @jasonb]

Could someone confirm if they can see Ompa's reply above?

J

[Keith LongParticipant @keithlong89920]

Jason

Let me put it this way — Errrr – what reply from Oompa?

No signs of one.

Keith

[JasonBModerator @jasonb]

Thanks looks like the invisible man is still at large then.

J

[John Stevenson 1Participant @johnstevenson1]

How about now. ?

[RobboParticipant @robbo]

I can see it after Jason's post above timed 10:56:19

Edited By Robbo on 01/02/2014 13:41:25

[JasonBModerator @jasonb]

Showing up for me now when logged out so looks like we know what happend, just not who did it.

J

[Michael GilliganParticipant @michaelgilligan61133]

Posted by JasonB on 01/02/2014 13:40:26:

Showing up for me now when logged out so looks like we know what happend, just not who did it.

J

.

Oh No … not the "Global Ignore Member" command !!

[John Stevenson 1Participant @johnstevenson1]

Moderators have three extra icons at the bottom of the posts.

Edit [ Handy when someone un-named gets into his drunken ramblings ]

Delete posting [ handy for the odd double post ]

and Send to Leper Colony [ handy if you are having a bad day ]

Unfortunately this bunches the bottom line up and it's easy to get the wrong button.

Graham got the hand bell and the unclean sign to wear for a bit

No one is owning up to doing it [ is there a smily for whistling ? ] but it's an easy mistake to get the wrong button.

Anyway sorted now and apologies to graham as it wasn't intended. Diane says it just sometimes happens anyway ?

[JasonBModerator @jasonb]

BTW its Stan not Graham, easy to get mixed up with Ompa Ompa (stan) and Ompa Lupa (Graham)

J

[John Stevenson 1Participant @johnstevenson1]

Be even better if the used their real names instead of hiding behind a no-de plume and then signing Stan or Graham at the end.

Fearless Fred from Nottingham.

[Michael GilliganParticipant @michaelgilligan61133]

Posted by JasonB on 01/02/2014 16:12:26:

BTW its Stan not Graham, easy to get mixed up with Ompa Ompa (stan) and Ompa Lupa (Graham)

J

.

Sorry … I may have started that confusion.

MichaelG.

[Roderick JenkinsParticipant @roderickjenkins93242]

I recently bought the drawings from Blackgates. I read somewhere, but I've lost the reference, that originally these beam engines where exported in kit form – including a flywheel in pieces. The flywheel in the drawing does not look like it would have been cast in full size. Can anyone suggest how such a flywheel might have been put together?

cheers,

Rod

[JasonBModerator @jasonb]

Nuts and bolts, one instance where they did not seem to use studs.

If you have a look at Phil's "Agnes" thread over on MEM he has some pictures of the 8 segments in his flywheel. Also Jo's Double Tangye thread has some sketches of how she intends to do the flywheel to look like it was in two halves.

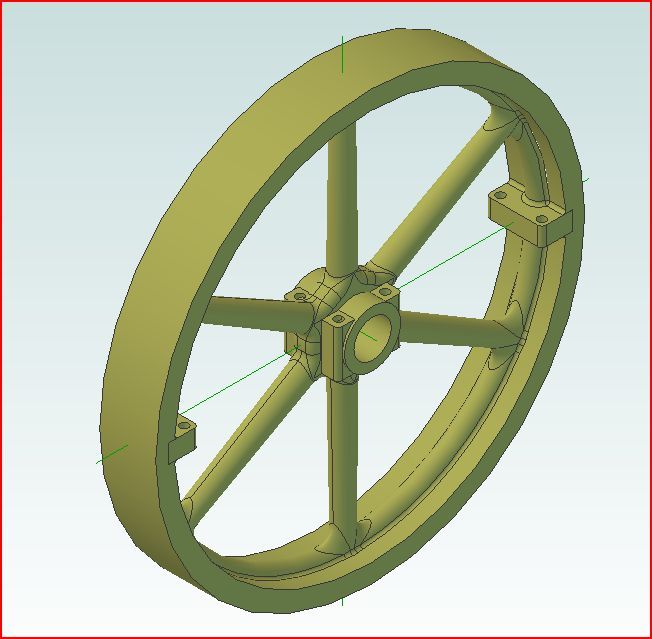

Should be easy enough to add a few dummy flanges to make it look it was joined, bit like this



Edited By JasonB on 01/02/2014 17:14:22

[Roderick JenkinsParticipant @roderickjenkins93242]

Jason,

Many thanks, I'd missed that. This picture from Phil shows very clearly how you might put a flywheel together, including those wedges (cotters?) holding the spokes in the hub.

cheers,

Rod

Edit : Not sure whether linking to somebody else's photobucket is strictly ethical

Edited By Roderick Jenkins on 01/02/2014 17:35:43
