Vertical Shear Lathe Tooling

[Jon GibbsParticipant @jongibbs59756]

Posted by Bogstandard2 on 07/01/2015 08:29:16:

With regards to the pseudo TC from the US, I class most of his work as plagiarism, and as for STEALING our Tom's name, I won't comment.

Truth is they both stole it…

"Genesis 4:22 says that Tubal-cain was the "forger of all instruments of bronze and iron" (ESV) or an "instructer of every artificer in brass and iron" (KJV). Although this may mean he was a metalsmith, a comparison with verses 20 and 21 suggests that he may have been the very first artificer in brass and iron. T. C. Mitchell suggests that he "discovered the possibilities of cold forging nativecopper and meteoric iron."^[4] Tubal-cain has even been described as the first chemist.^[5]" – source Wikipedia.

Don't we all pass on things we think are good ideas? – I know I do. This thread is a case in point.

I realize it will not be new to some people but will I stop doing it – No.

Jon

[Martin KyteParticipant @martinkyte99762]

Jon,I use tubal as my email address name for the very same reasons you have pointed out. That and a nodding admiration for Tom Walshaw. There must be quite a lot of people called Tom out there too.

:0)

Martin

[Russell EberhardtParticipant @russelleberhardt48058]

To avoid confusion:

• Tubal-cain was a biblical metal worker
• Tubal Cain was a respected professional engineer and model engineer who made many valuable contributions to ME.
• Tubalcain makes Youtube instructional videos

Three different people, three different names.

Russell.

[Ian S CParticipant @iansc]

One problem I found with the vertical shear tool is that it wont work right into a shoulder on a shaft. Made mine from the shank of a 3/8" tap.

Ian S C

[Russell EberhardtParticipant @russelleberhardt48058]

Posted by Ian S C on 07/01/2015 10:15:05:

One problem I found with the vertical shear tool is that it wont work right into a shoulder on a shaft. Made mine from the shank of a 3/8" tap.

Ian S C

If you make it from square HSS you can set it so that the bottom of the tool is just a tad below centre height. You should then be able to get very near to the shoulder. On second thoughts you should even be able to make a slight undercut?

Russell.

[Jon GibbsParticipant @jongibbs59756]

I found a description of a boring bar variant here **LINK**

The only problem is that the "business end" is effectivel a conical section machined from HSS round bar.

…have to find an easy grind that'll mimic the cutting action.

Jon

[geoff ryan 1Participant @geoffryan1]

Hi All, this is the first post of a long term browser. I'm a novice machinist with an inherited Cowells lathe and still on the lower slopes of a steep learning curve. I'm currently machining some 0 Morse centres from silver steel and was having some trouble getting a decent surface finish. I saw this thread and thought I'd give a vertical shear tool a go. The results were great and being sure of getting both surface finish and dimension right when I make a cut is a real confidence booster. So thanks to all and particularly the American guy who went to the trouble of making the videos.

[Jon GibbsParticipant @jongibbs59756]

Inspired by the idea of the shear boring bar I tried grinding a single facet (approx 60 degrees) on a 1/4" round toolbit and setting it at an angle into the end of a square (7/16" ) boring bar (approx 15 degrees).

To bore the hole in the boring bar I mounted it in the QCTP on centre height but at 15 degrees to the lathe bed and drilled using a Jacob's chuck in the headstock.

This results in a cutting geometry a bit like the idea above with the conic section.

When mounting the toolbit you need to rotate it in the holder so that looking from above you have an ellipse slightly angled back from the cutting axis. This puts a slightly positive rake on the cutting edge but the angled facet on the toolbit still results in a shear cutting face against the inside of the bore.

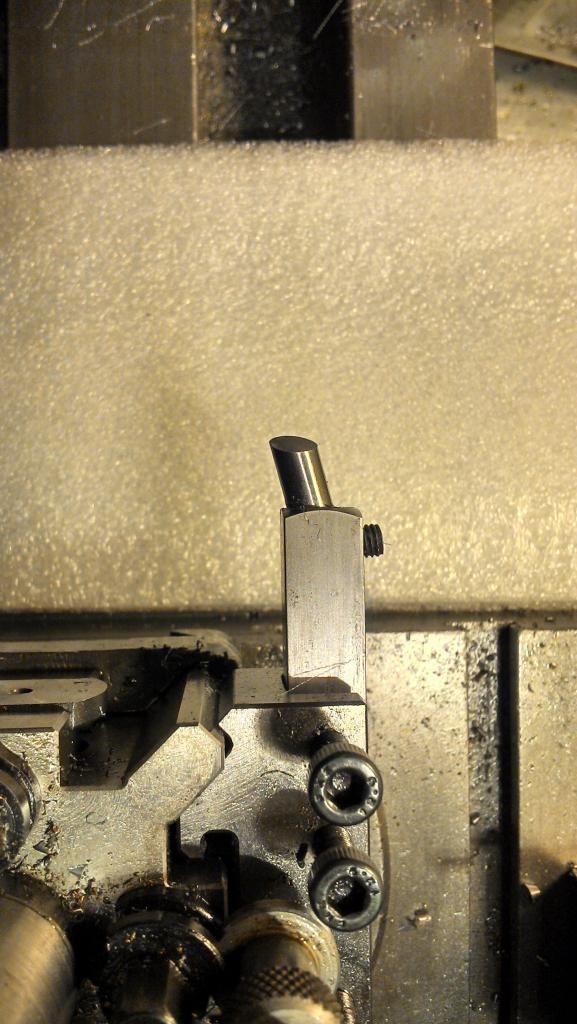

Here's the toolbit mounted in the boring bar seen from above – note the ellipse.

and here's the side view to show the shearing angle…

And here's a piece of 1" EN3B bored to roughly 5/8" (~3 thou per rev – lowest feed on my old ML7)

…and here it is after boring out the outside half with a few passes of the shear boring bar (same feed rate)…

Sorry that these photos don't really show it very well but it does seem noticably better IMHO.

Here's a view showing it being refined and some of the long thin hairy chips…

Jon

Edited By Jon Gibbs on 08/01/2015 20:32:29

Edited By Jon Gibbs on 08/01/2015 20:33:38

Edited By Jon Gibbs on 08/01/2015 20:38:14

Edited By Jon Gibbs on 08/01/2015 20:51:40

[geoff ryan 1Participant @geoffryan1]

Hi Jon,

Thanks for sharing your design of boring bar. I particularly like the simple ground profile enabling the cutting edge to be kept very sharp. I can see myself making something similar for the finishing cuts to cylinder bores.

[I.M. OUTAHEREParticipant @i-m-outahere]

I mentioned just this on the comments for mr pete – no reply yet.

I also was thinking of its uses in a boring head for finishing cylinders but never thought of using plain old easy to get round HSS !

Thanks Jon !

Ian.

[Jon GibbsParticipant @jongibbs59756]

Hi Geoff, Ian,

No problem. Hope it proves useful.

Jon

[thaiguzziParticipant @thaiguzzi]

Also if the front face is curved the same as the shaper tool, you can face with it too, but contact must be centre height, whereas in normal turning to diameter, centre height is irrelevant for a shear tool. For me, on the shaper or the lathe, not only do i get a great, consistent finish, but the finished size/diameter is so consistent over the whole length/ size of piece.

[geoff ryan 1Participant @geoffryan1]

Jon, have you tried your boring bar for making facing cuts? It seems to me that the boring bar cutter geometry would also work for facing cuts, or am I mistaken?

[Jon GibbsParticipant @jongibbs59756]

Hi Geoff,

Yes it works for facing cuts too, although the cut at the very centre, perhaps unsurprisingly, isn't very efficient.

Jon
