Vertical engine id

[michael roberts 7Participant @michaelroberts7]

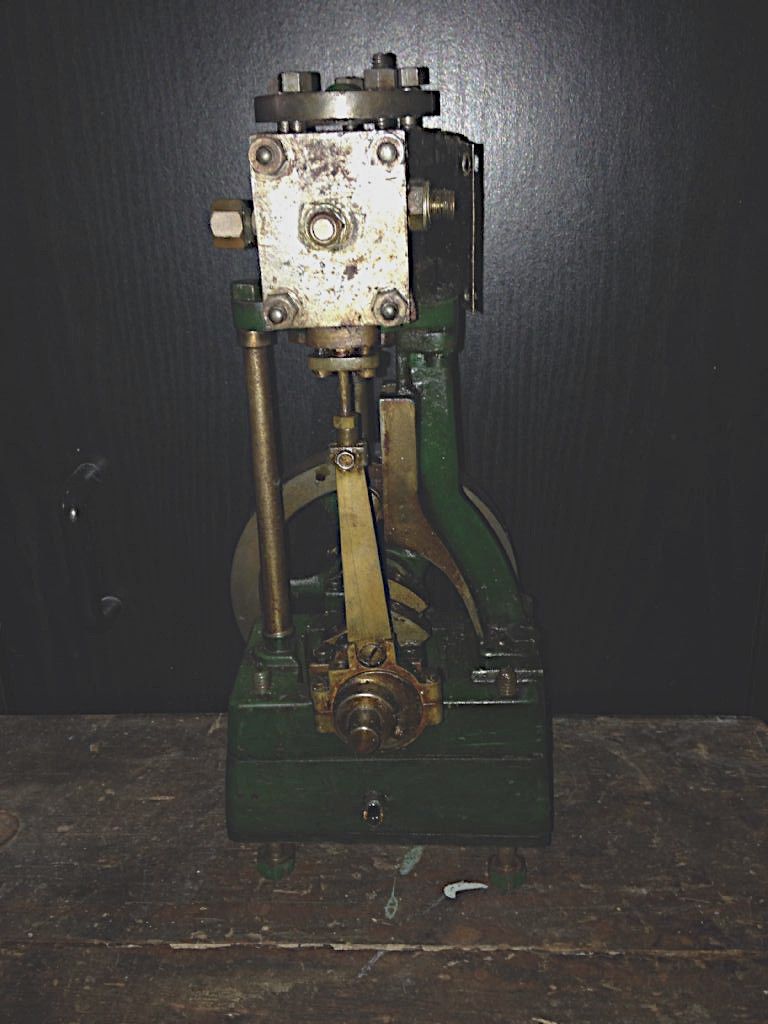

I bought this a couple of years ago with a 1920s Stuart 504 boiler. I always thought it was an old type No7 but I've recently measured the height at 9" not including the fixing bolts. Just wondering if anyone has any idea what it could be? I think it's too tall for a 7 and not tall enough for a No.4.

[michael roberts 7Participant @michaelroberts7]

[michael roberts 7Participant @michaelroberts7]

[michael roberts 7Participant @michaelroberts7]

Umm came out on its side. Trying to do this on my phone so sorry for poor photo.

[Former MemberParticipant @formermember19781]

[This posting has been removed]

[michael roberts 7Participant @michaelroberts7]

Too small for a No.1 as well.

the 1 should be 12"

the 4 should be 10"

and the 7 or 7a from memory should be 7 1/2"

[JourneymanParticipant @journeyman]

Might help a bit

John

[michael roberts 7Participant @michaelroberts7]

Thanks John

[Former MemberParticipant @formermember19781]

[This posting has been removed]

[JasonBModerator @jasonb]

What's the bore and stroke?

[michael roberts 7Participant @michaelroberts7]

Not checked the stroke but it's 1" bore

[michael roberts 7Participant @michaelroberts7]

If not Stuart, maybe reeves. Any idea if they had a model that size in the 1920s or 30s?

[Former MemberParticipant @formermember19781]

[This posting has been removed]

[Former MemberParticipant @formermember19781]

[This posting has been removed]

[JasonBModerator @jasonb]

Bolton No3 is right bore and stroke and has the turned support vertical as per your photo the No7 had it slanted but the current standard is more angular and not sure if it has changed over time

[michael roberts 7Participant @michaelroberts7]

The standards for the Stuart 7 changed in the 1930s, and they made it the 7a.

I can`t seem to find any images for the Bolton No.3 on google, but I`d be interested if somebody could upload one.

I`ve just done a materials test with a magnet, and it turns out the very bottom base is actually wood!!! Very well done though otherwise I would have spotted it sooner. The proportions are right compared to my Stuart 10, so the 9" height is still a mystery, Unless it is a Bolton.

[Former MemberParticipant @formermember19781]

[This posting has been removed]

[JasonBModerator @jasonb]

No I could not find a better image when searching yesterday, this is the catalogue. As I say not sure if the standard has changed over time but others have as the No16 drawings that I have don't look like the one in the catalogue being single standard and trurned leg.

Not the easiest to navigate but this site has some good stuff about how the various Stuart engine shave changed, click the 3 green bars top right of homepage.

[Former MemberParticipant @formermember19781]

[This posting has been removed]

[JasonBModerator @jasonb]

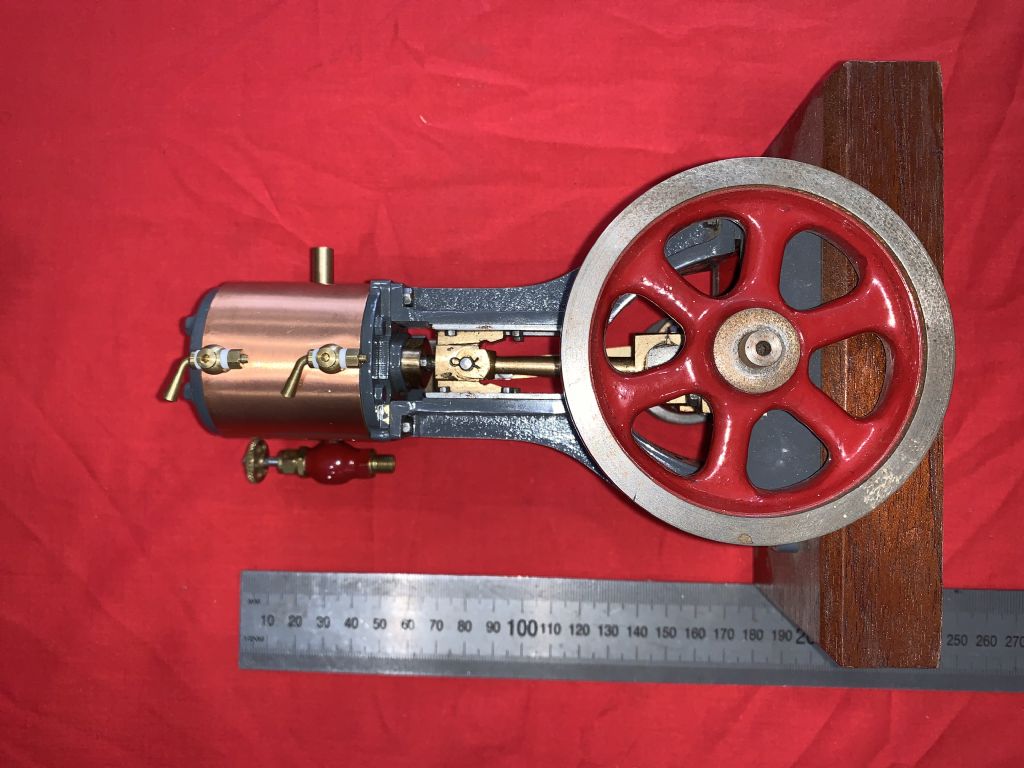

This is the photo Bill has forwarded.

Unlike the catalogue it has the pair of standards though they are curved more. Add on th eheight of the box bed and its about the right height.

Edited By JasonB on 10/03/2020 08:16:43

Edited By JasonB on 10/03/2020 08:17:16

[michael roberts 7Participant @michaelroberts7]

A few of their models look a lot like Stuart. I`ll take some better photos and maybe get in touch with Bolton models.

Just measured my flywheel and its 4 1/2".

Very nice engine no matter what, although all of my collection are Stuarts.
