      Something you may not see every day

      I recently finished this scratch built model of the F35 Lightning Ejection Seat.

      Helped by the Martin Baker Ejection seat company who provided some images for me to work with. I have made two of these, one for MB which is not as detailed as this. And this which I have added as much detail as poss for my own satisfaction.

      But how far do you go !! frown



      Thank you for looking in.

      Carl

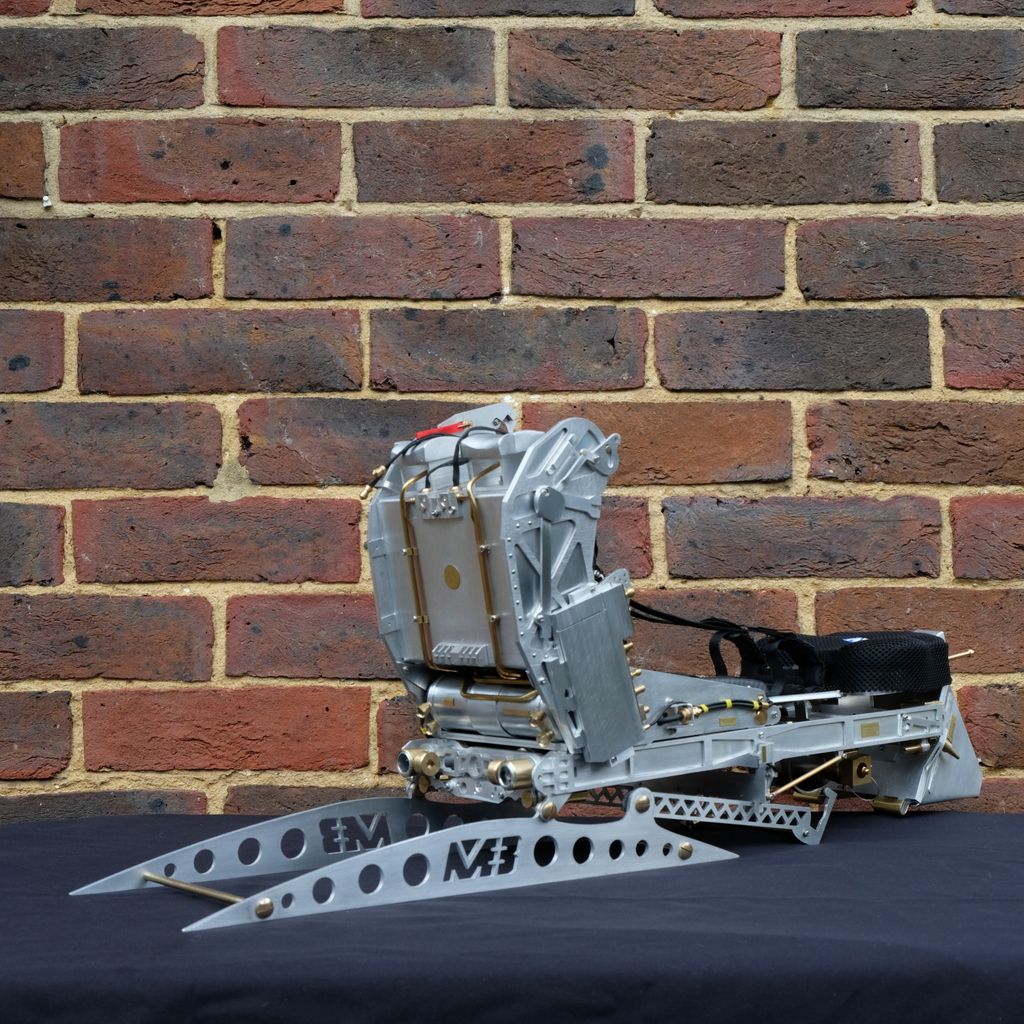

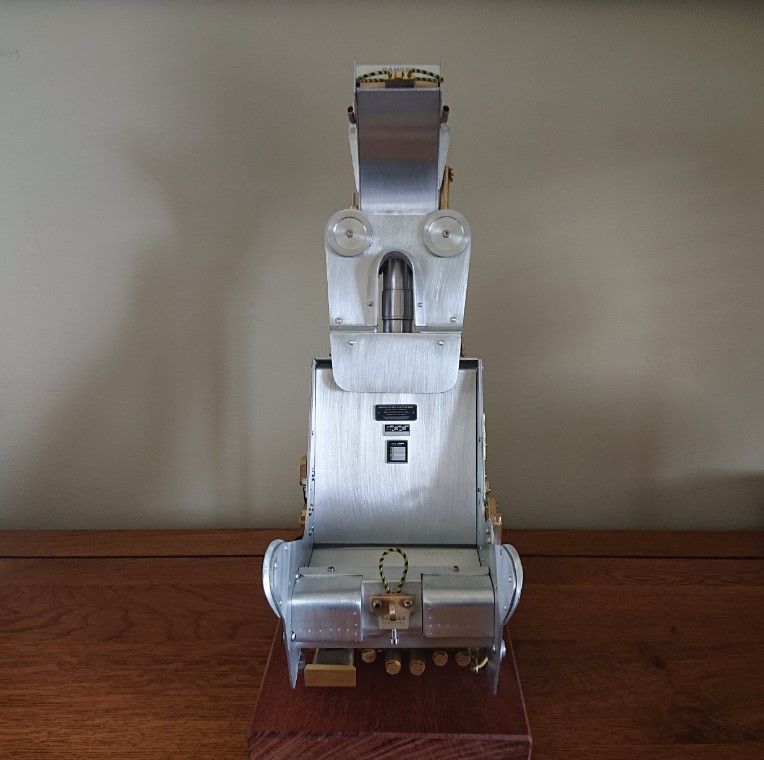

      us16e ejection seat martin baker gasgasbones  (23).jpg

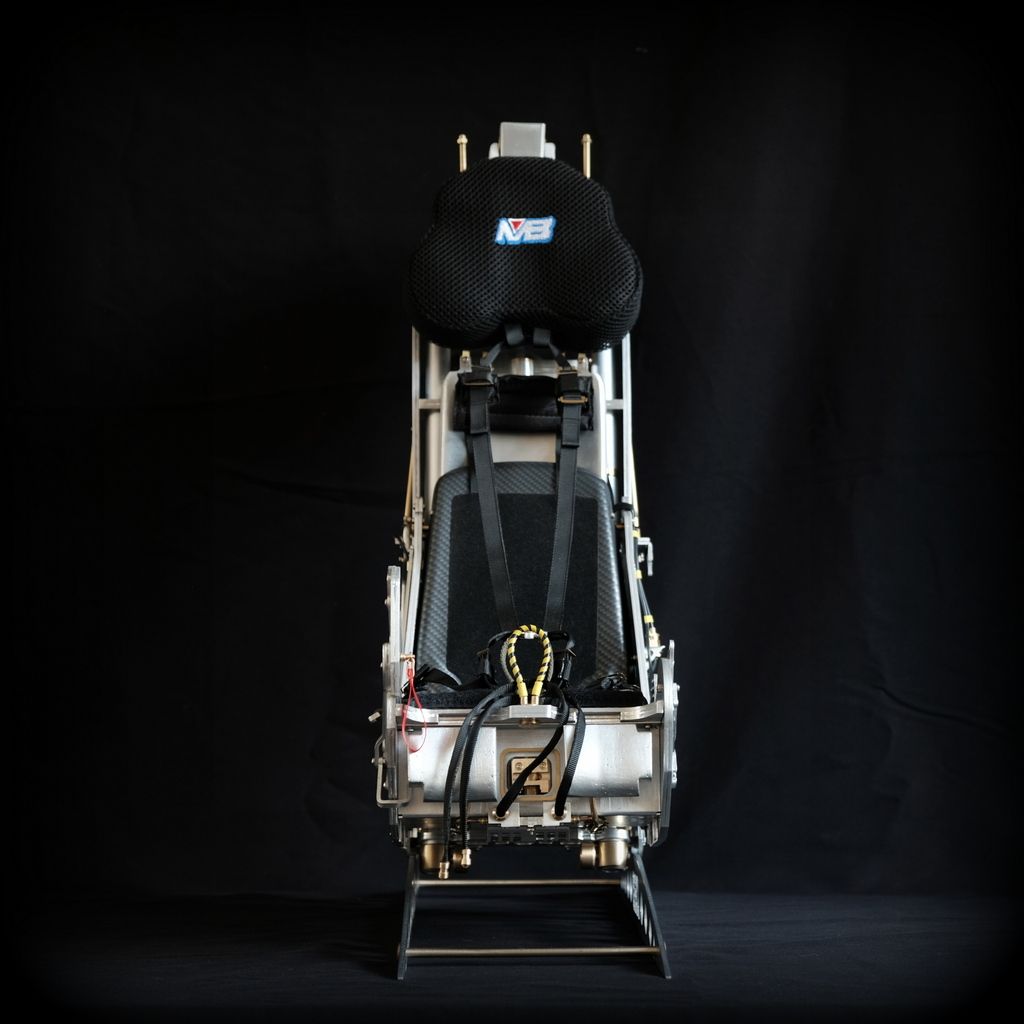

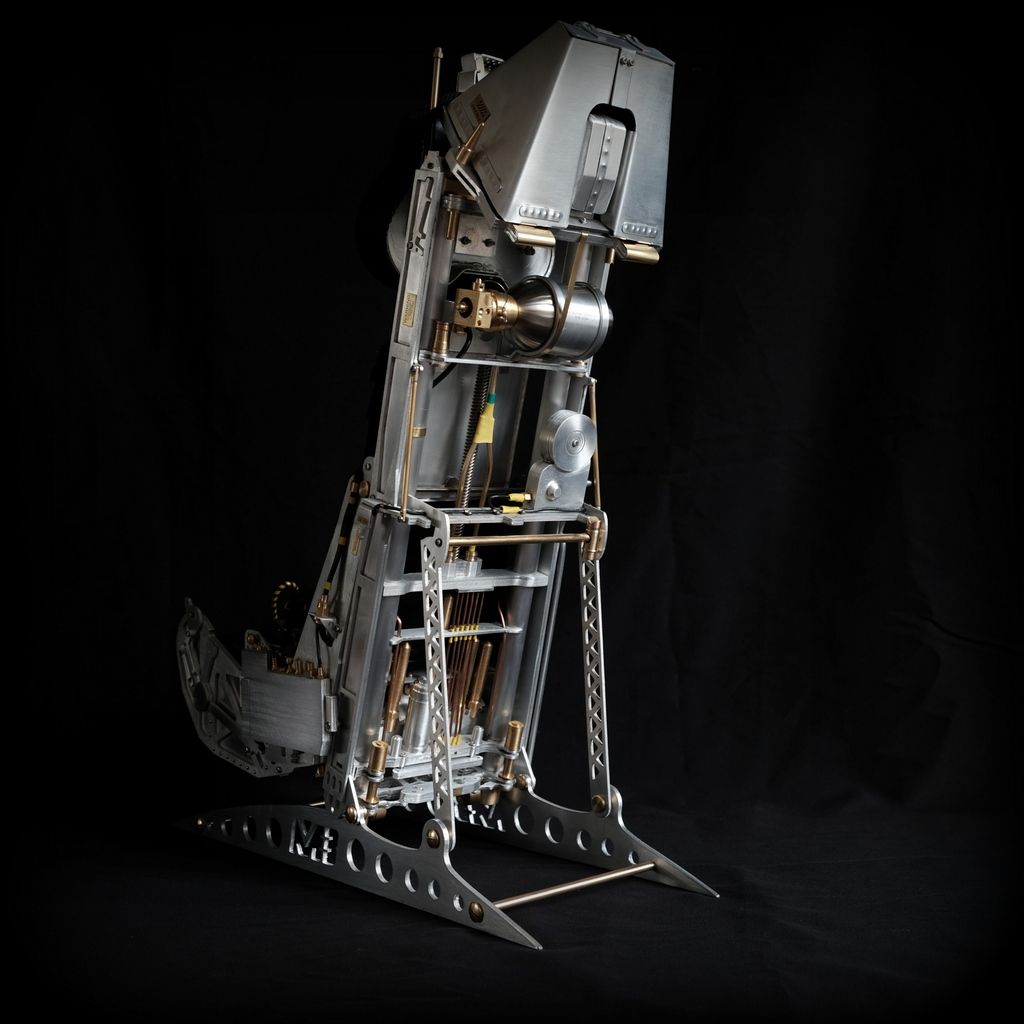

      us16e ejection seat martin baker gasgasbones  (11).jpg

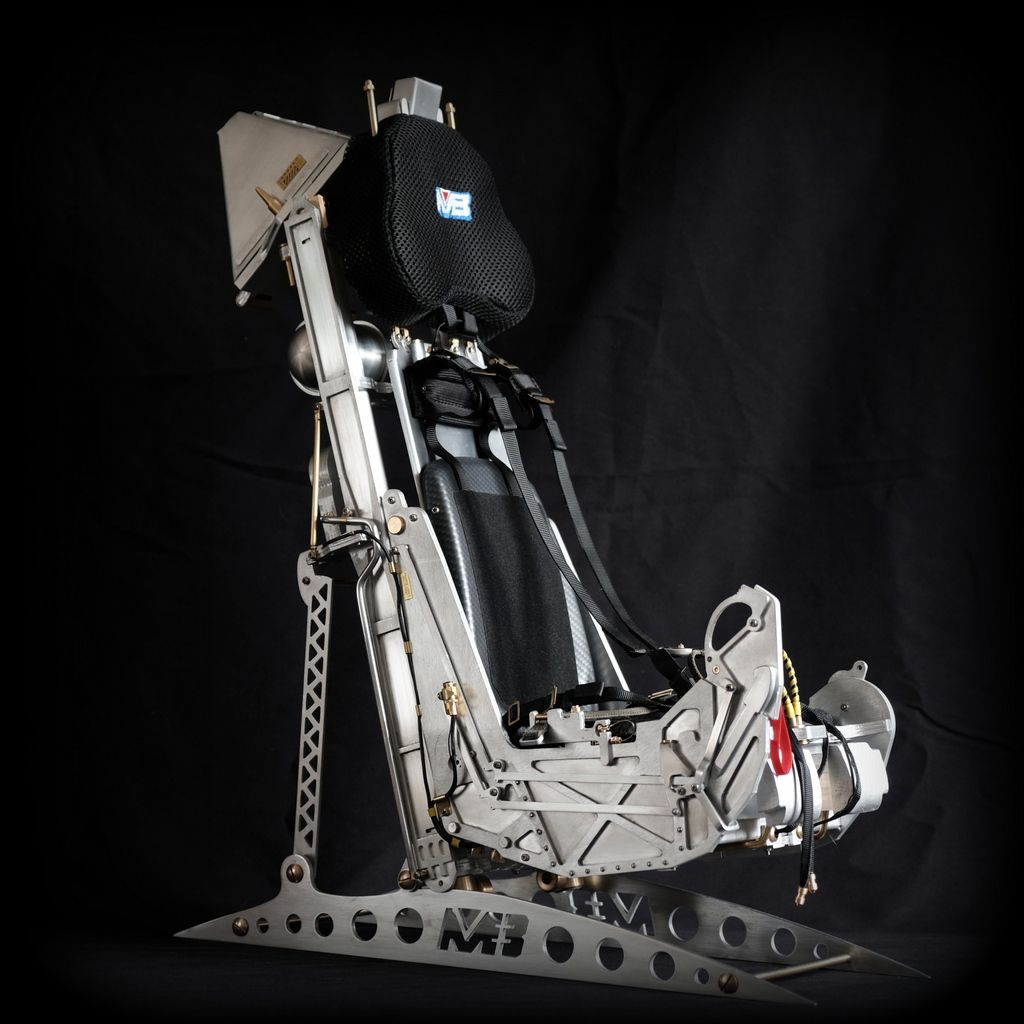

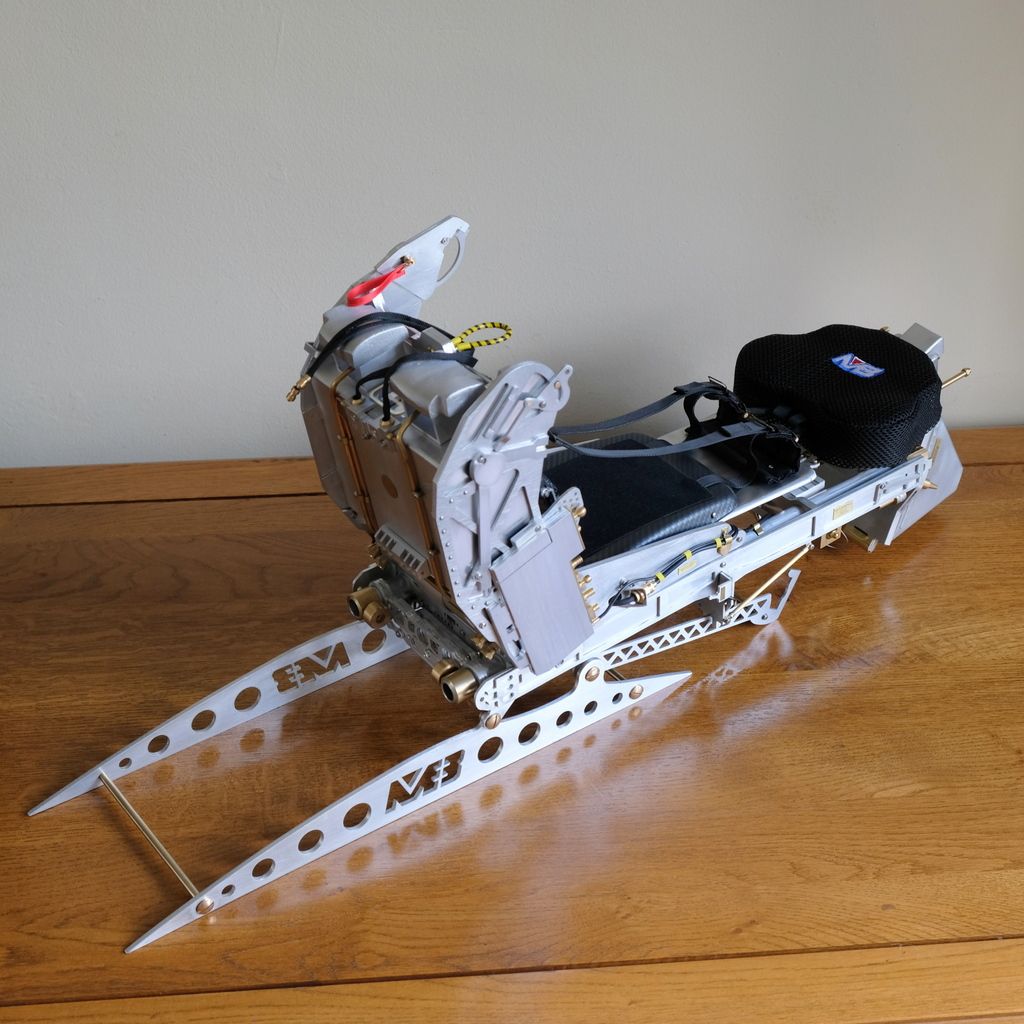

      us16e ejection seat martin baker gasgasbones  (15).jpg

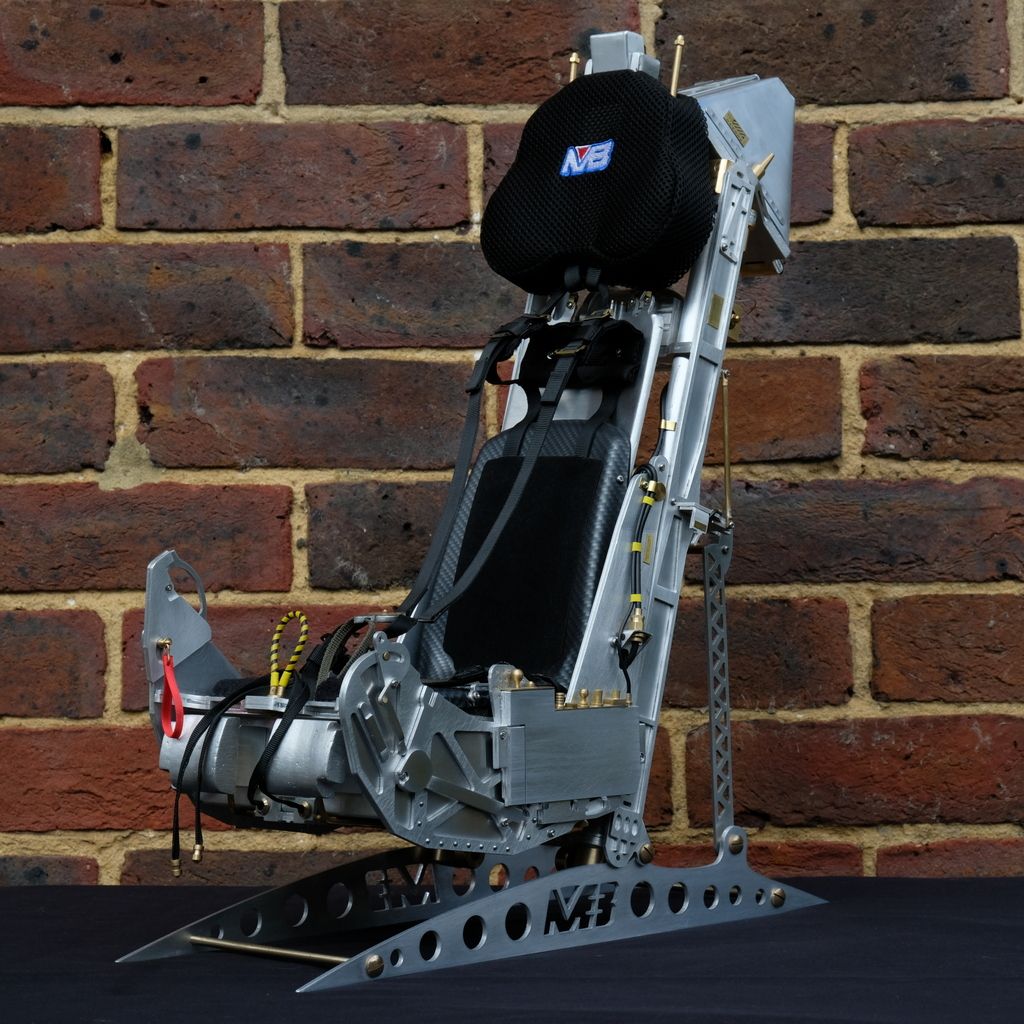

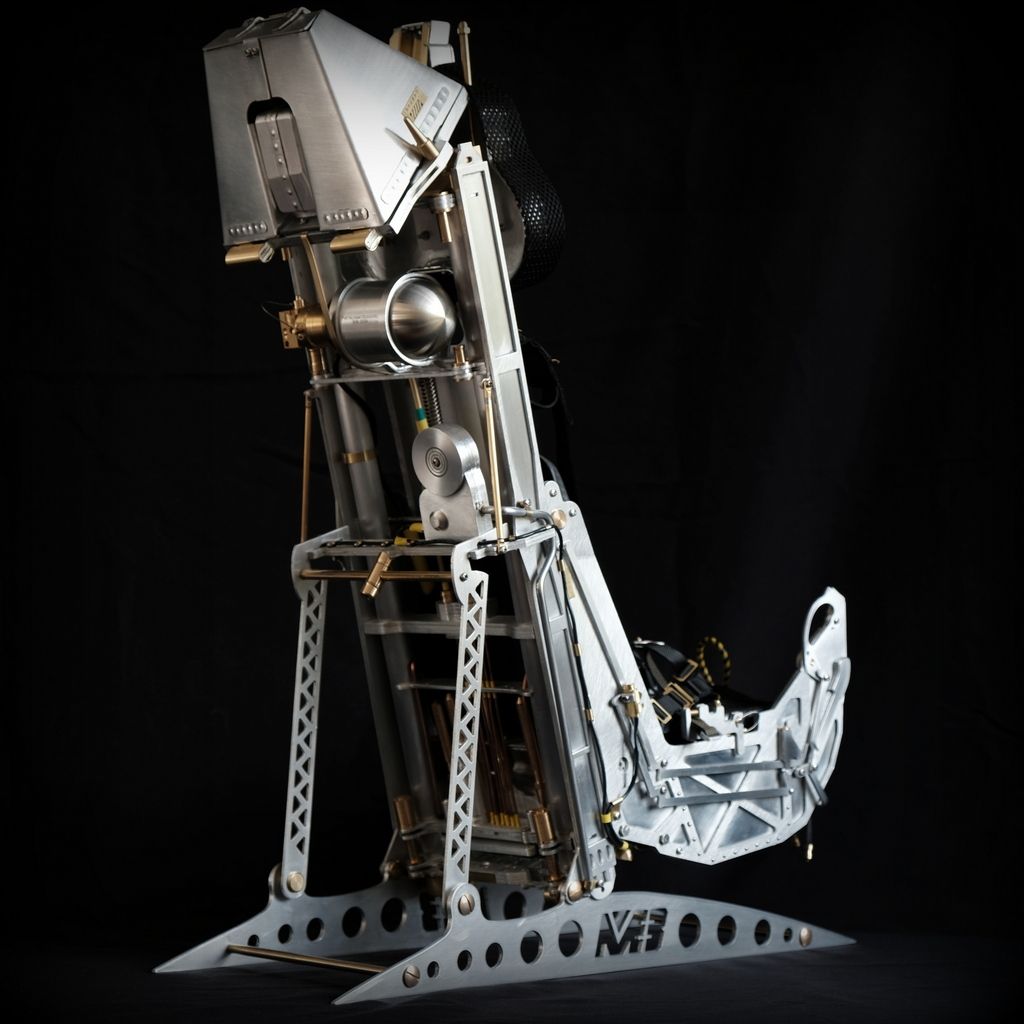

      us16e ejection seat martin baker gasgasbones  (2).jpg

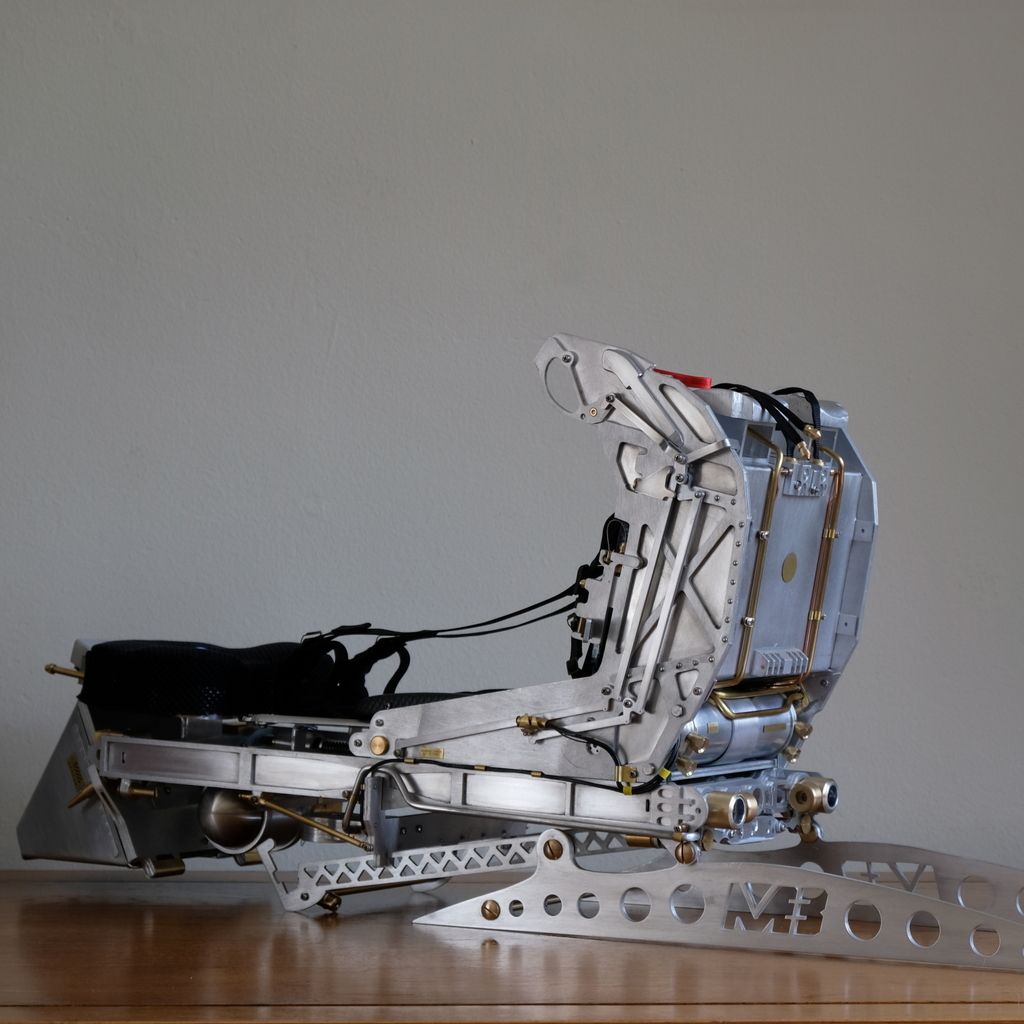

      us16e ejection seat martin baker gasgasbones  (21).jpg

      us16e ejection seat martin baker gasgasbones  (31).jpg



      us16e ejection seat martin baker gasgasbones  (44).jpg



      us16e ejection seat martin baker gasgasbones  (46).jpg



      us16e ejection seat martin baker gasgasbones  (50).jpg

      Edited By Die Hardenedbedway on 24/08/2022 15:24:16

      Advert
      #31412
      Die Hardenedbedway
      Participant
        @diehardenedbedway41166
        #611045
        lee webster
        Participant
          @leewebster72680

          Fantastic! I can't even imagine how to start such a project.

          #611051
          Samsaranda
          Participant
            @samsaranda

            Wow, I am amazed. Dave W

            #611052
            Speedy Builder5
            Participant
              @speedybuilder5

              Looking forward to seeing it in a model and ejecting the pilot (and the aeroplane landing safely).

              Fantastic work.

              Bob

              #611055
              Die Hardenedbedway
              Participant
                @diehardenedbedway41166
                Posted by Speedy Builder5 on 24/08/2022 16:57:41:

                Looking forward to seeing it in a model and ejecting the pilot (and the aeroplane landing safely).

                Fantastic work.

                Bob

                I did ponder for a short while ( about ten seconds ) whether to build a cockpit around it. Then thought better of it surprise

                #611068
                Nigel Graham 2
                Participant
                  @nigelgraham2

                  Lovely work!

                  Good to see such an unusual and complicated subject, too.

                  #611072
                  Steve Crow
                  Participant
                    @stevecrow46066

                    Amazing. What is the scale?

                    Steve

                    #611084
                    Pete.
                    Participant
                      @pete-2

                      Absolutely brilliant, very unique project, did you document the build process? I'd love to see how it came together.

                      #611093
                      Jon Lawes
                      Participant
                        @jonlawes51698

                        Model engineering! This warms the soul.

                        #611121
                        bernard towers
                        Participant
                          @bernardtowers37738

                          beautifully different piece of work, congratulations.

                          #611163
                          Andy_G
                          Participant
                            @andy_g

                            Wow, very impressive!

                            What sort of size is it? I take it that you didn't cut that lot out with a jeweller's saw! wink

                            #611165
                            Die Hardenedbedway
                            Participant
                              @diehardenedbedway41166
                              Posted by Andy_G on 25/08/2022 08:57:27:

                              Wow, very impressive!

                              What sort of size is it? I take it that you didn't cut that lot out with a jeweller's saw! wink

                              Ha no ! I drew out the various components in 2D. From those I made a plywood mock up. When I was happy with the design I sent my files away for laser cutting in ali.

                              Its 19 inches tall

                              #611166
                              Die Hardenedbedway
                              Participant
                                @diehardenedbedway41166
                                Posted by Pete. on 24/08/2022 19:39:28:

                                Absolutely brilliant, very unique project, did you document the build process? I'd love to see how it came together.

                                No. I rarely do. to me its a waste of time, and time away from building ( and other stuff) Im not a blogger or anything so its wasted time. I take snaps of course but its so haphazard as and when. laugh

                                #611167
                                Die Hardenedbedway
                                Participant
                                  @diehardenedbedway41166
                                  Posted by Steve Crow on 24/08/2022 18:47:09:

                                  Amazing. What is the scale?

                                  Steve

                                  Dunno crying

                                  I started building and it came out at around 19 Inches tall. Whatever scale that is

                                  #611169
                                  SillyOldDuffer
                                  Moderator
                                    @sillyoldduffer

                                    Wonderful!

                                    Scaling from the bricks in one photo, it's about a foot high* and appears to be meticulously perfect. Very different from the stuff I knock together!

                                    embarrassed

                                    Dave

                                    Wrong again!  DieHard posted the correct answer while I was typing – 19"





                                    Edited By SillyOldDuffer on 25/08/2022 09:18:17

                                    #611175
                                    Ramon Wilson
                                    Participant
                                      @ramonwilson3

                                      Stunning work Carl and a superb model to be exceptionally proud of. Fantastic resultyesyes

                                      Puts the much smaller 1/32 'highly detailed' resin model seats well into perspective for sure

                                      Tug

                                      #611208
                                      mike T
                                      Participant
                                        @miket56243

                                        Overall height of 19" would appear to be a little under half full size, Wow!!!

                                        #611210
                                        Die Hardenedbedway
                                        Participant
                                          @diehardenedbedway41166

                                          Cheers folks blush

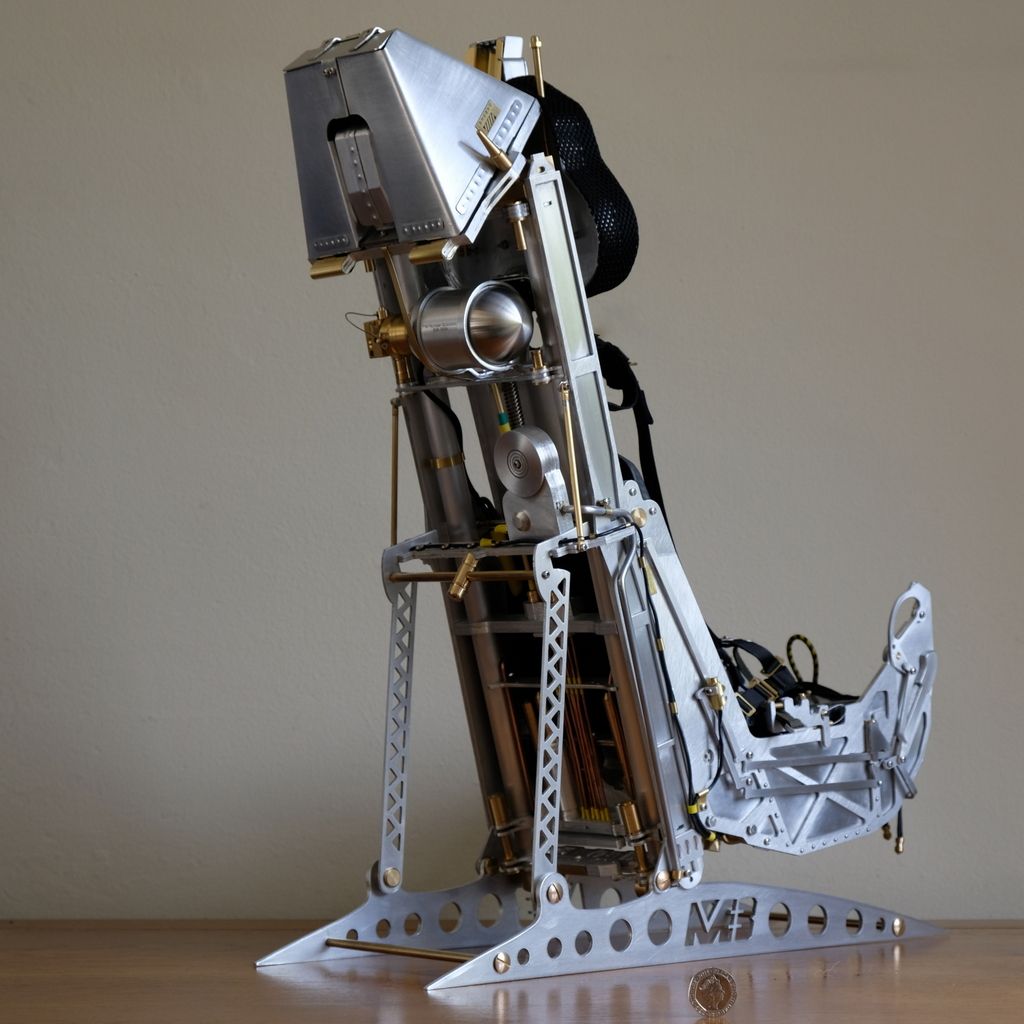

                                          With a 20P piece for some scale referance

                                          us16e ejection seat martin baker gasgasbones  (45).jpg

                                          #611323
                                          Bill Davies 2
                                          Participant
                                            @billdavies2

                                            I did some work for Martin-Baker at Denham a few years ago. Lovely to see their work, impressive factory.

                                            Beautiful model, Carl, very well done.

                                            Bill

                                            #611371
                                            Dominic Bramley
                                            Participant
                                              @dominicbramley60728

                                              Awesome!

                                              Would it work if you put some juice in there? And if so will you dare try?!

                                              Dom

                                              #611667
                                              Die Hardenedbedway
                                              Participant
                                                @diehardenedbedway41166
                                                Posted by Bill Davies 2 on 26/08/2022 14:21:46:

                                                I did some work for Martin-Baker at Denham a few years ago. Lovely to see their work, impressive factory.

                                                Beautiful model, Carl, very well done.

                                                Bill

                                                Cheers Bill. Are you 'in the trade' as it were ?

                                                I was in the RAF for long time as a Survival Equipment Fitter. Although our trade wasnt involved with the servicing of seats we naturarly had a close association with the seat bays with the chutes and life rafts etc.

                                                Ive always been fascinated with these mechanical marvels. Incredible bits of kit.

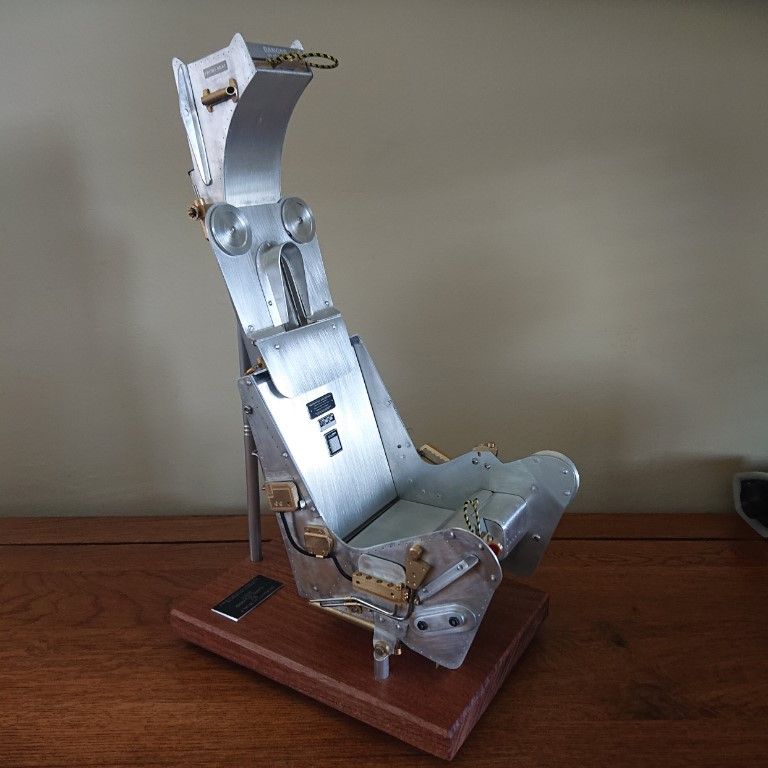

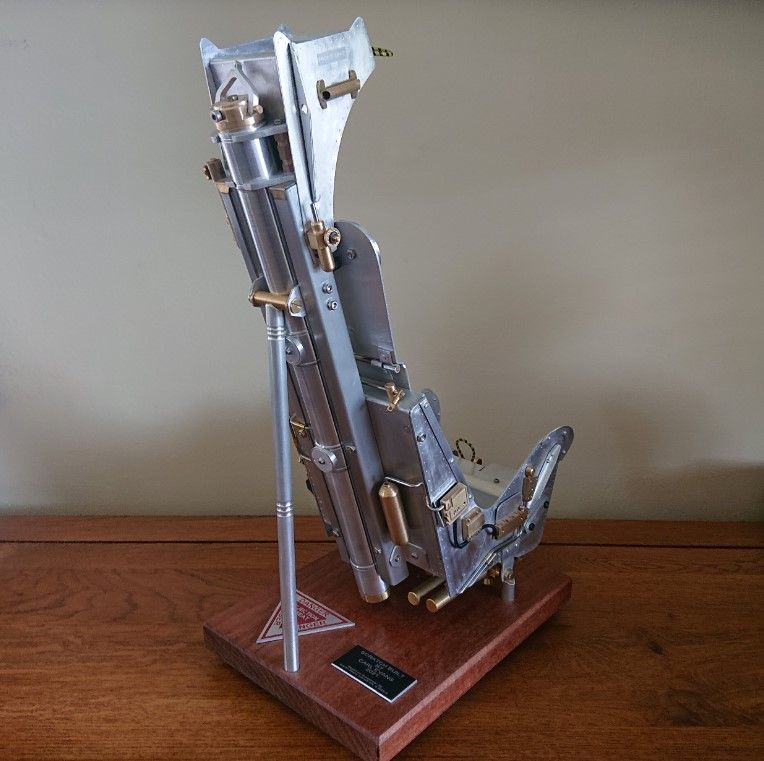

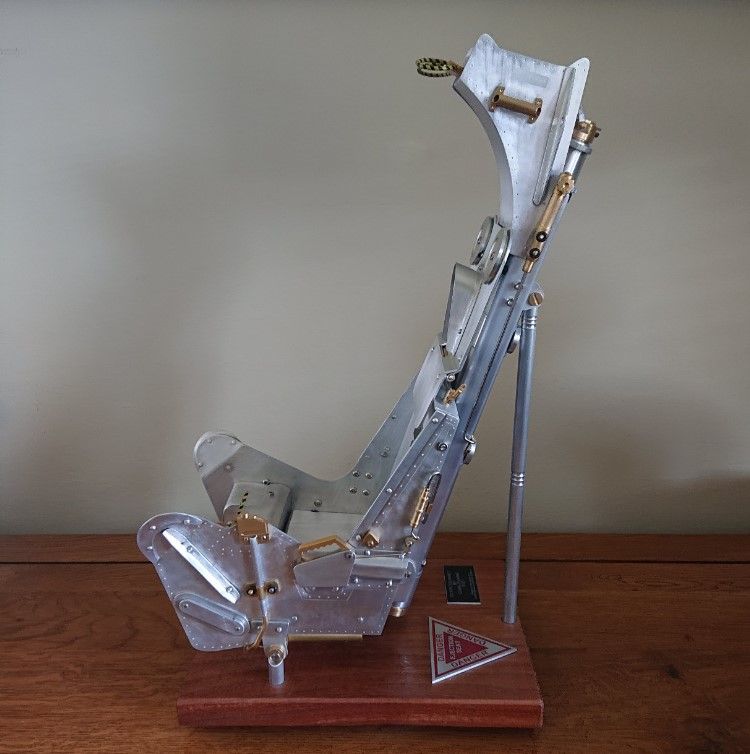

                                                Here is a simpler seat I made based on the Buccaneer seat, the MK6

                                                I fancy re-doing this seat in a larger scale and really going to town on it !

                                                Thank You

                                                Carl





                                                #611737
                                                Circlip
                                                Participant
                                                  @circlip

                                                  Stark difference of "bring your own cushion" on the Brit seat. Surprised there's no cup holder on t'other, but both unbelievable modelling skill. Truly superb.

                                                  Regards Ian.

                                                  #611760
                                                  Mike Poole
                                                  Participant
                                                    @mikepoole82104

                                                    Lovely work Carl, living next to Chalgrove airfield I have seen a few seats test launched from Martin Bakers Meteors over the airfield. I guess that once deployed they become scrap but probably a small price to pay for the survival of the crew.

                                                    Mike

                                                    #611761
                                                    Jon Lawes
                                                    Participant
                                                      @jonlawes51698

                                                      I've worked with a few 'Squippers over the years, an under appreciated trade. They can turn their hand to anything.
