Unidentified Tool, similar to a ‘push-pin’

[Mike DonnerstagParticipant @mikedonnerstag]

[Mike DonnerstagParticipant @mikedonnerstag]

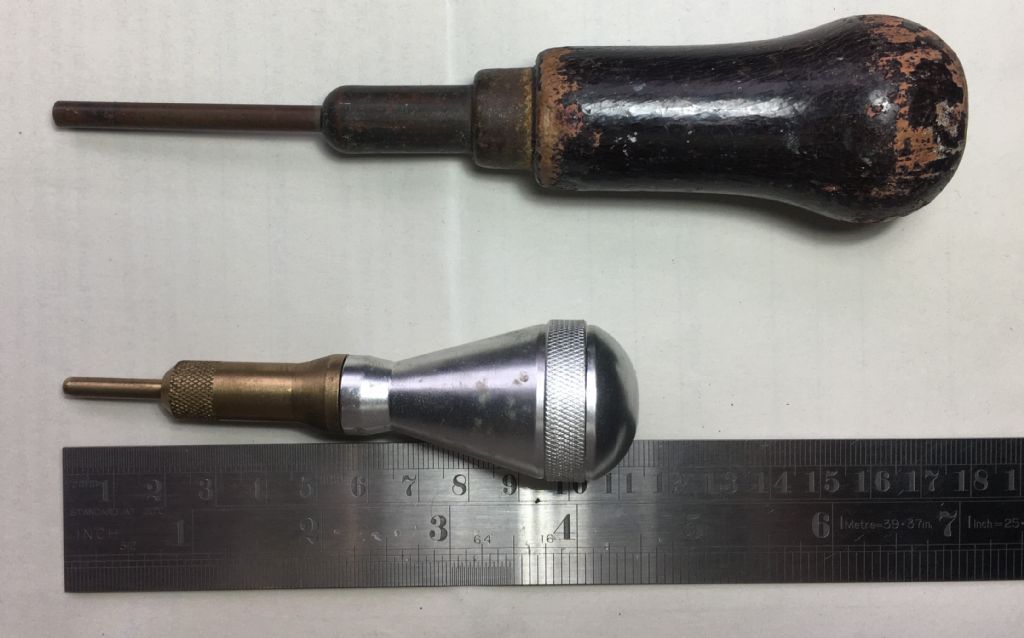

Below is a photograph of a tool I can't identify (the one with the aluminium handle), underneath a tool that seems to operate in a similar way that is used to push panel-pins into wood, known as a 'push-pin'. Unlike the push-pin, the aluminium-handled tool has a central plunger that is flush with the sprung tube, making me think it is for a different purpose.

Does anyone recognise what this is (the aluminium-handled tool, that is)?

Cheers,

Mike

Edited By Mike Donnerstag on 18/12/2022 21:14:18

[Clive HartlandParticipant @clivehartland94829]

This item is used by Beekeepers making up frames to push the frame nails into position before hammering them in.

[john halfpennyParticipant @johnhalfpenny52803]

Surely for pushing panel pins below the surface after they have been knocked flush, or making a starting hole for a panel pin( if I have understood your description Mike)

Edited By john halfpenny on 18/12/2022 21:35:49

[Mike DonnerstagParticipant @mikedonnerstag]

I see – so the top (wooden-handled) one is for pushing the pin in, and the bottom (aluminium-handled) one is for sinking the pin head below the surface?

[DMRParticipant @dmr]

It might say BICC Burndy on it somewhere and it is for extracting pins and sockets out of small connectors. It's obsolete now as things are smaller and not alterable. That's progress. The pins (or sockets) for the plug are crimped to the wire ends and inserted into the body, retained by an outward facing clip on the pin. To extract a pin the tool (to be exact – it's outer tube) is pushed down the side of the pin to push the clip away from its retaining surface and further pressure brings the inner rod down onto the pin pushing it out of the moulding (the plug body). It works on the free wired plug or the socket on the instrumentation.

[Mike DonnerstagParticipant @mikedonnerstag]

Many thanks DMR – that explains it!

[Andrew TinsleyParticipant @andrewtinsley63637]

Another beekeeper here. I have the same tool and use it as Clive describes.

Andrew.

[Robert Atkinson 2Participant @robertatkinson2]

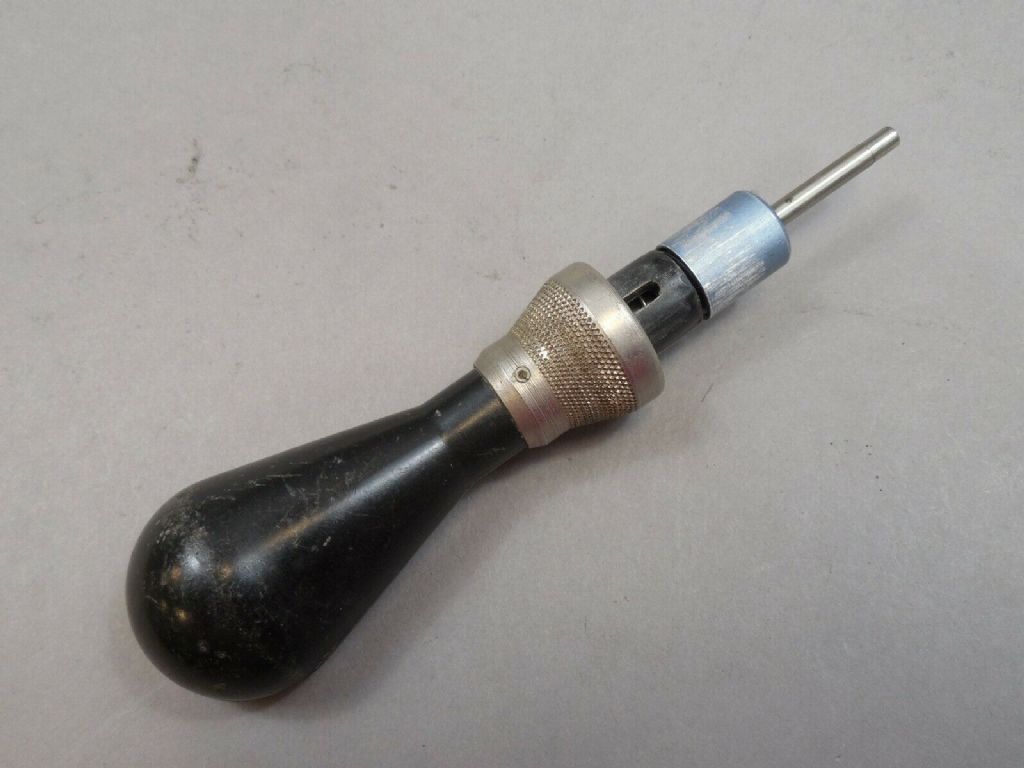

While it does look like a contact extraction tool they normally have a fixed sleeve and separate actuator for the pin.

Note collar and slot allowing it to connect to the pin. The pin extends well beyond the sleeve. They are still used:

https://www.dmctools.com/oscar/catalogue/drk20_1424/

I think the OP's tool is a push-pin with a broken off sleeve. There is no need for a sleeve on a flush pin.

Robert G8RPI



Edited By Robert Atkinson 2 on 19/12/2022 10:37:21

[Mike DonnerstagParticipant @mikedonnerstag]

Many thanks all – I'll go with the beekeeper's tool then.

Mike
