Same as I did the last one described here cut with the "Armstrong" Slotting head, well in fact as it was smaller MOD1 rather than MOD1.75 I did not predrill the waste material out.

Start to discuss it in this thread and then carries on down the page and over to the next for video of working gearbox.

[Mark RandParticipant @markrand96270]

Aha. Thanks!

[JasonBModerator @jasonb]

Looks like all the bits I designed to convert the RMC type to 4-stroke work OK

[Neil WyattModerator @neilwyatt]

Posted by Buffer on 03/02/2020 21:50:31:

Finally got the coal doors fitted to my tender

I'd lock my door and keep the lights on tonight if I were you…

Neil

[John HinkleyParticipant @johnhinkley26699]

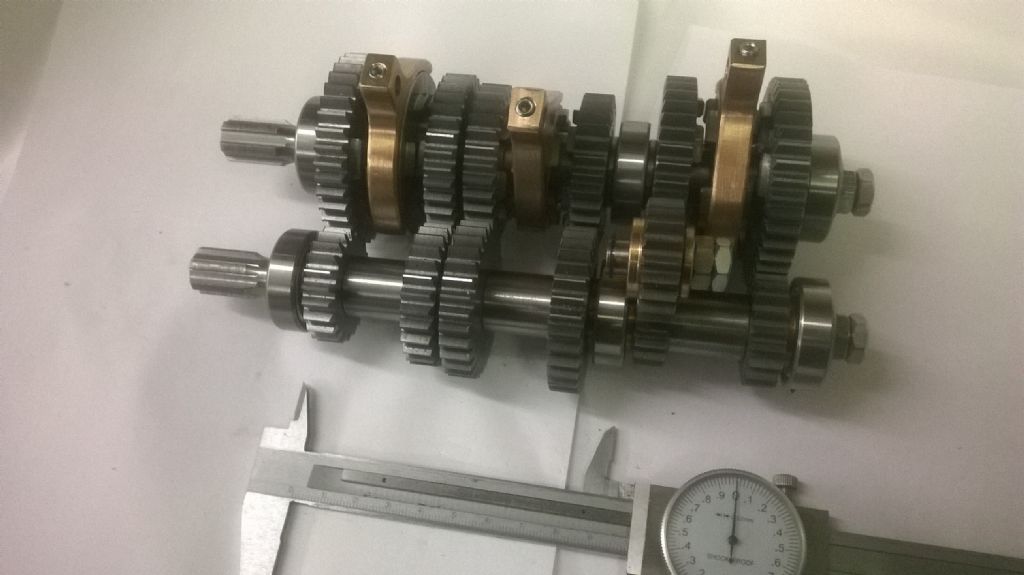

More progress on my gearbox. Today I had the first trial assembly of the input and output shafts. I'm glad to report that, with a little bit of fettling to remove the odd burr, it all came together satisfyingly well. I have uploaded this photo to show the assembly resplendent on th bench. The caliper is open to 100 mm to give an idea of scale. (Miniature it ain't!)

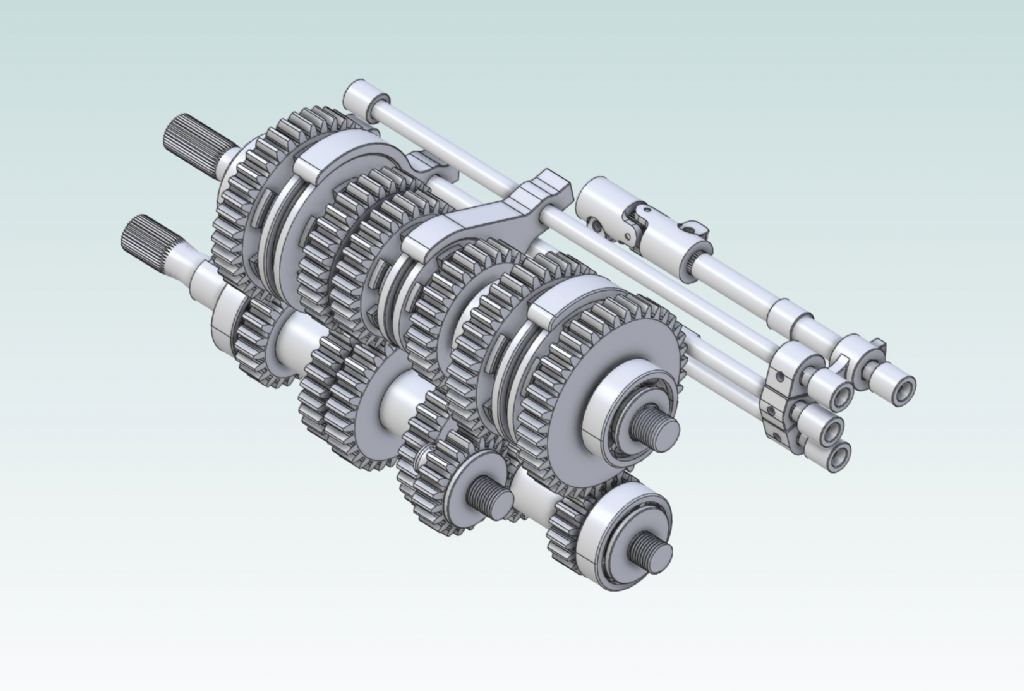

For comparison, this a screen grab from the Alibre Atom 3D design:

John

[Ian S CParticipant @iansc]

In our metal work class's at Tech in the early 1960s we were told that imperial mics would soon become G clamps. it never happened here.

Ian S C

[Mark Gould 1Participant @markgould1]

We had a maintenance day today and yesterday. Took the complete table off our FB-2 and cleaned the X and Y axis leadscrews, nuts, gibs and ways. Put it all together and adjusted the backlash out. Also completely cleaned 3 chucks and gave the S7 a good spa day. Replaced the felt wiper, oiled everything and got her looking like new again.

Feels good!

[Richard S2Participant @richards2]

Progress (a little) on the 1" scale Water Cart

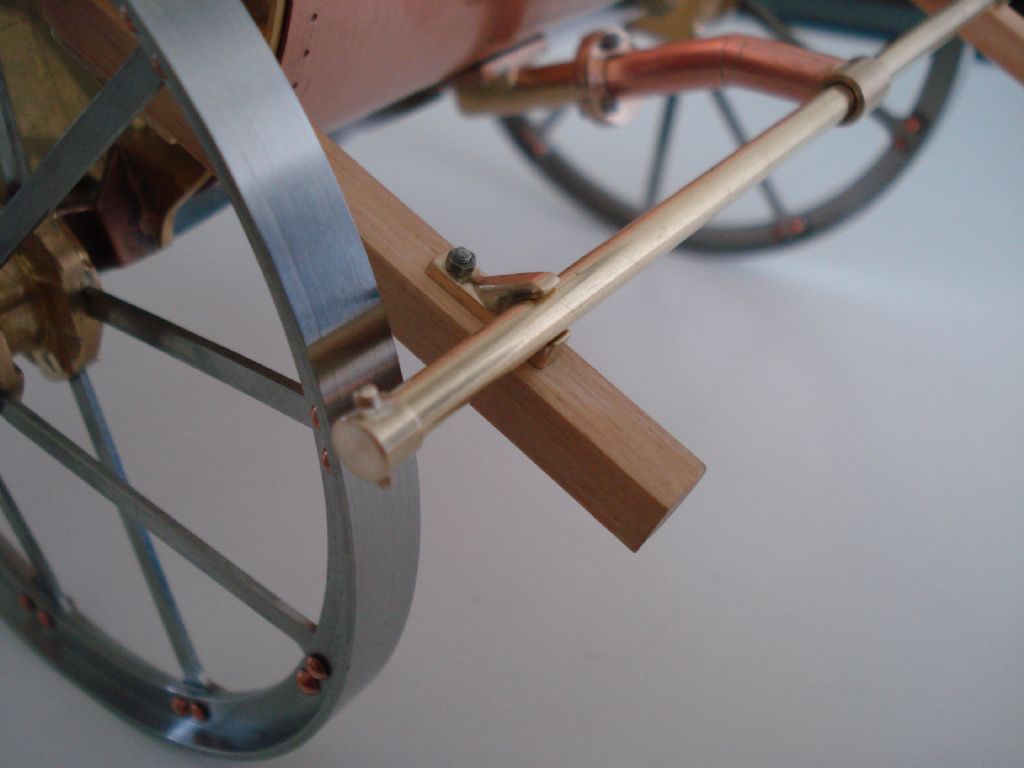

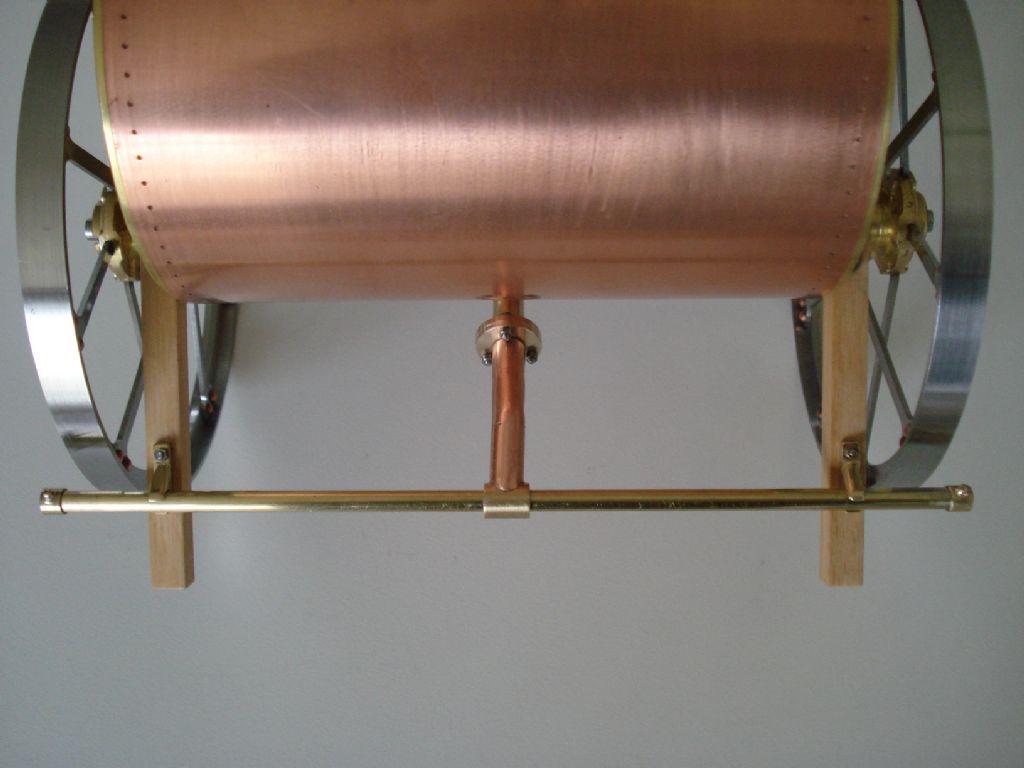

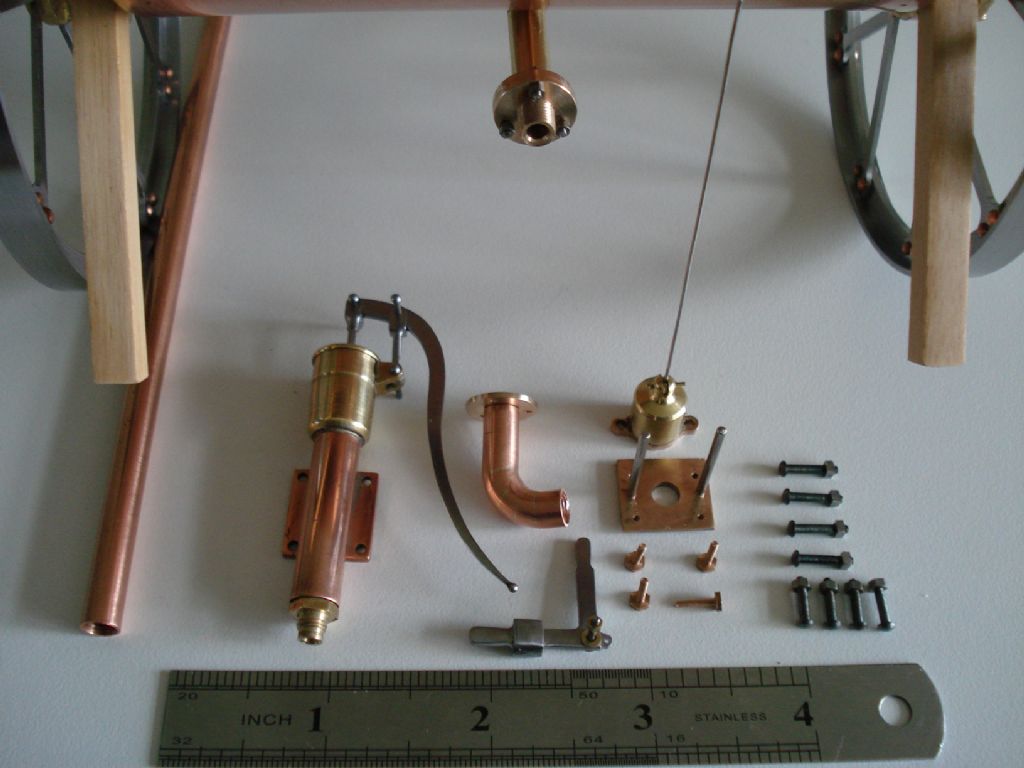

Trial fit of the spray bar and fittings today. I knew I would find a use for a section of a 1960s car aerial. De chromed hard brass tube, it was just the right size (5/32&quot.

Have also managed to keep near to the original design of the valve (metal to metal). –

[Gray62Participant @gray62]

Got a bit more work done on the 4 facet drill grinding attachment for my wetstone sharpener today, machined up the drill clamp and did a trial assembly before finessing it.

Not too happy with the guide bar bridge, it slipped in the vice because I was too lazy to swap the jaws so there are a couple of marks on it, will probably remake that at some point but other than that everything fits together nicely and operates smoothly.

[Johnboy25Participant @johnboy25]

Posted by Buffer on 03/02/2020 21:50:31:

Finally got the coal doors fitted to my tender

When I saw this I had to check the date wasn’t April 1st…

[JasonBModerator @jasonb]

Can you tell what it is yet?

[BazParticipant @baz89810]

Oscillating engine with a form of reversing gear?

[JasonBModerator @jasonb]

That's it, having recently repaired a Mamod traction engine for someone I thought I would see if I could come up with a similar reversing method for a simple engine.

[duncan webster 1Participant @duncanwebster1]

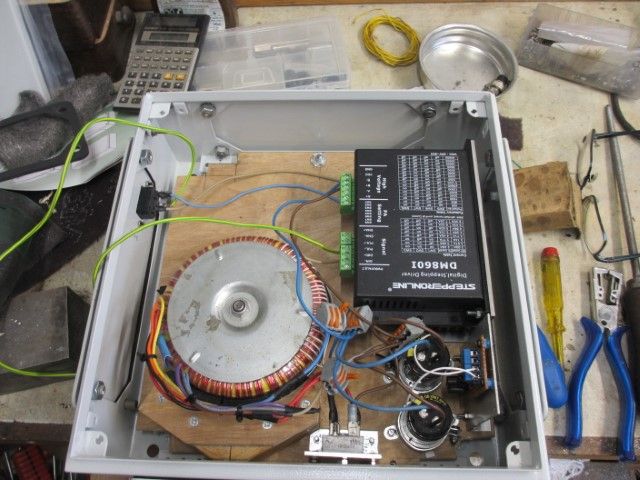

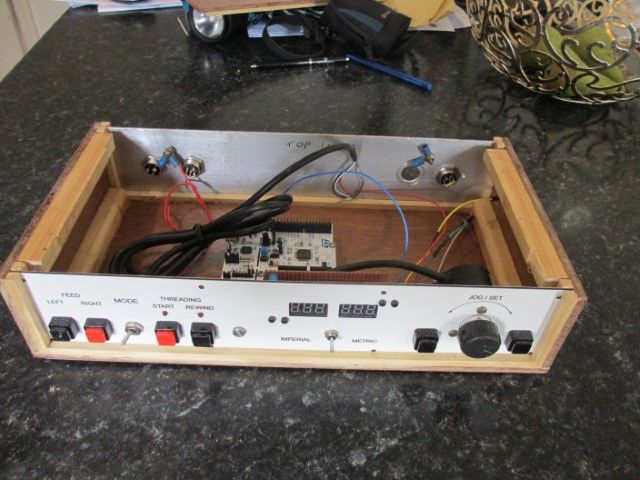

Over the last couple of weeks I've finally finished off my ELS fitted to a myford 254. Not the one being described elsewhere,this is the Joe Noci version.

I'd like to publicly thanks Joe for patiently responding to my multitudinous e-mails, most of which were needed because of my own ineptitude.

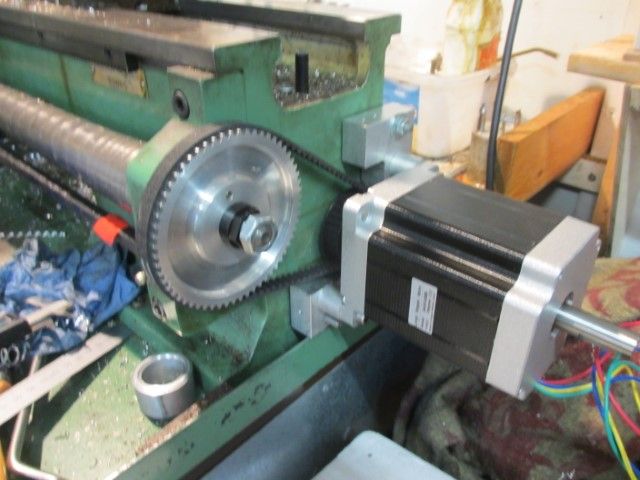

I'll now be able to cut all those imperial threads which have been such a pain beforehand. I'll probably never recoup the time I've spent, but it was educational and fun. I've attached some pictures. All I need to do now is make a belt guard

[Ian Skeldon 2Participant @ianskeldon2]

Looks excellent Duncan, hope it works well for you.

[Neil WyattModerator @neilwyatt]

NIcely done, Duncan.

If you want to send me a short description and a few hi-res photos we could feature it in MEW, with due acknowledgement to Joe, of course!

Neil

[duncan webster 1Participant @duncanwebster1]

Neil, I'll send you an e-mail tomorrow

[Joseph Noci 1Participant @josephnoci1]

Duncan, I see from the photo the stepper HAS an extension shaft, so a rattle damper is easily fitted.

No doubt you will fit one ( a few??) in pursuit of the 3mm pitch @ 500rpm….

Joe

[Martin KyteParticipant @martinkyte99762]

Nice one.

Martin

[David Davies 8Participant @daviddavies8]

NIcely done, Duncan.

If you want to send me a short description and a few hi-res photos we could feature it in MEW, with due acknowledgement to Joe, of course!

Neil

Seconded!

Dave

[Joseph Noci 1Participant @josephnoci1]

Paul White ( a self admitted octogenarian+) also built up one of these ELS systems about a year ago, on a lathe older than he. I seem to remember he did also post something on MEW forum, but, as usual, I am useless with the applicable search engine..Can't find it! Or maybe it was the gear hobber he posted about?

[Frances IoMParticipant @francesiom58905]

Surely Joseph could be persuaded to write up some articles for MEW re the many ingenuous + exceptionally well produced electronic-mechanical workshop adaptations he has shown on this forum over the last few years

[David CauntParticipant @davidcaunt67674]

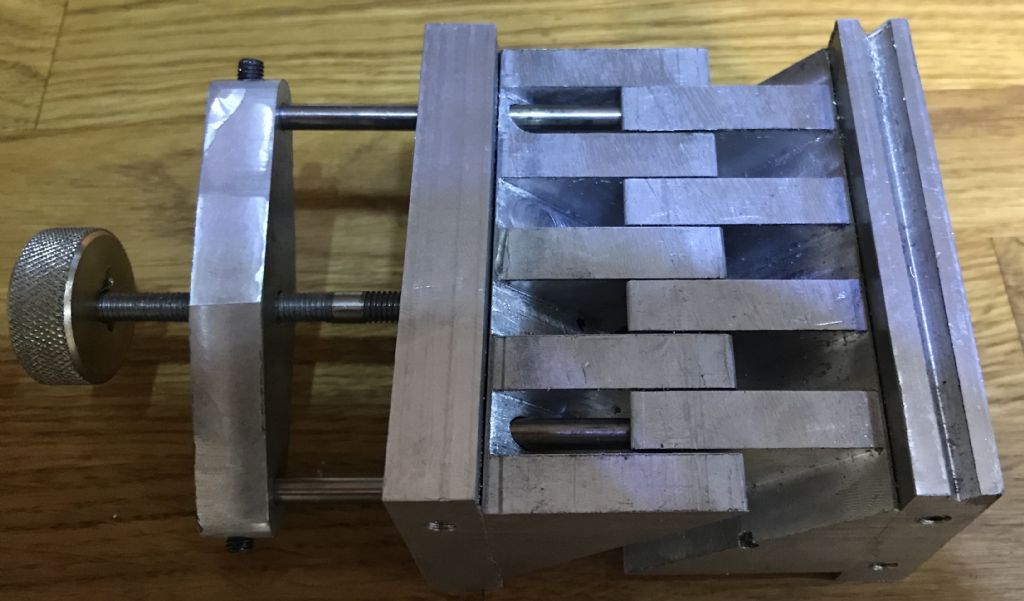

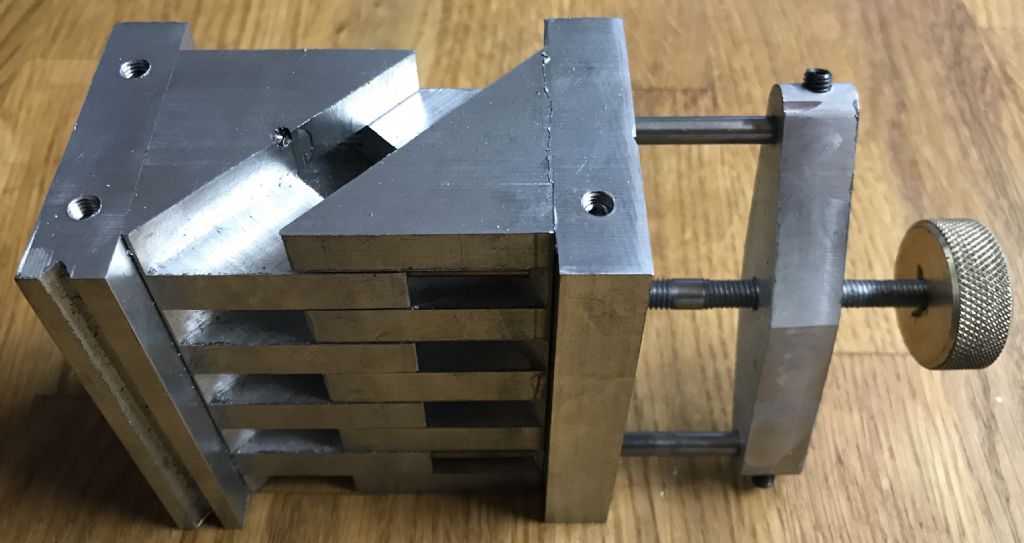

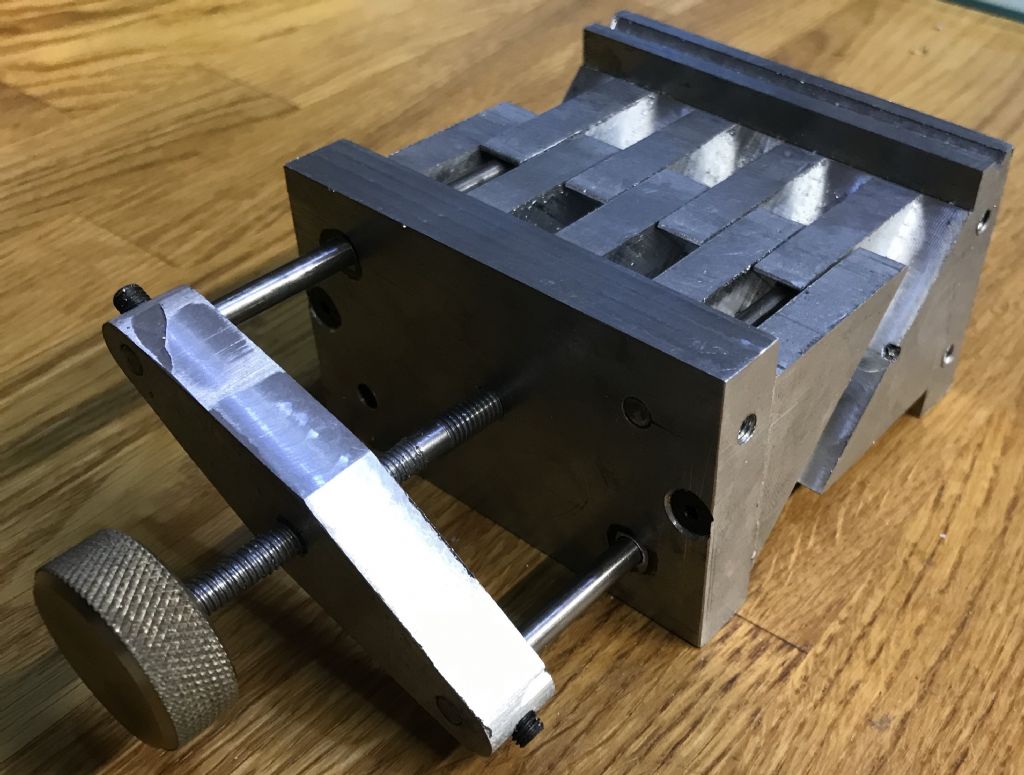

Making this Harold Hall mill sharpener jig has given me 5 firsts.

1. Working with Cast Iron.

2 Turning a taper.

3 Straight boring

4 Boring a taper.

5 Using a slitting saw.

The indexer and guide blades are made but not fitted.

The finish is nothing to shout about but I'm looking forward to using it.



Edited By David Caunt on 26/02/2020 17:22:12

[Jim NicParticipant @jimnic]

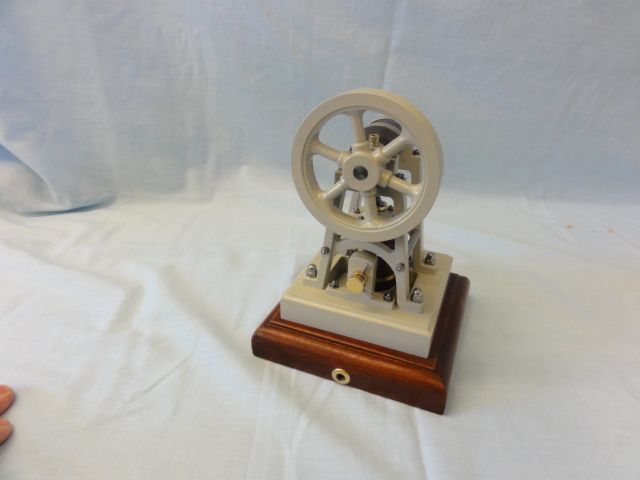

At last I have finished Muncaster's double acting oscillator and when I figure out how to get my u-tube video linked I will post it and some pictures.



Jim

Edited By Jim Nic on 29/02/2020 21:17:57

Edited By Jim Nic on 29/02/2020 21:19:08

Edited By Jim Nic on 29/02/2020 21:19:21

Edited By Jim Nic on 29/02/2020 21:19:34

Edited By Jim Nic on 29/02/2020 21:21:37

[Jim NicParticipant @jimnic]

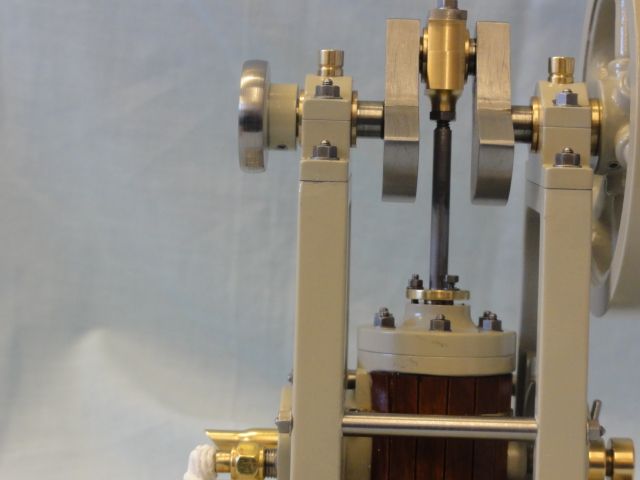

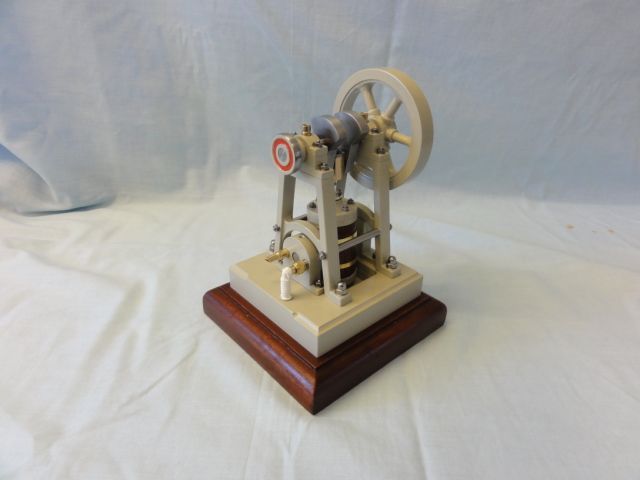

There now follow some still pictures and a vid of my finished Muncaster double acting oscillator:



My thanks to Geoff Walker 1 for generously gifting me some drawings and a cylinder casting for this engine. I hope I have done it justice.

JIm





Edited By Jim Nic on 29/02/2020 21:45:05

Edited By JasonB on 01/03/2020 06:54:57
