Stuart Score – a follow on from 10H

[DoddyParticipant @doddy]

Having made a simple scratch built engine as a newbie to the hobby, my wife bought me two Stuart kits – the 10H and the Score. The 10H is complete so here is my record of how I’m doing so far with the double. I started to make both models together as they share many parts – The following may not be the right way or the best way, but its how I’ve done it



Any comments most welcome – We are all still learning !

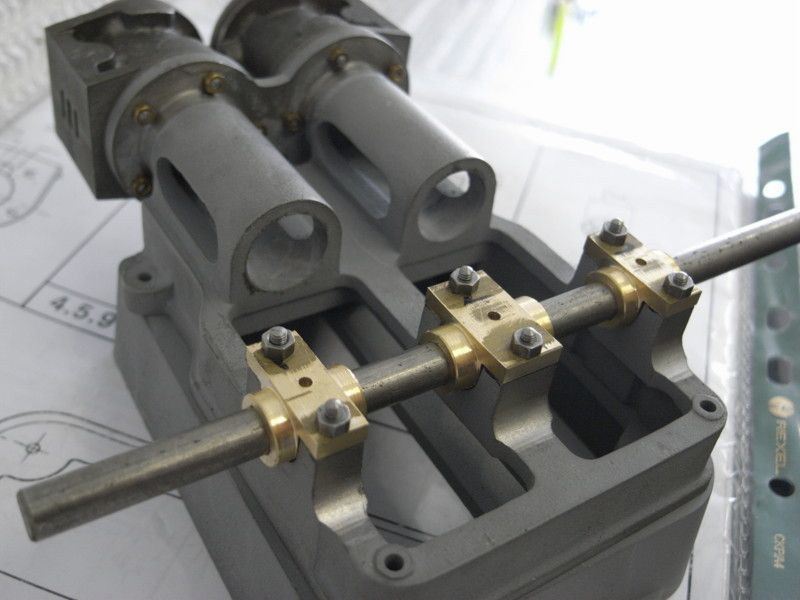

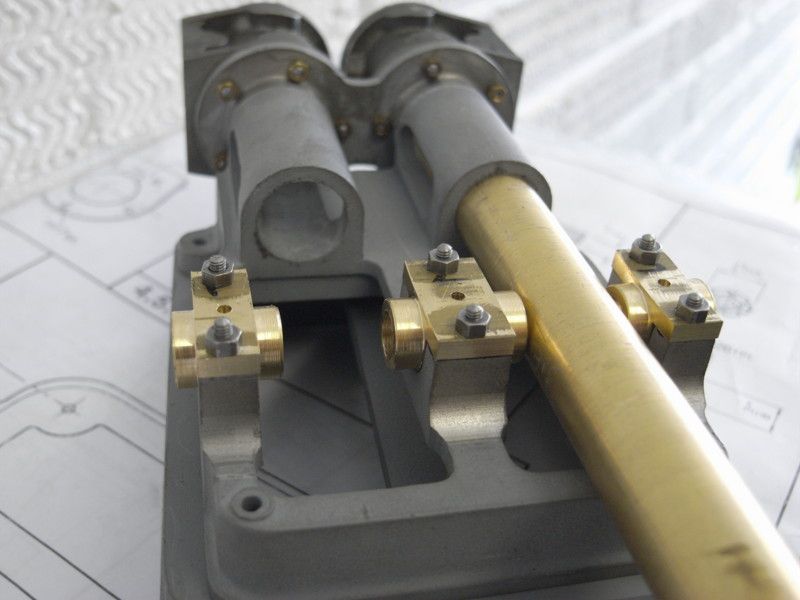

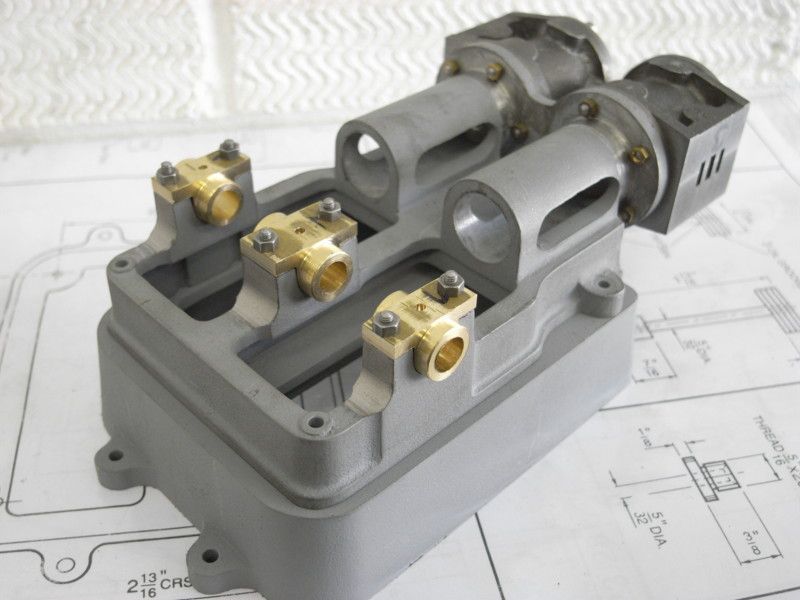

Checking and centralising bearings

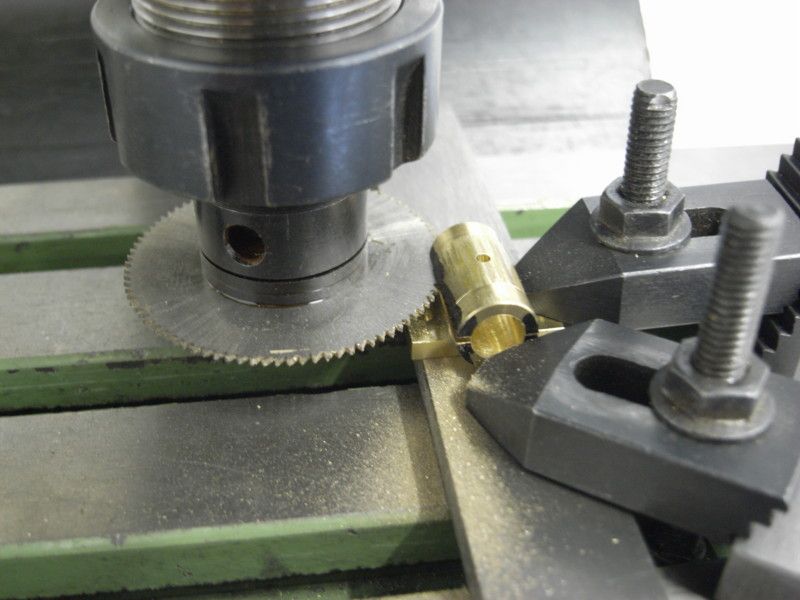

using a slit saw to split the centre bearing – I may solder up the open edges with a brass filler strip and re-bore to close up the large gap left !





[DoddyParticipant @doddy]

[DoddyParticipant @doddy]

Finally got chance to get back in the workshop and finish the build



Crank made up pinned and silver soldered

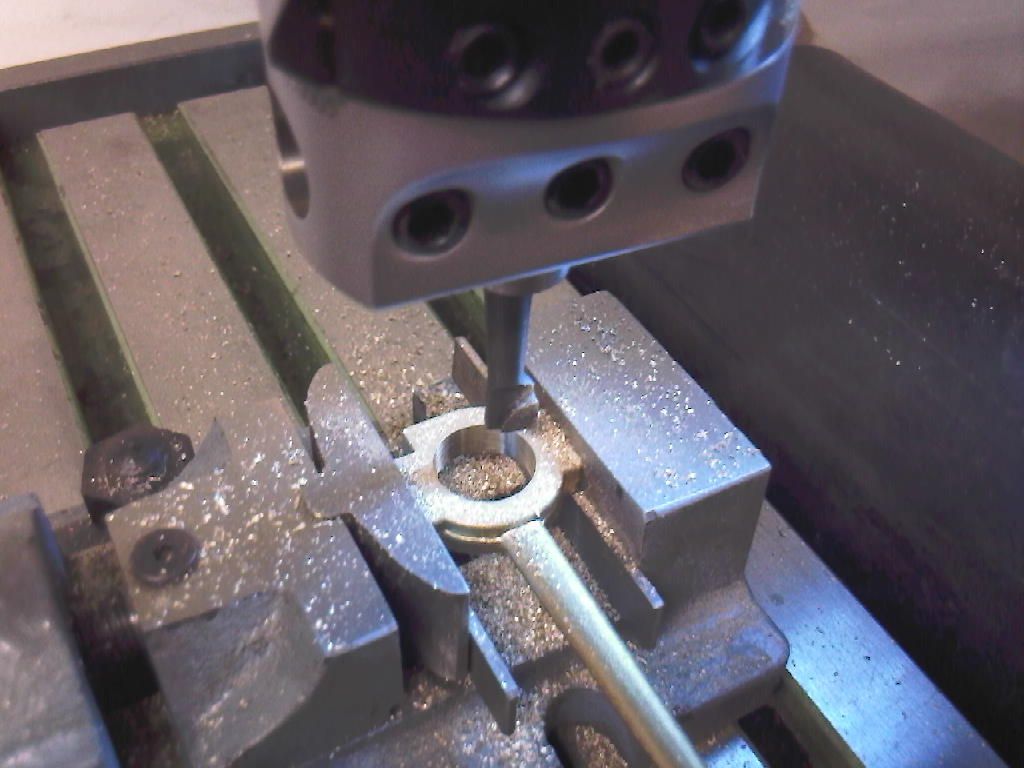

Boring eccentric

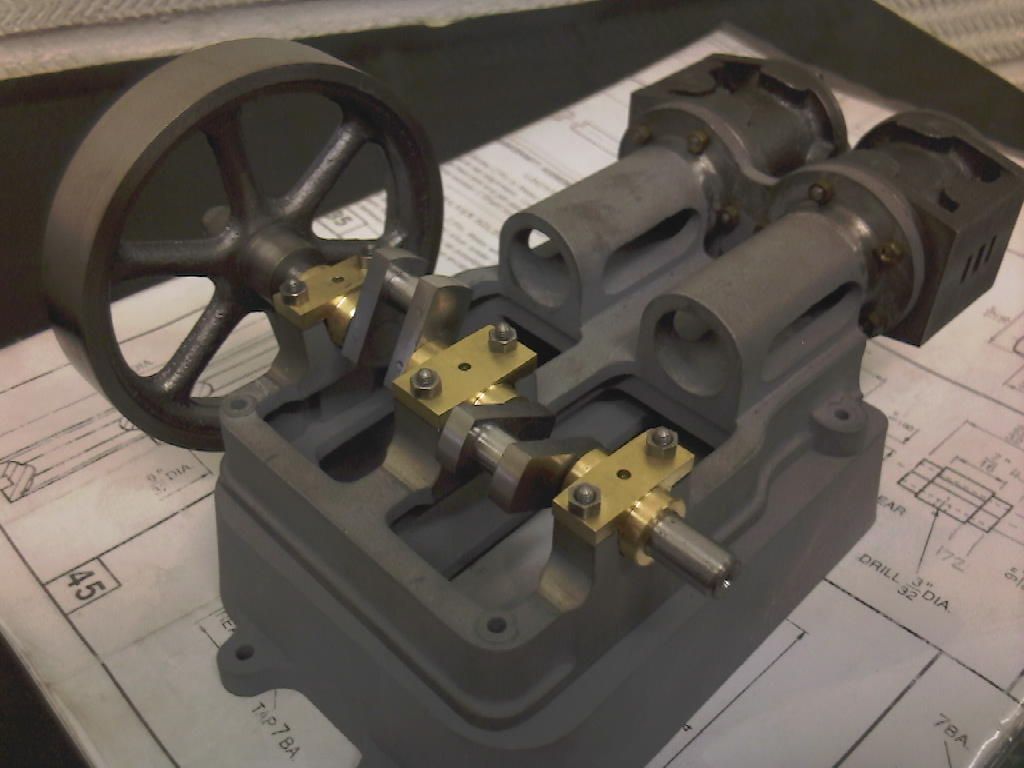

Building up

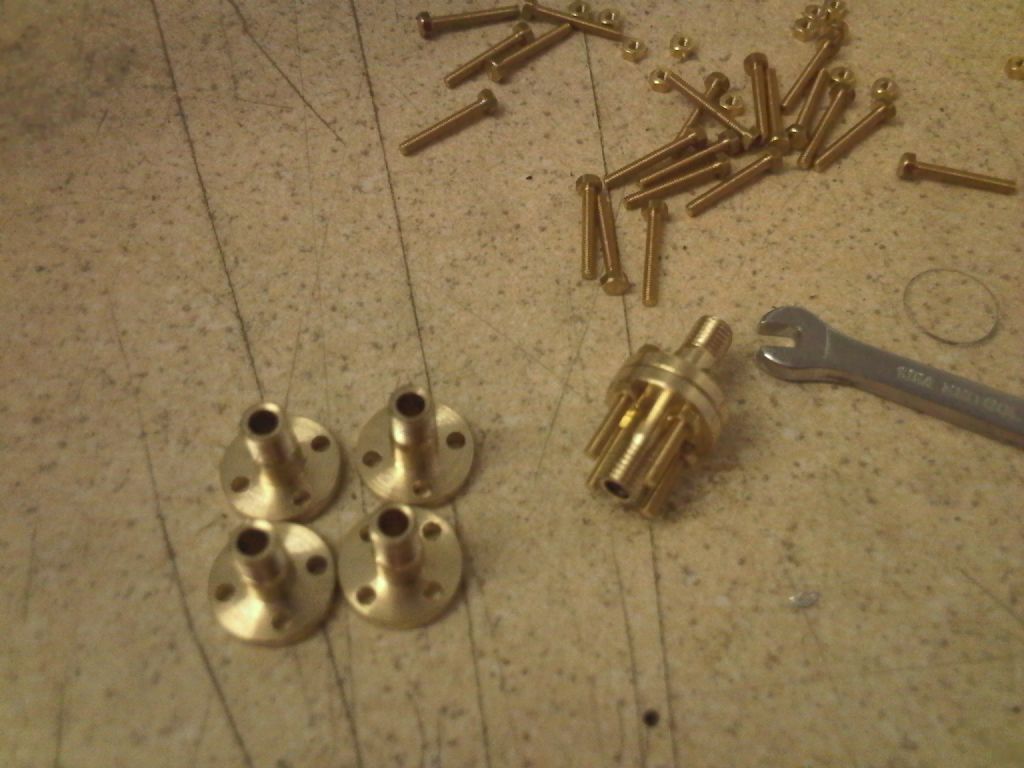

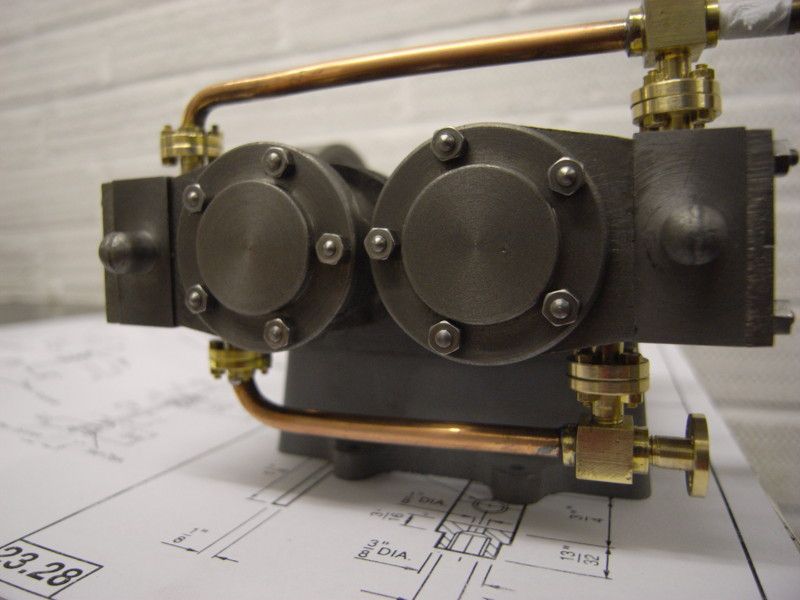

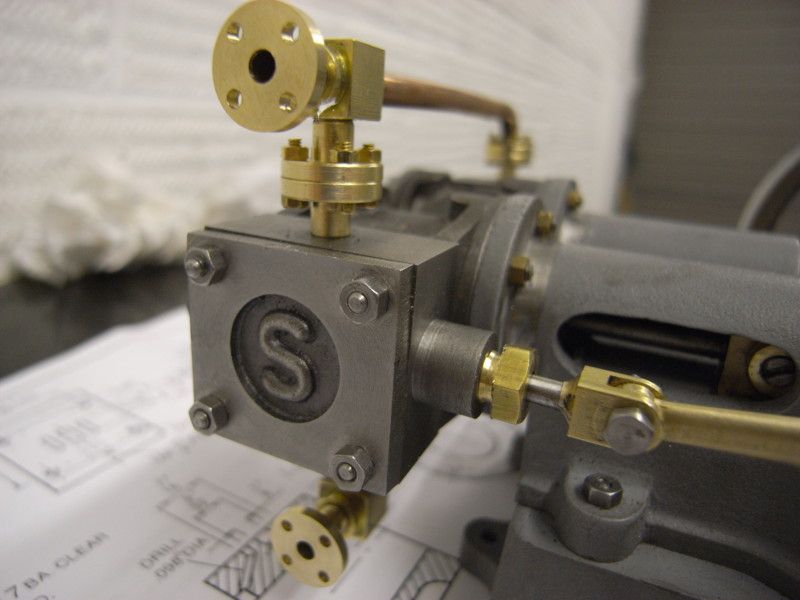

Wanted to pipework to look a little more to scale than the Stuart “off the shelf” ~ so made some flanges and pipework as she’ll only be running on air





oh what fun with 10BA bolts !

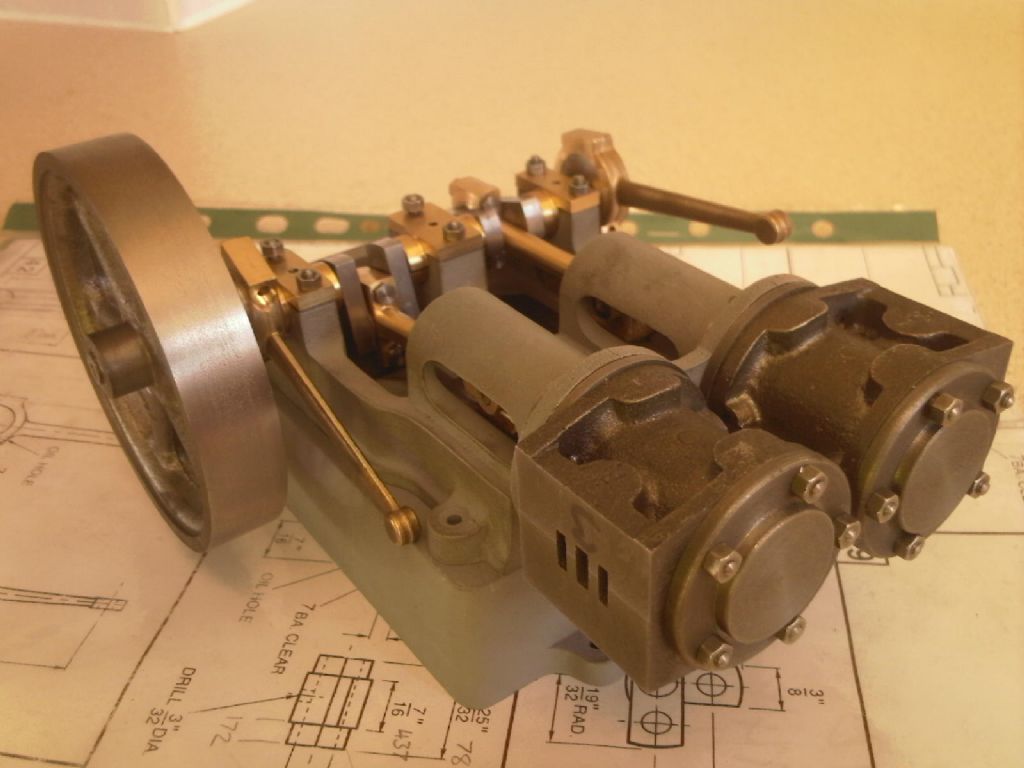

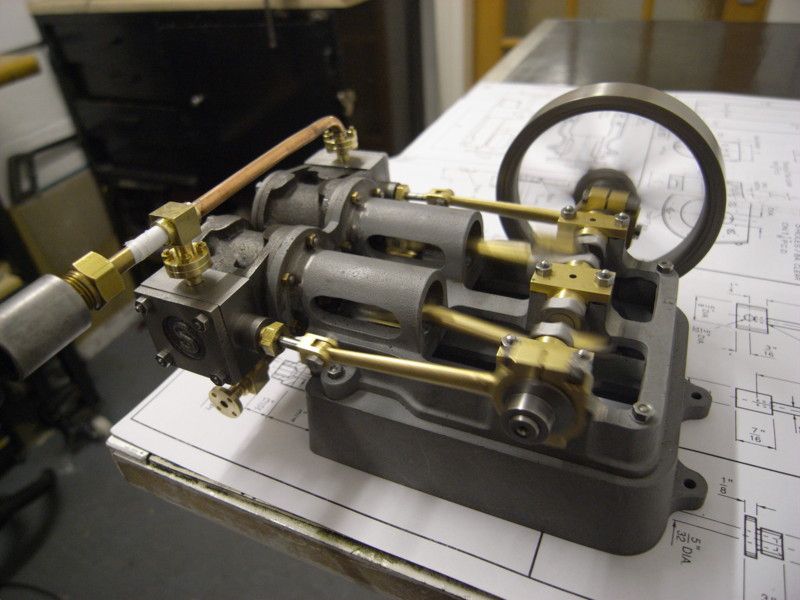

Here she is running on air



Just need to make a base, and then I’ll wait for the warmer weather before painting, not sure if to go for red or green?

[Jeff DaymanParticipant @jeffdayman43397]

Looks great David, especially the pipe flanges. So much better looking than commercial fittings.



Regarding paint, it sure would be nice to see a stuart engine not painted fire engine red or John Deere green.



Blue with orange highlights looks great, so does maroon or burgundy on these engines.



I did see some USA made stuarts with pale green and pale yellow or white trim, they looked very smart.



Up to you of course. Great job so far.



JD

[Ramon WilsonParticipant @ramonwilson3]

Some very good images showing some very nice workmanship – you should be proud of your achievements David, so soon in the hobby.



I’m with Jeff on the ‘traditional’ red or green – you do see far too many but maroon always does go well with smooth shiny steel and brass in my book.

I like the thought of Jeffs suggestion of pale green though.



Congrats on another model – so what’s next then ?



Regards – Ramon

[DoddyParticipant @doddy]

Many thanks, for the coments. Painted my last engine Pale Blue, I too could’t face another British Racing Green. The wife said she’d like red, I’m thinking Brown / Biege but Maroon may be a good compromise.

Next model, I’ve just printeed Gerry OldBoatGuy Beam Engine plans off, including the missing pages. I’ve got most of the materals but no aluminum for the side plates but have some 6mm brass plate!

[DoddyParticipant @doddy]

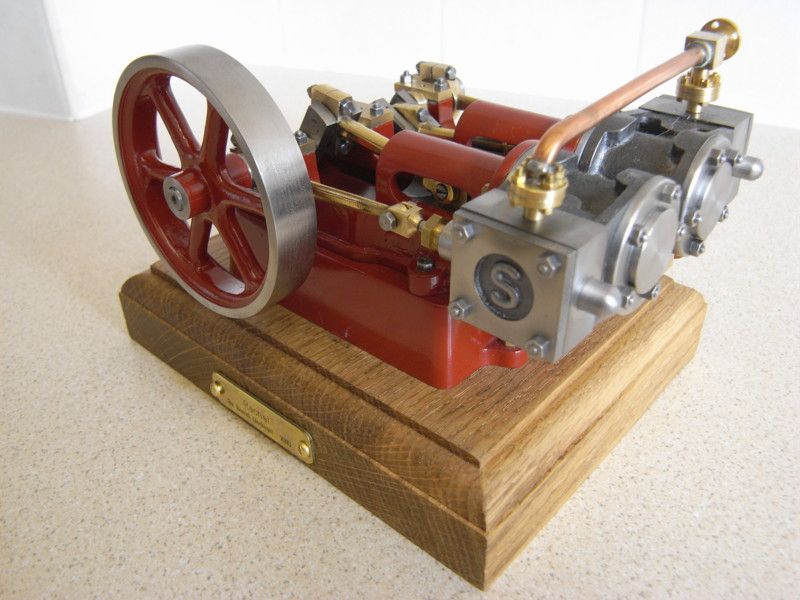

OK ~ so I gave into the wife, I said I didn’t want to paint it red !! she won, well it is named after her
