Stuart No1 valve details

Stuart No1 valve details

This topic has 3 replies, 2 voices, and was last updated 28 March 2021 at 14:22 by Lainchy.

Viewing 4 posts - 1 through 4 (of 4 total)

Author

Posts
28 March 2021 at 12:40 #536694
Lainchy
Participant
@lainchy
We have a built but not fully running No1. Could anyone share the ports face and valve dimensions, or drop me a PM with the details?

Many thanks

Ian
Advert

28 March 2021 at 12:40 #31354
Lainchy
Participant
@lainchy
28 March 2021 at 13:22 #536698
JasonB
Moderator
@jasonb

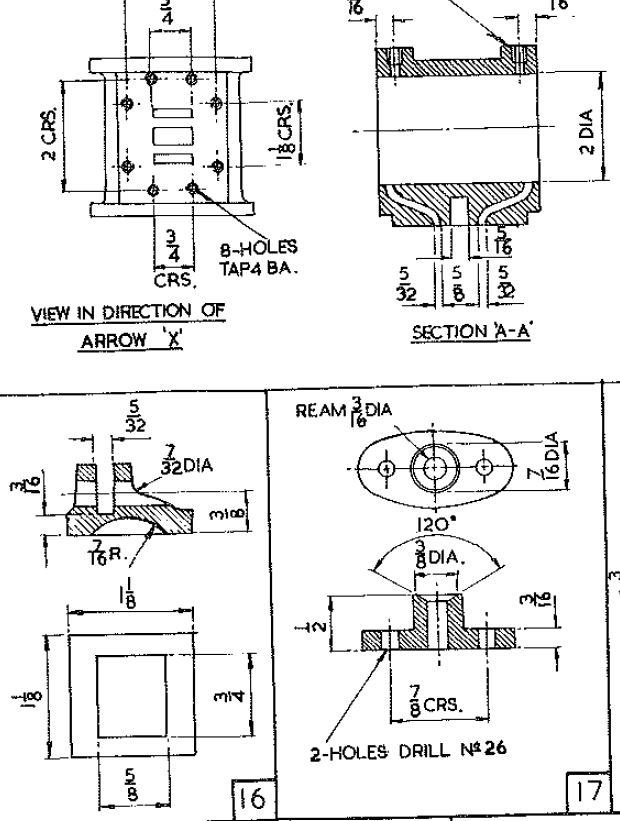

3/16" throw on the eccentric so 3/8" total valve movement, recess under valve can be milled out which is easier than the curved option shown

Edited By JasonB on 28/03/2021 13:23:37
28 March 2021 at 14:22 #536709
Lainchy
Participant
@lainchy
Perfect JasonB. Many many thanks.

That's much appreciated.

Ian
