Steam engine , to start a steam engine

[SteviegtrParticipant @steviegtr]

A small twin cylinder donkey engine, gets the big bad boy running

[SteviegtrParticipant @steviegtr]

Thought this may be of interest to members who like full size steam engines. This one is huge.

Steve.

Huge steam engine

Edited By Steviegtr on 15/02/2021 23:38:20

[Maurice TaylorParticipant @mauricetaylor82093]

Hi, most of the factory that built this has just been demolished and a housing estate is being built on the site.

Maurice

[SteviegtrParticipant @steviegtr]

Posted by Maurice Taylor on 16/02/2021 00:11:52:

Hi, most of the factory that built this has just been demolished and a housing estate is being built on the site.

Maurice

What a shame. Dam houses.

Steve.

[MeunierParticipant @meunier]

Nice find Steve, is that barring engine a full-size double-10-V ?
DaveD

[Michael GilliganParticipant @michaelgilligan61133]

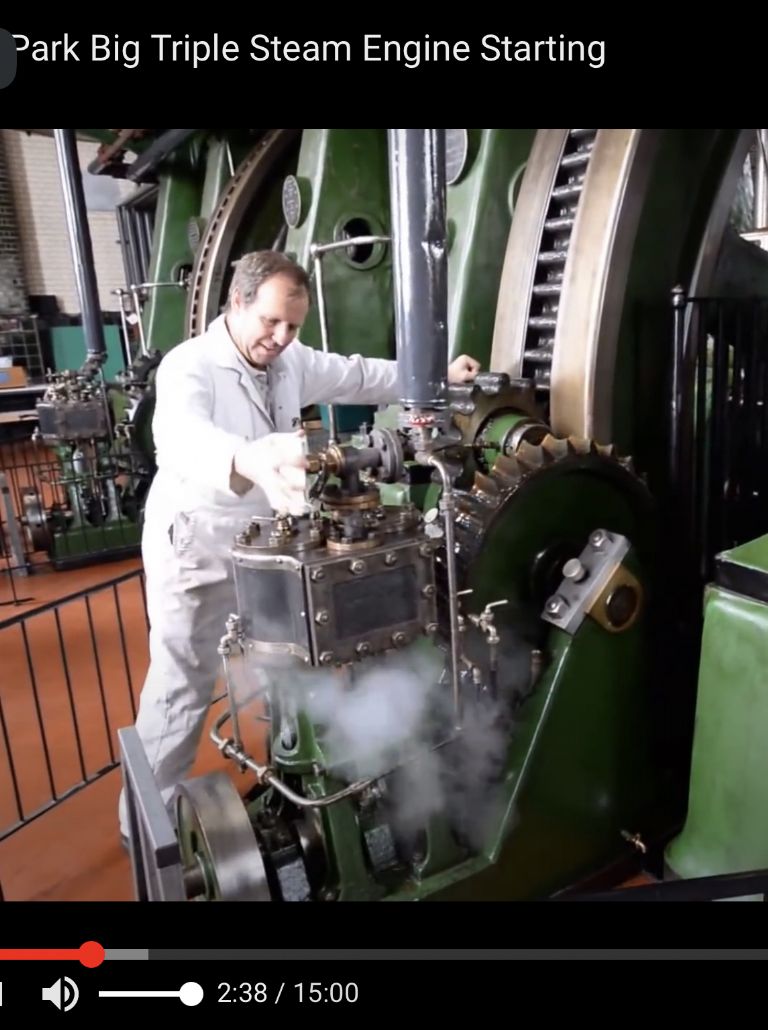

Some interesting gear profiles in use:

.

.

MichaelG.

[old martParticipant @oldmart]

Those teeth on the big wheel look like steel pins, which would make sense for a gear that was not used often.

[Michael GilliganParticipant @michaelgilligan61133]

Posted by old mart on 16/02/2021 21:09:38:

Those teeth on the big wheel look like steel pins, which would make sense for a gear that was not used often.

.

Rather like a giant ‘lantern pinion’ in construction

… but what’s with the gear in the foreground ?

[ assuming it is a gear not a water-wheel !! ]

MichaelG.

Edited By Michael Gilligan on 16/02/2021 21:22:36

[Chris ChadwickParticipant @chrischadwick43059]

Rather like a giant ‘lantern pinion’ in construction

… but what’s with the gear in the foreground ?

[ assuming it is a gear not a water-wheel !! ]

A very, very worn worm wheel.

[old martParticipant @oldmart]

That large worm wheel is driven by a worm on the donkey engine crankshaft. Did you notice that there were two donkey engines, only one was needed.

[Michael GilliganParticipant @michaelgilligan61133]

Posted by Chris Chadwick on 16/02/2021 21:40:38:

A very, very worn worm wheel.

.

That’s what I guessed it must be, Chris … thanks for the confirmation

… hence my use of the word ‘interesting’

MichaelG.

[noel shelleyParticipant @noelshelley55608]

Forncett industrial steam museuum have a huge triple with an almost identical baring engine, The Dover Engine. Noel

[Howard LewisParticipant @howardlewis46836]

Many years ago, there were two large beam engines at Coleham Head in Shrewsbury, which pumped sewage. 114 and 116 gallons per stroke. usually only one engine was in steam at a time. Normally they ran at about ten strokes a minute. "They will do 16, but shakes the whole building"

They were barred over, using a crowbar engaged in the teeth on the 12 feet diameter flywheels.

Although no .longer in active service in happier times one was steamed each week as a museum piece.y

The WaterWorks Museum in Hereford has the oldest operating triple expansion stationary steam engine in Britain. It used to pump water from the River Wye, so that it eventually reached the water tower which supplied water to the city.

Sadly, like The WaterWorks Museum, Coleham Head Pumping Station, it is currently closed, but hopefully, before too long we shall be able to go and visit again.

Howard

Edited By Howard Lewis on 17/02/2021 07:51:17

[JasonBModerator @jasonb]

Michael, photos of a barring engine which better show the wormwheel that is driven by the crankshaft's worm.

And member Phil P's model of one to go with his Corliss

[Michael GilliganParticipant @michaelgilligan61133]

Thanks for the links, Jason

Yes, I get the idea, but the shape of the worm-wheel teeth in Steve’s video was what intrigued me

… As per Chris, last night, I’m happy to believe that they have done some serious work in their time.

MichaelG.
