Spool valve beam engine.

Spool valve beam engine.

This topic has 2 replies, 2 voices, and was last updated 10 November 2015 at 09:56 by Thor 🇳🇴.

Viewing 3 posts - 1 through 3 (of 3 total)

Author

Posts
8 November 2015 at 16:28 #211154
Mike Brett
Participant
@mikebrett89695

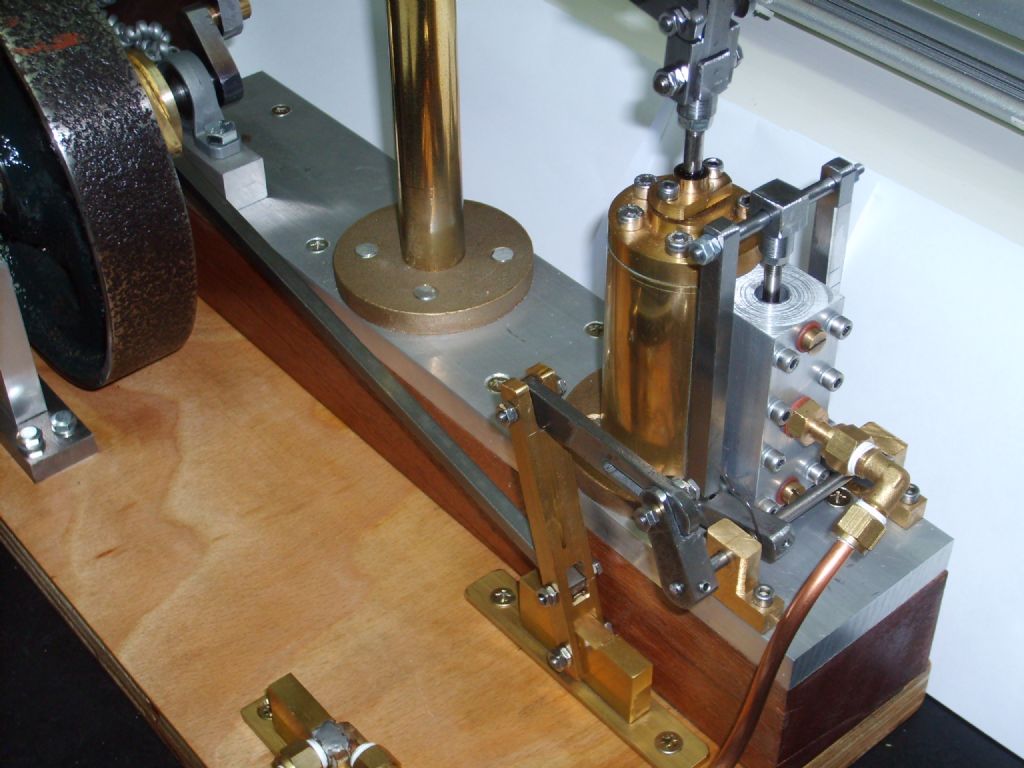

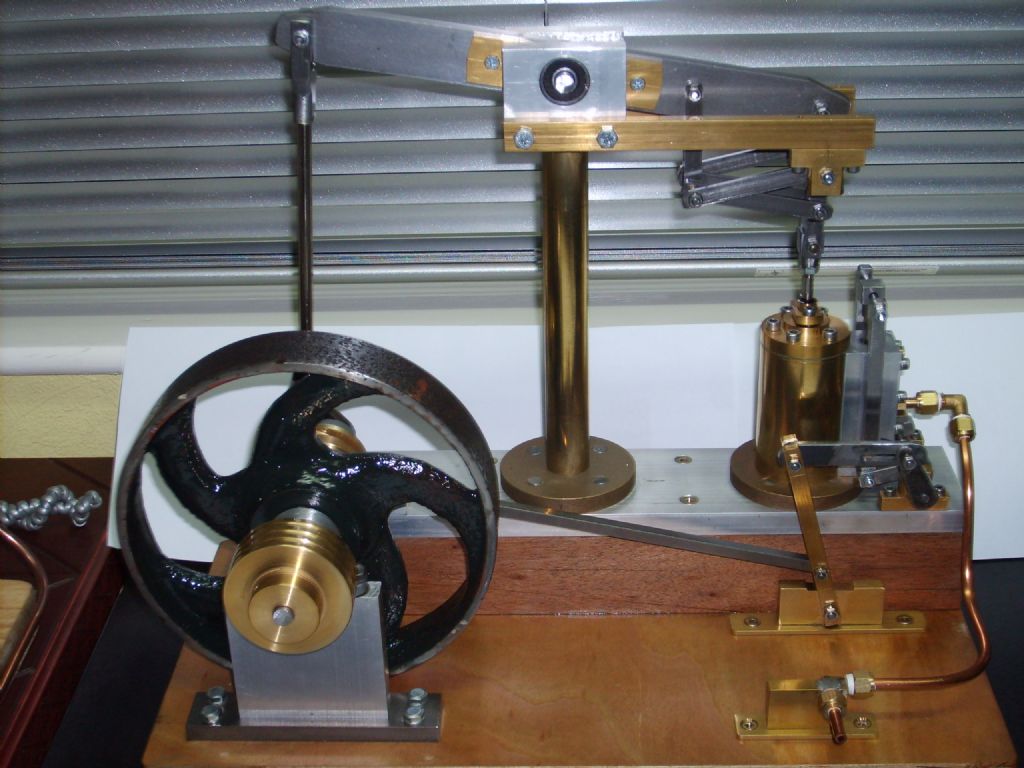

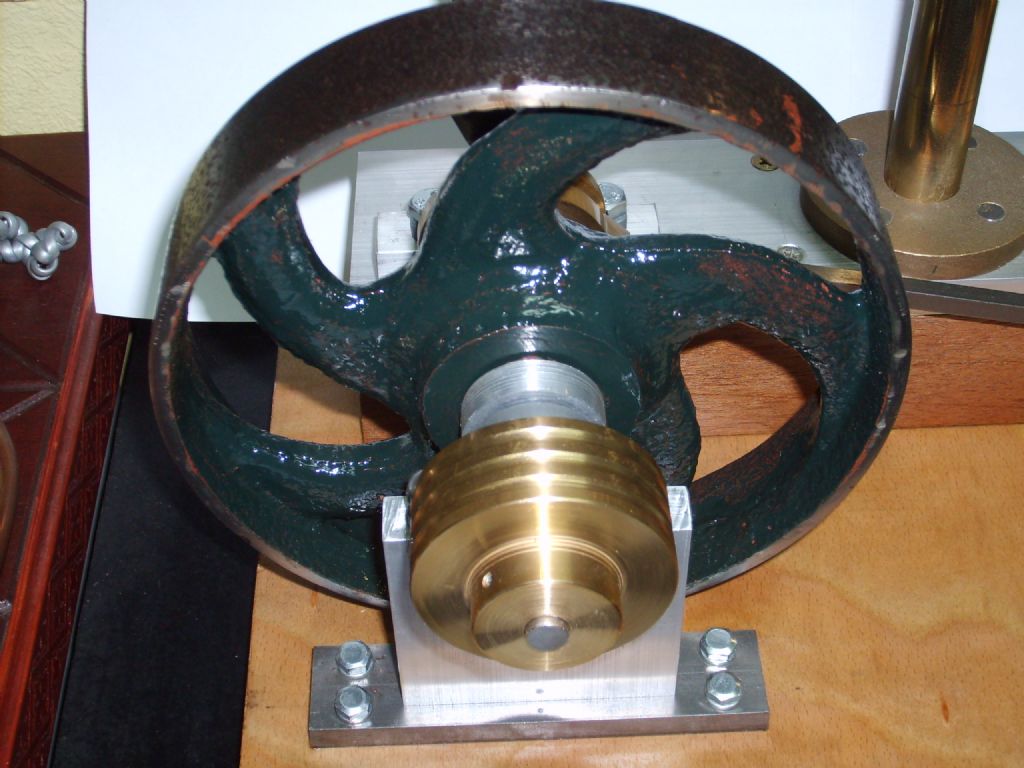

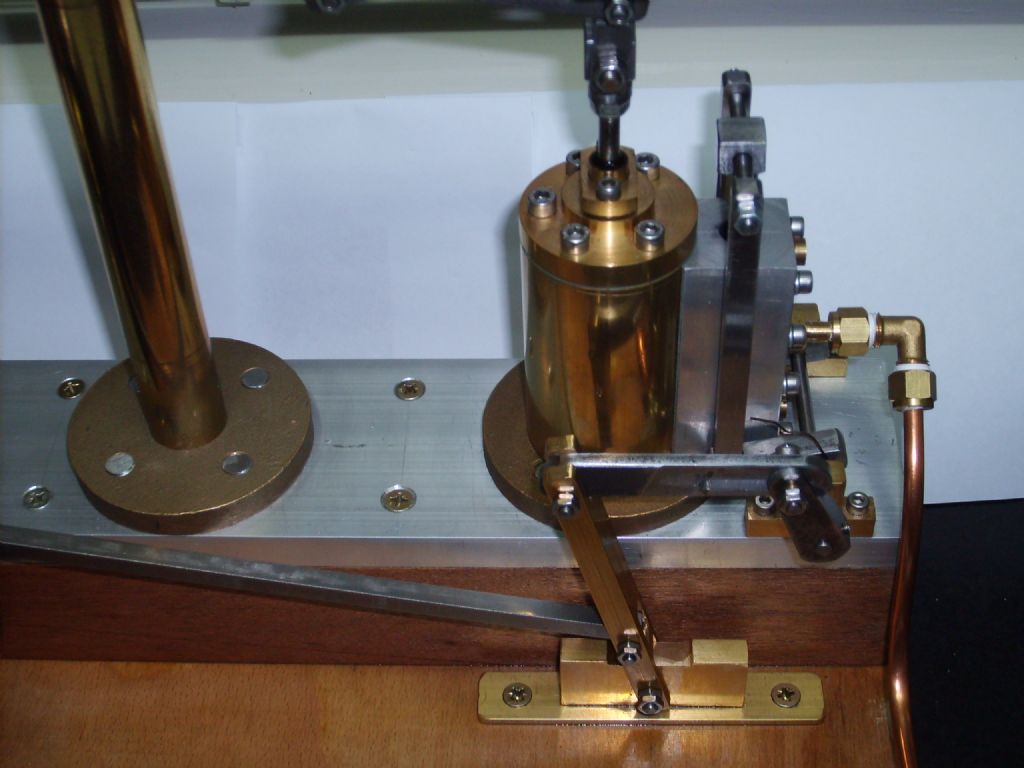

This is my finished beam engine built from bar stock and various recycled bits. The flywheel is machined from an old line drive pulley. The extra bit of linkage on the valve operating mechanism is to delay the valve opening till the piston has reached the end of its travel. This idea works very well and it will run very slowly if desired. Flywheel diameter is 8'', height is 14'', bore is 1'' and stroke is 2 1/2 ''.

Mike
Advert

8 November 2015 at 16:28 #31099
Mike Brett
Participant
@mikebrett89695
Scratch built beam engine.
10 November 2015 at 09:56 #211401
Thor 🇳🇴
Participant
@thor
That's a nice looking engine Mike.

Thor
