South Cheshire ME Society 50th Anniversary Gala Pictures

[Stewart HartParticipant @stewarthart90345]

We held our 50th Anniversary Gala on 8th September it turned out to be a rainy day but every one still enjoyed the day he'rs a few pictures.

[Stewart HartParticipant @stewarthart90345]

[Neil WyattModerator @neilwyatt]

Posted by Stewart Hart on 13/09/2018 08:43:03:

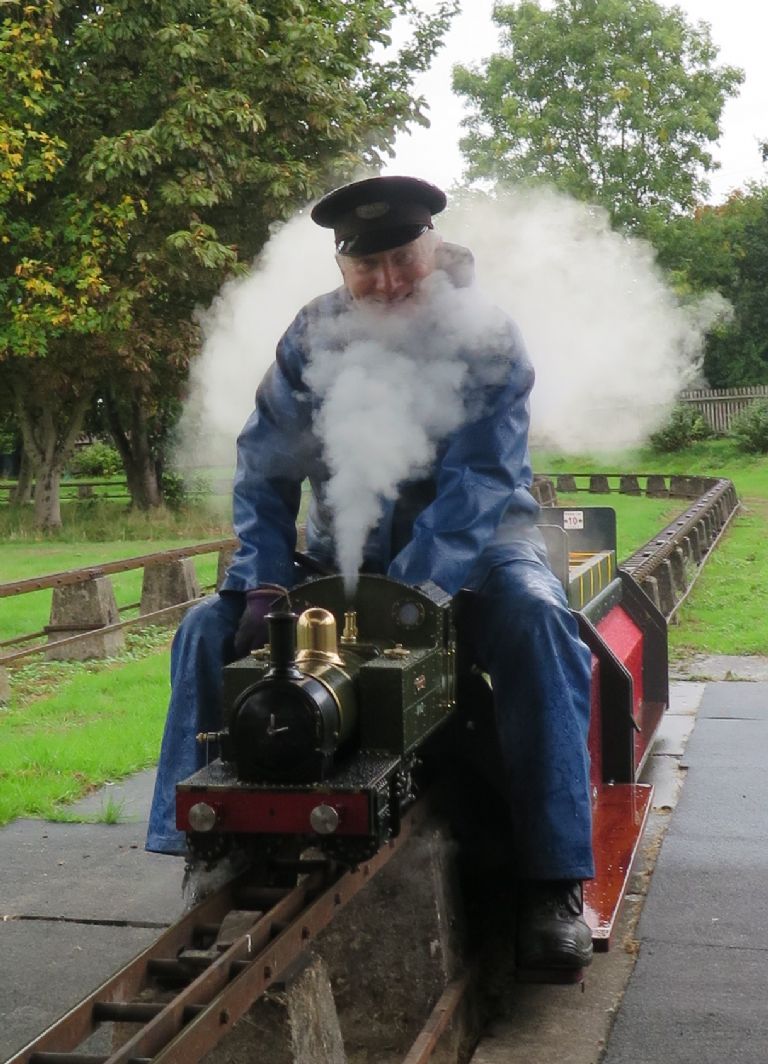

Blimey! It's Dumbledore driving the Hogwarts Express.

Fine beard that man

Neil

[Mick B1Participant @mickb1]

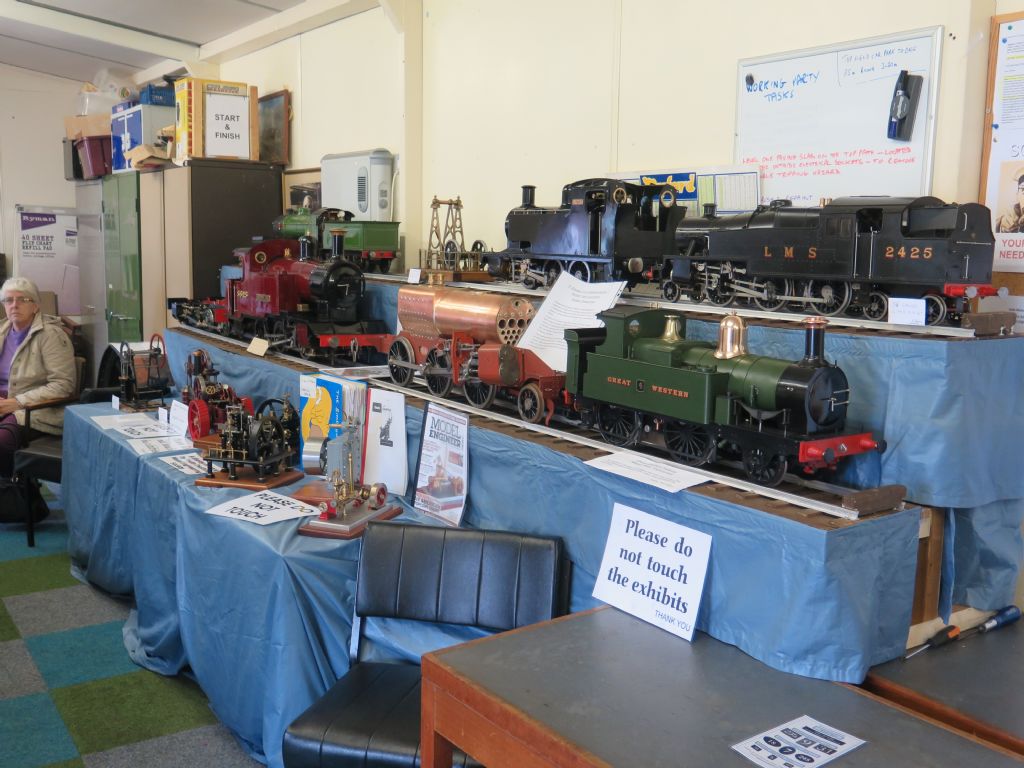

I think I see a Murray's Hypocycloidal at the far end on the lowest shelf in pic 2…

[V8EngParticipant @v8eng]

Looks like a good do well done to all concerned.

My wife looked at the first picture and said “ ooh look Santa Claus on a steam engine”.

Please excuse me if this a silly question: what is happening in the fourth picture? In spite of the empty cup I assume it’s not a fancy coffee machine.

Edited By V8Eng on 13/09/2018 20:43:13

[Michael GilliganParticipant @michaelgilligan61133]

Posted by V8Eng on 13/09/2018 20:33:01:

Please excuse me if this a silly question: what is happening in the fourth picture? In spite of the empty cup I assume it’s not a fancy coffee machine.

.

Presumably making the decorative plates [visible on the table] … but I can't make out what the 'cutter' looks like.

A cropped image might be helpful. < please Stewart >

MichaelG.

[Stewart HartParticipant @stewarthart90345]

Thanks for your interest and comment chaps

Taking your comments turn:-

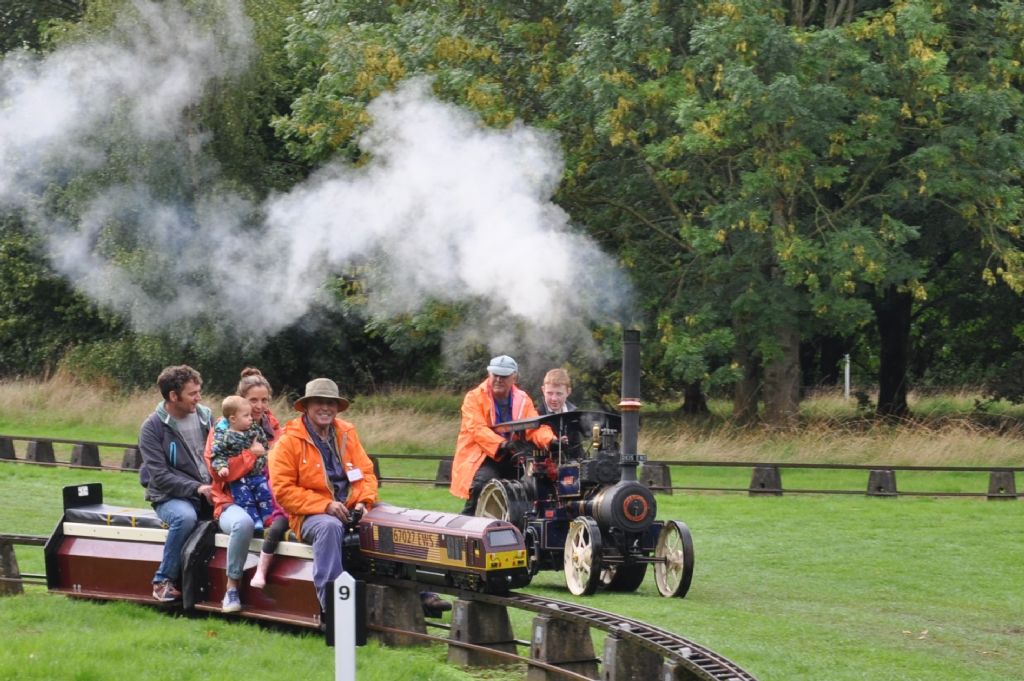

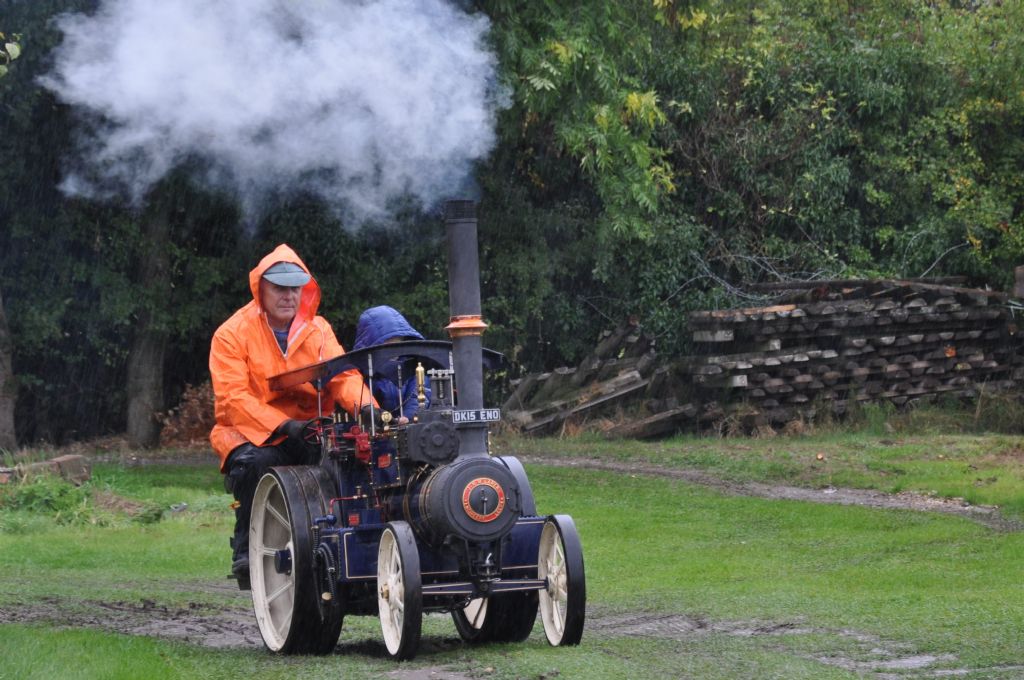

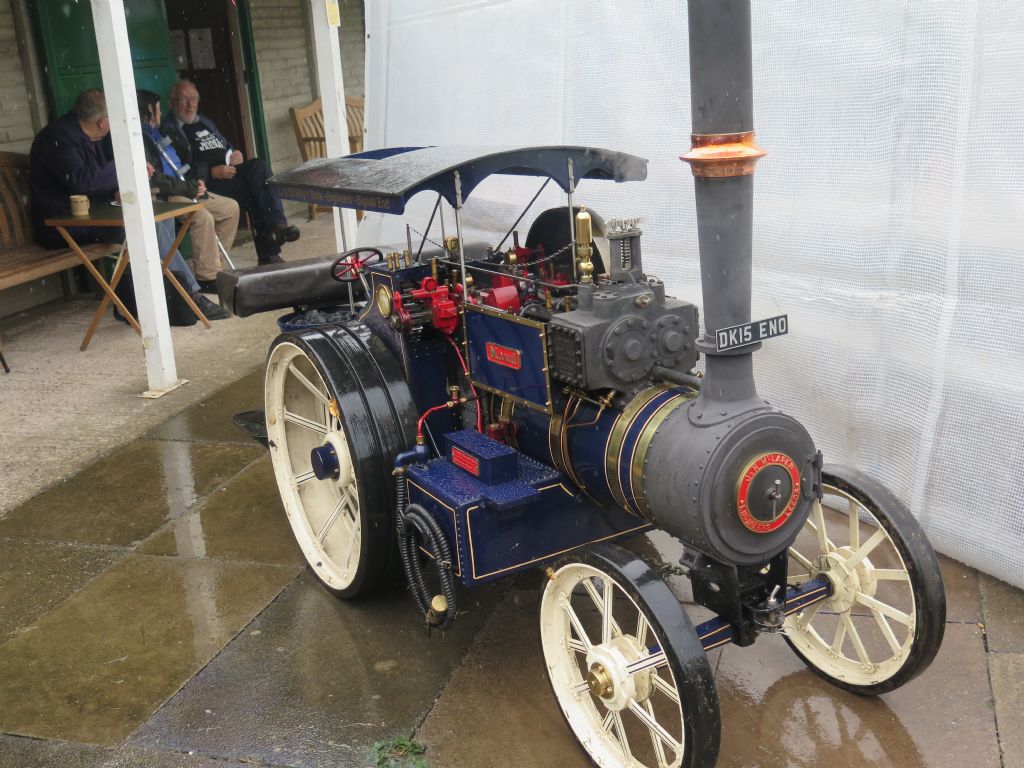

That's yours truely Neil driving my famous engine Gremlin or so my youngest Grandson recons, and yes it does look like a steam beard never spotted that its amazing what a damp atmospher does to the steam, it makes for interesting pictures.

I think I see a Murray's Hypocycloidal at the far end on the lowest shelf in pic 2…

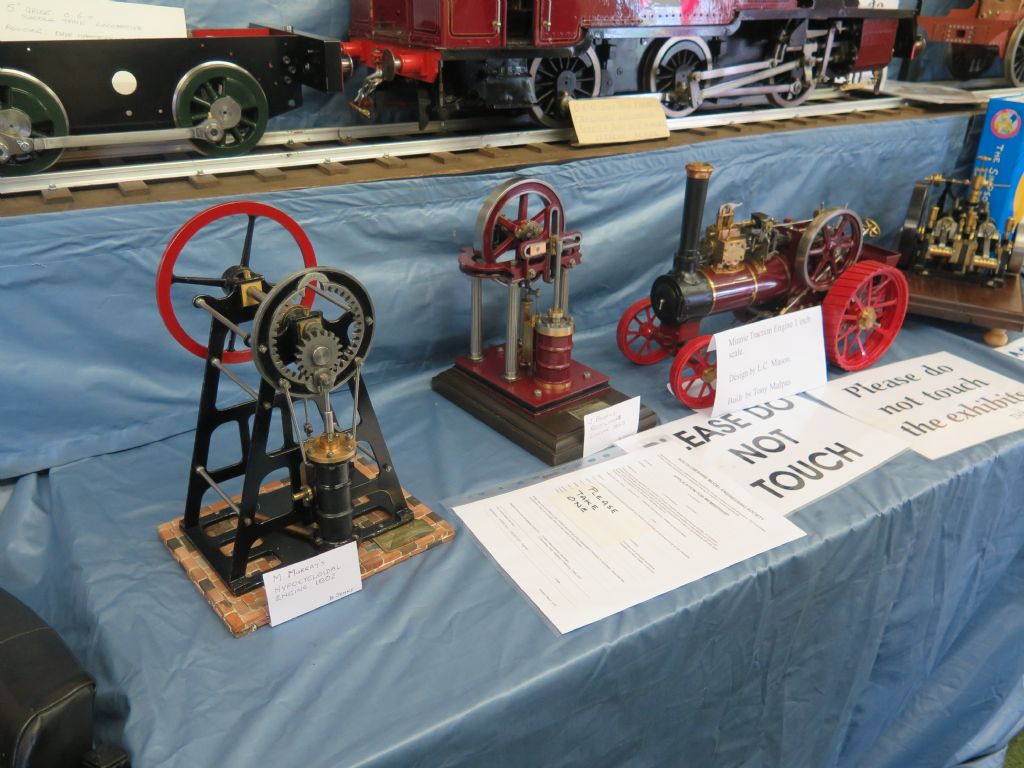

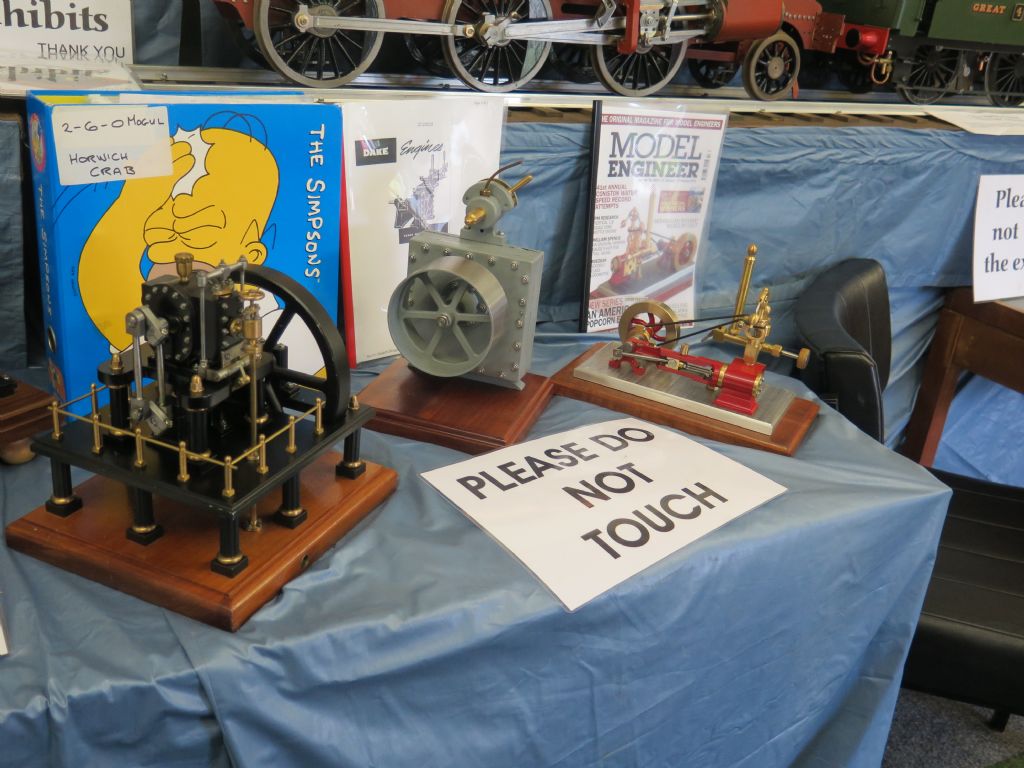

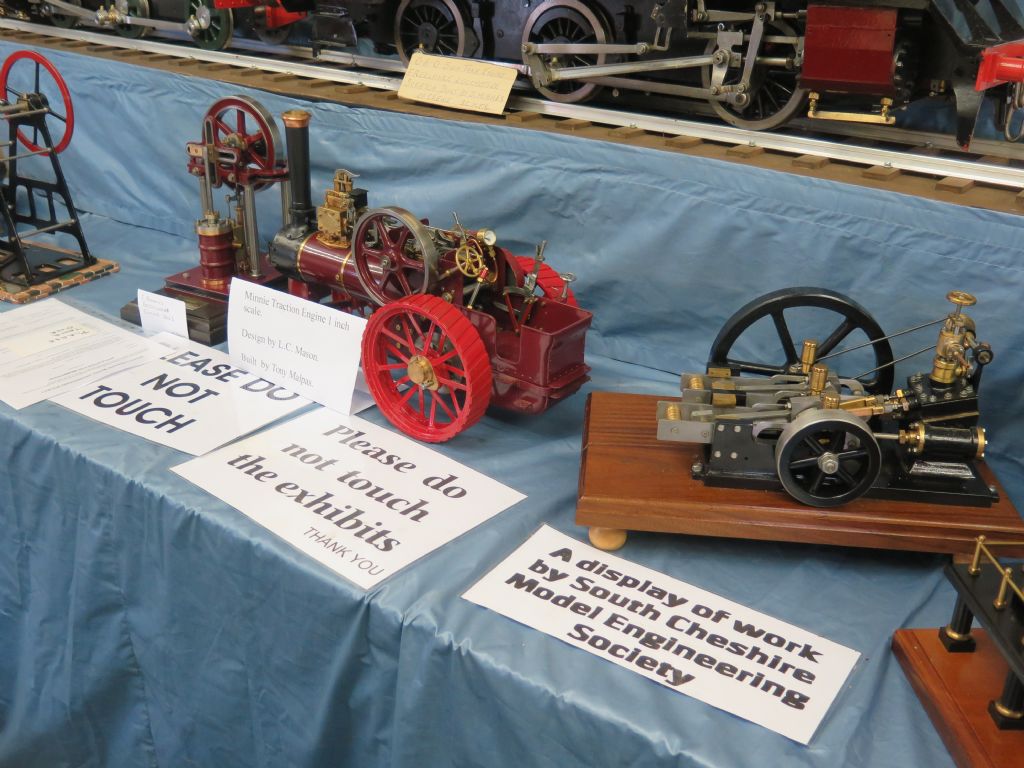

Her's some closer shot of the stationary engines you may spot some of my engines that have been in ME.

Please excuse me if this a silly question: what is happening in the fourth picture? In spite of the empty cup I assume it’s not a fancy coffee machine.

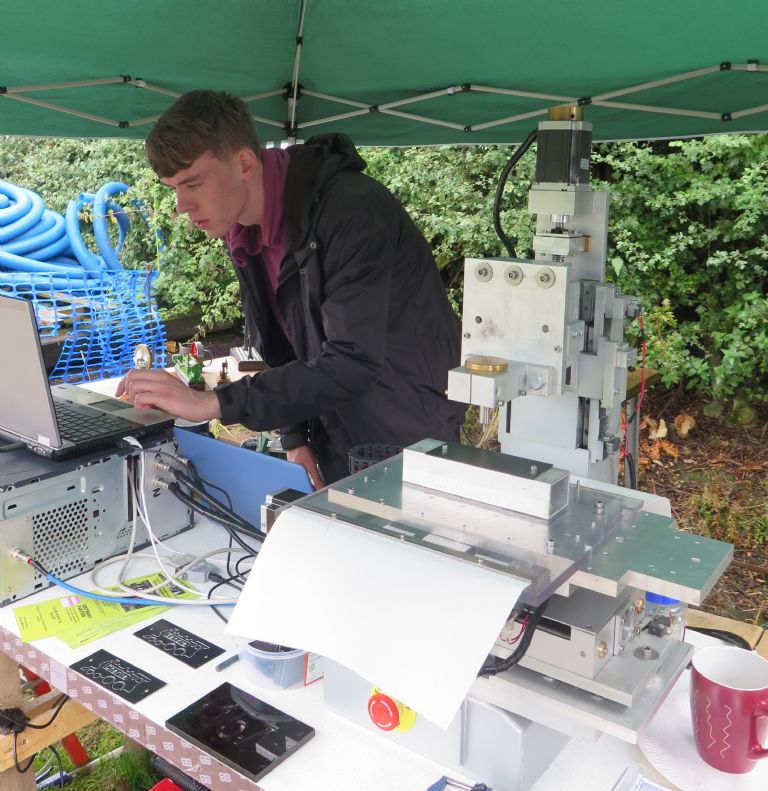

Its an home brew cnc machine that my friend and his son made they are using it to etch name plate for children's bed rooms one is being cut whilst two finish ones are on the table he also uses it to make fancy door numbers.

Stew

[Stewart HartParticipant @stewarthart90345]

Posted by Michael Gilligan on 13/09/2018 20:52:36:

Posted by V8Eng on 13/09/2018 20:33:01:

Please excuse me if this a silly question: what is happening in the fourth picture? In spite of the empty cup I assume it’s not a fancy coffee machine.

.

Presumably making the decorative plates [visible on the table] … but I can't make out what the 'cutter' looks like.

A cropped image might be helpful. < please Stewart >

MichaelG.

Yes they are decorative plates, the plates are ally painted black the decoration is scratched into the surface using a tungsten pointed tool that is spring loaded, my friend bought the scratch tools from a supplier, I think they call the technique scratch engraving.

I'll see if I have a closer picture

Stew



Edited By Stewart Hart on 13/09/2018 21:19:53

[Stewart HartParticipant @stewarthart90345]

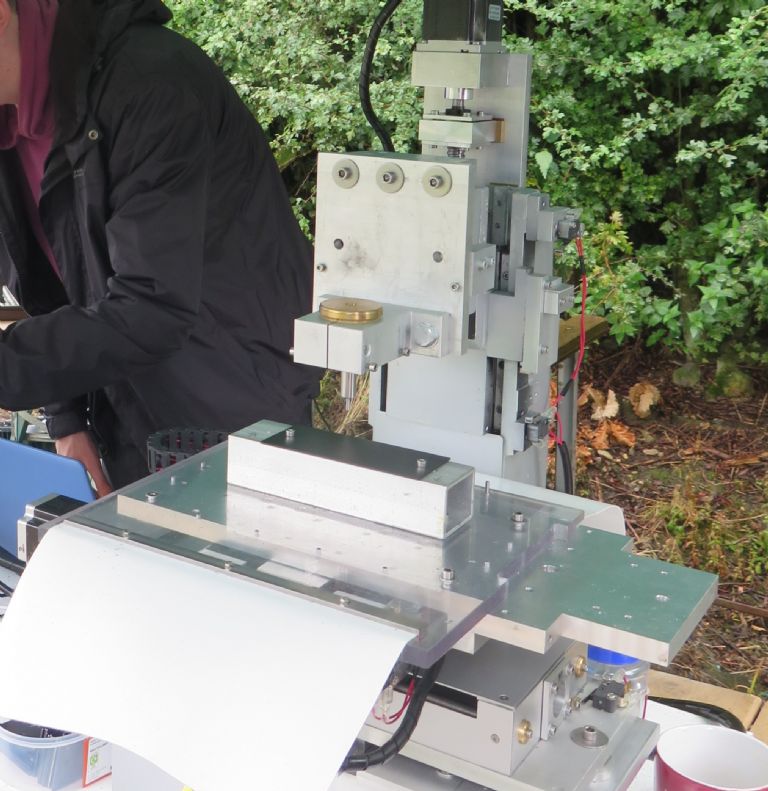

The machine uses a redundant Mitatoya inspection microscope body so the slides are very good my friend added stepper motors and reciprocating ball screws in the the x,y and z axis and all the electronicy stuff don't ask me what soft ware they use as I have no idea

Stew

[Michael GilliganParticipant @michaelgilligan61133]

Thanks, Stew

MichaelG.

[V8EngParticipant @v8eng]

Excellent ingenious piece of re-purposing, good to see a member of the younger generation involved as well.

[Stewart HartParticipant @stewarthart90345]

Her's a few more pictures taken by another club member.

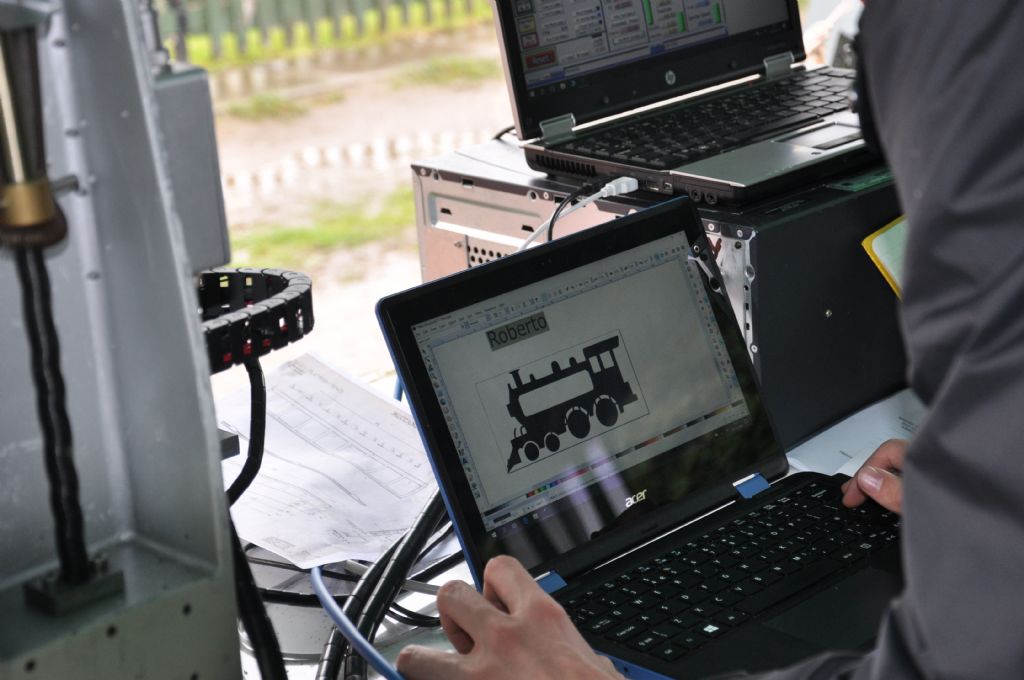

This first one shows the screen with name plates that were being etched



Stew



Edited By Stewart Hart on 15/09/2018 07:26:56
