hi am looking for page 716 in the august 1961 model engineer that gives the assembly of the cab reversing gear any help would be appreciated thanks

[Peter Townsend 2Participant @petertownsend2]

cab reversing gear

[MeunierParticipant @meunier]

According to my records, august 1961, 4issues, contained only 100 and 200-series page numbers, not 716.
Can you clarify ? which loco ?

DaveD

[Ady1Participant @ady1]

Your page numbers are way out and no index in those 4 issues has "cab reversing gear"

[Peter Townsend 2Participant @petertownsend2]

hi i have the 3 august 1961 copy vol 125 no3134 and am working from page 151 rob roy by martin evans valve gear and reversing lever drawing on pg 152 and details on 153 at the end of chapter he says it is assembled on page 716 yhanks

[Jon LawesParticipant @jonlawes51698]

I thought you were working on a Springbok? You need to find a copy of the Martin Evans book that covers the Rob Roy and William locomotives; its got almost everything in there.

[Michael GilliganParticipant @michaelgilligan61133]

Posted by Peter Townsend 2 on 13/05/2021 03:27:28:

hi i have the 3 august 1961 copy vol 125 no3134 and am working from page 151 rob roy by martin evans valve gear and reversing lever drawing on pg 152 and details on 153 at the end of chapter he says it is assembled on page 716 yhanks

.

I would guess that ^^^ should read page 176 [being in the next issue]

It’s not my area of interest though; so this might only add to the confusion!

MichaelG.

.

.

Grabbed from an advert:

[JasonBModerator @jasonb]

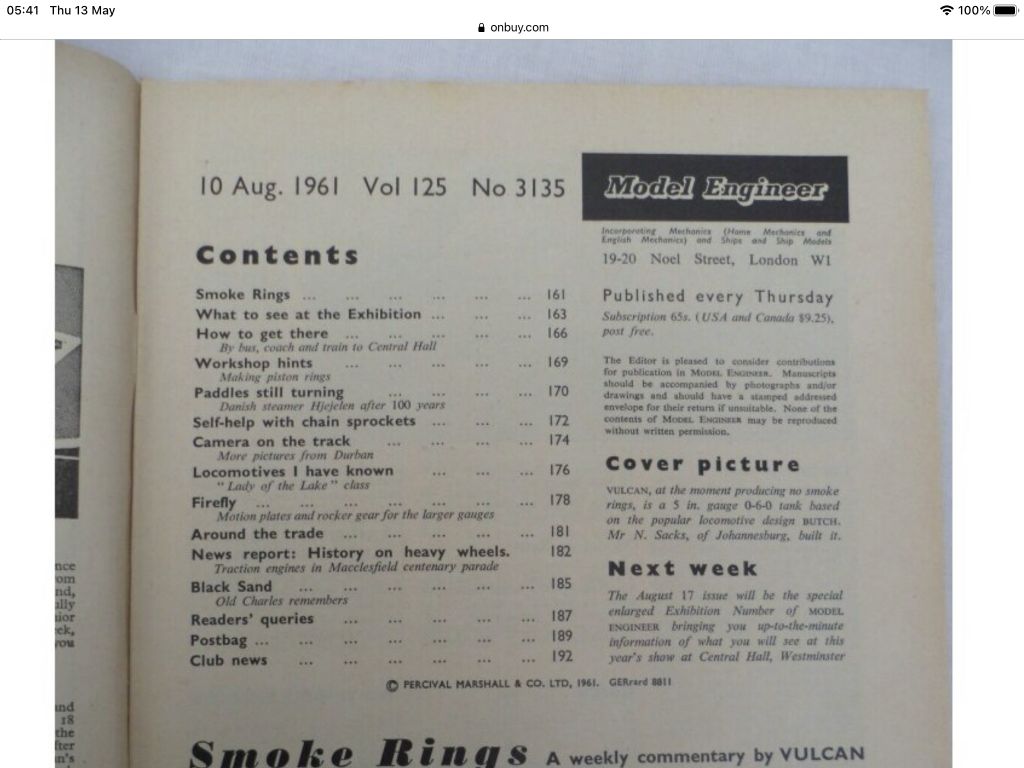

More like 178 if its by Martin Evans, Peter PM me an e-mail address. Ady1 has put them up so no ned to email

Edited By JasonB on 13/05/2021 07:48:56

[Ady1Participant @ady1]

Nothing on 176 either

There's some firefly build stuff from page 178

I have put those pages in here in case they help

[Nicholas FarrParticipant @nicholasfarr14254]

Hi, in an index I have, the next instalment for Rob Roy after 3134 is in 3138, page 264, in which is, setting of the valves, fitting of steam and exhaust pipes. Super heater connections, easy removal, suction pipe union.

The only mention I've found of a page 716, is in vol 125, 3132, page 89, which is about an error on drawing on page 716, vol 124.

Regards Nick.

[Robin KingParticipant @robinking15611]

Peter,

The page you are looking for is page 716, 8th June 1961 which gives the g.a. drawing of the Rob Roy valve gear plus reversing lever.

[Michael GilliganParticipant @michaelgilligan61133]

Posted by Robin King on 13/05/2021 09:20:53:

Peter,

The page you are looking for is page 716, 8th June 1961 which gives the g.a. drawing of the Rob Roy valve gear plus reversing lever.

.

Aha !! … The old ‘change the volume numbering a some odd time of year’ trick

MichaelG.

[JasonBModerator @jasonb]

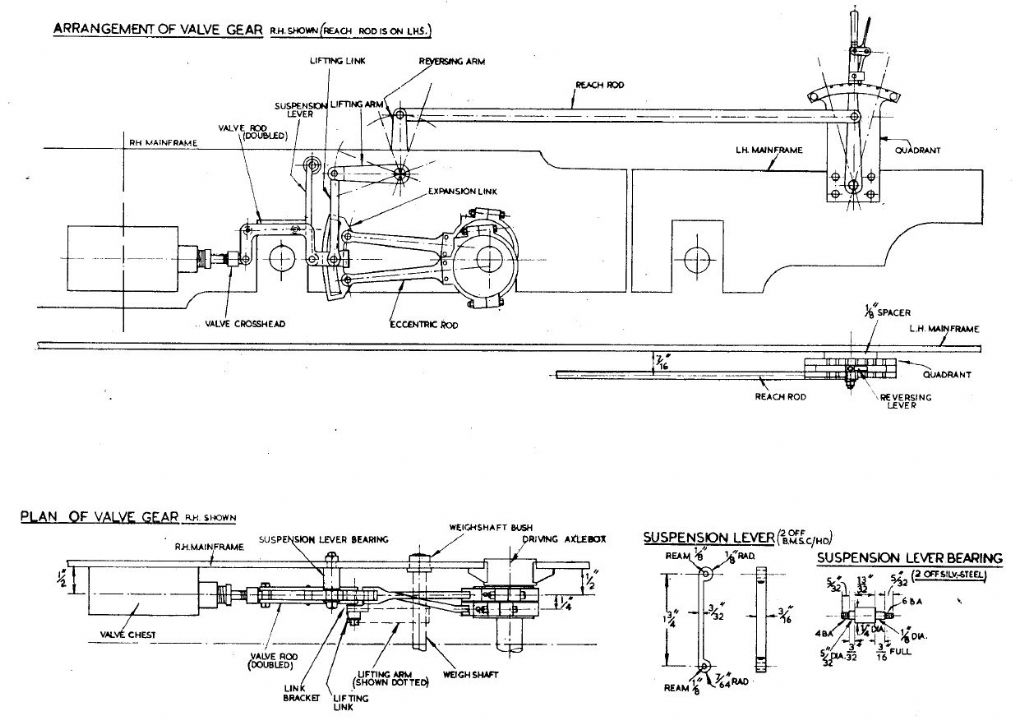

Pg 716, click for larger image.
