Lift-span Bridge

[Peter HausamannParticipant @peterhausamann71795]

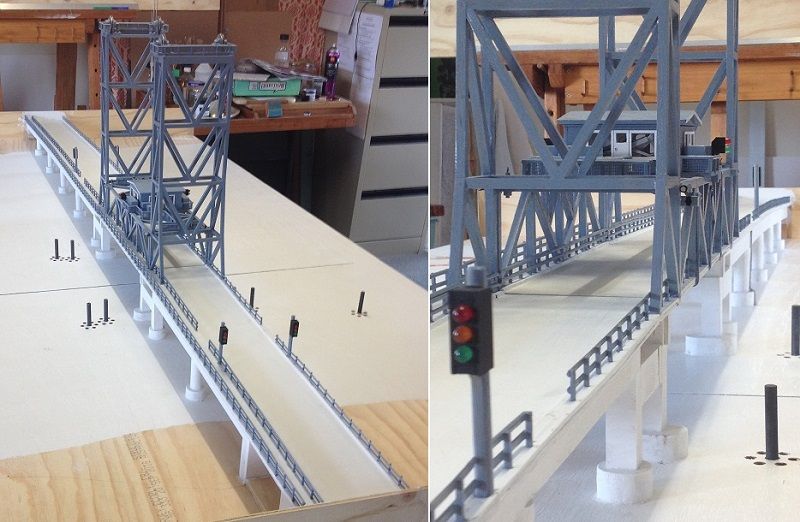

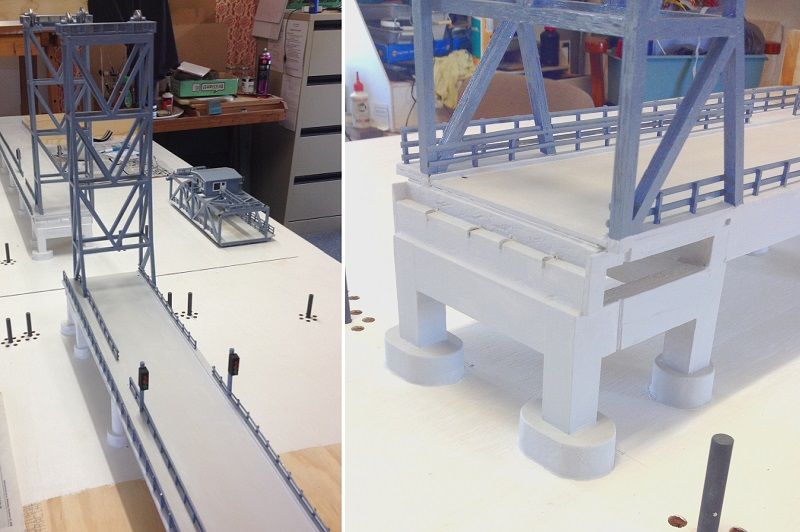

Then I had the fiddly job of painting the railings.

I do not plan to paint the bridge to appear weathered, but as if brand new and unpolluted. It is something I learnt to appreciate from doing some architectural rendering in my youth. So, I gave the rest of the bridge a cement grey colour. The road will be painted to appear as concrete (with gravel).

[Peter HausamannParticipant @peterhausamann71795]

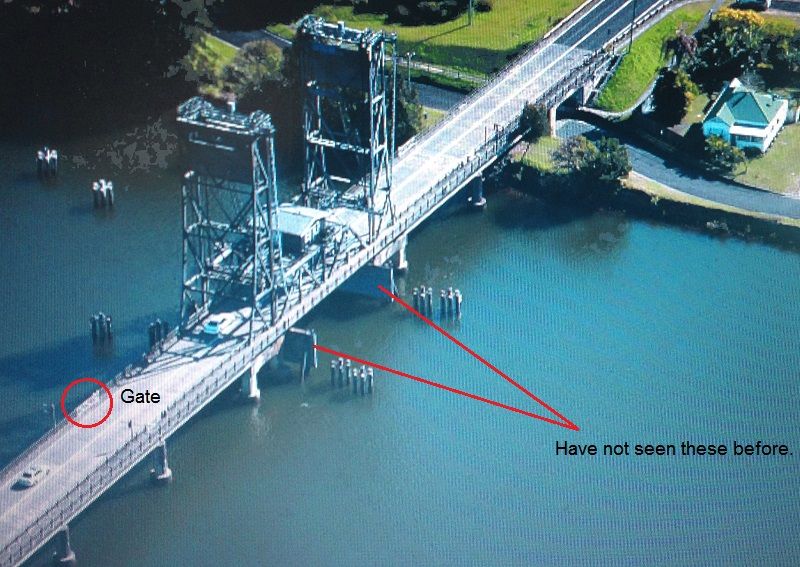

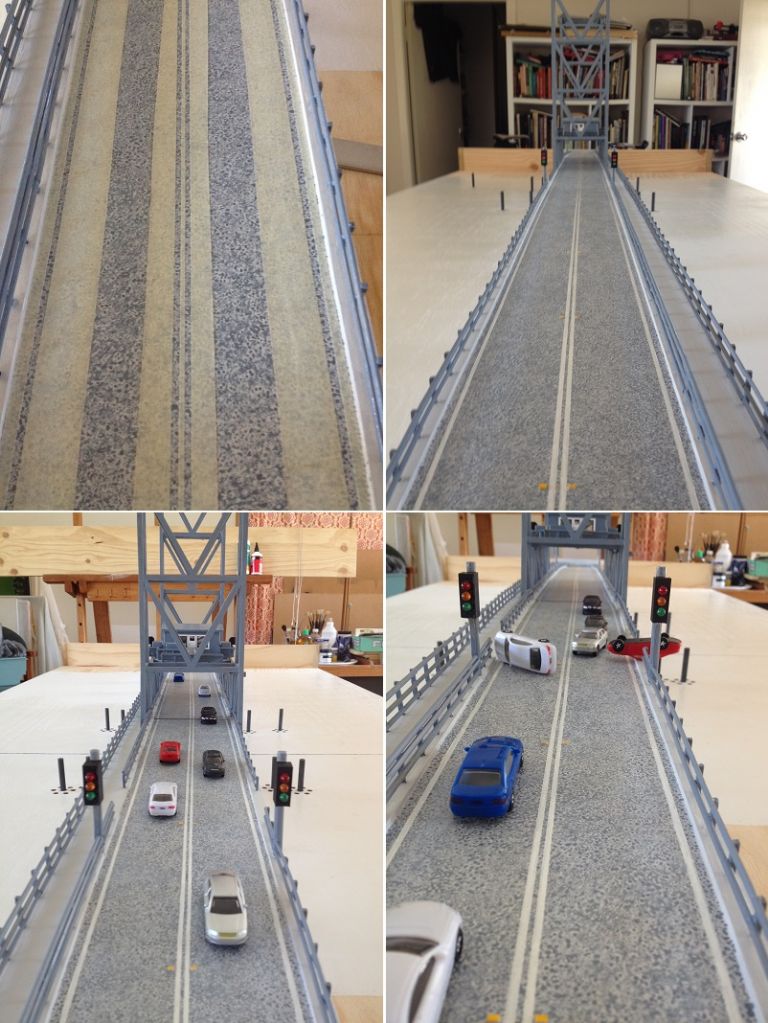

Throughout this project I continue to do Internet research. A friend emailed me a photo taken of a computer screen by her iPhone. It revealed a few things I was still not clear about. There was the matter of what did the swing-gates look like. The scale of the cars is known, but how did they look in comparison to the whole bridge. Finally, what did the concrete road look like from above.

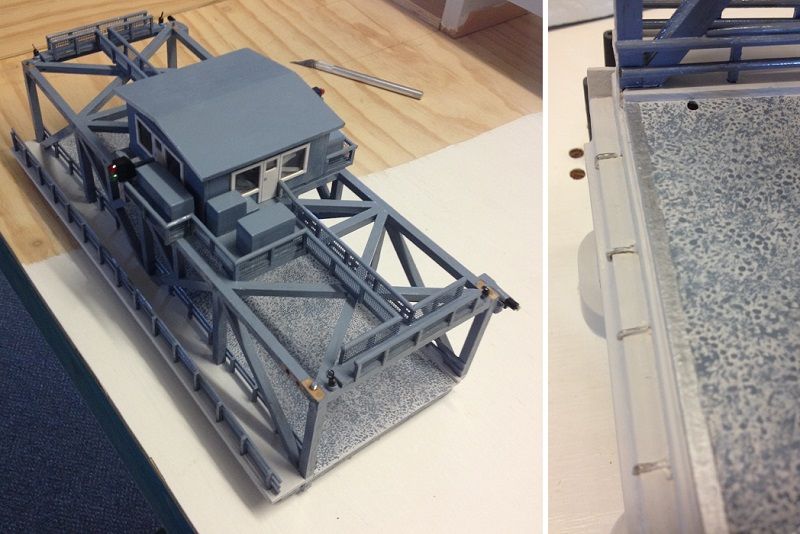

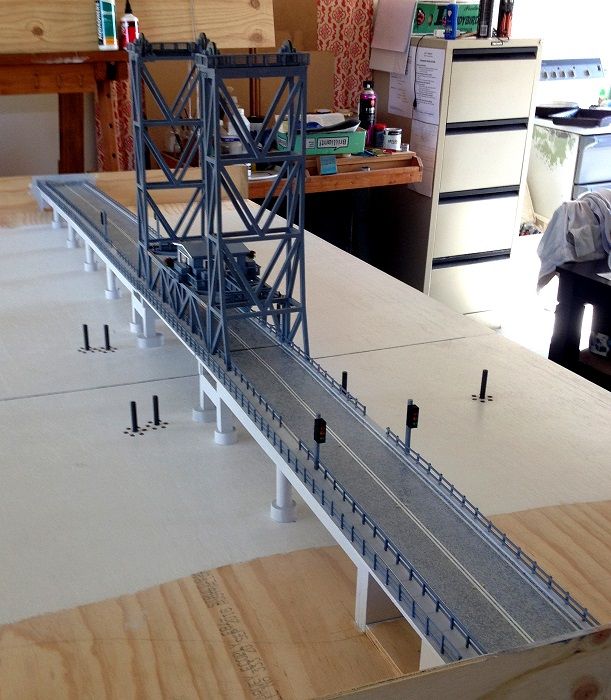

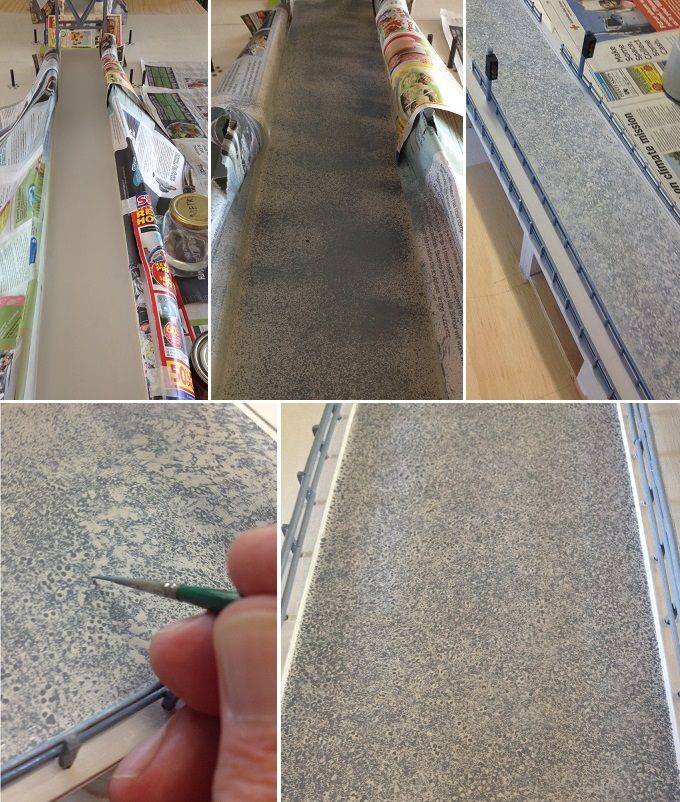

Decided to splatter dark grey paint onto the cement colour. It turned out horrendous. So then I used the dry brush method to lighten up the dark patches. Afterwards, I kept alternating between dark and light paint with a fine brush until I was happy with the results.

Painting the span took longer than painting the rest of the road. It was difficult to get into the central areas. The edges of the span and bridge have a metal plate (silver painted area). The hole you see on edge of road is for the fine (0.7 mm) bridge cable which goes through the display table.

[Michael GilliganParticipant @michaelgilligan61133]

Peter,

Inspired by your friend's screen-shot; I had a look on Google Earth

There is a lot of detail available in the 'Street View'

Keep up the great work !!

MichaelG.

.

For iOS users: https://earth.app.goo.gl/QKWni #googleearth



Edited By Michael Gilligan on 26/01/2018 21:38:37

[Peter HausamannParticipant @peterhausamann71795]

Posted by Michael Gilligan on 26/01/2018 21:37:17:

Peter,

Inspired by your friend's screen-shot; I had a look on Google Earth

There is a lot of detail available in the 'Street View'

Keep up the great work !!

MichaelG.

.

For iOS users: **LINK**

Edited By Michael Gilligan on 26/01/2018 21:38:37

Hello MichaelG.

Thanks for response. For some reason I could not open link. I have seen the Google earth views, and they are getting better in time.

My main research was the gates. They were in many years ago (now replaced with boom-gates), and I only had a few shallow angle and long distant shots of them. My friend new I was searching for those gates, and sent me the photo. It's just that this photo also revealed other features too.

[Peter HausamannParticipant @peterhausamann71795]

[Jeff DaymanParticipant @jeffdayman43397]

Hope no one was hurt in the multi car wreck seen in your 4th pic Peter!

Just kidding, the bridge looks great.

[MWParticipant @mw27036]

This is superb model work. I admire it, thank you.

Michael W

[Billy BeanParticipant @billybean67480]

This is indeed a superb model, a most interesting build thread.

Nice to see something a little different.

BB

[Peter HausamannParticipant @peterhausamann71795]

Wow, thank you Jeff Dayman, Michael W, and BB for your kind words.

[Peter HausamannParticipant @peterhausamann71795]

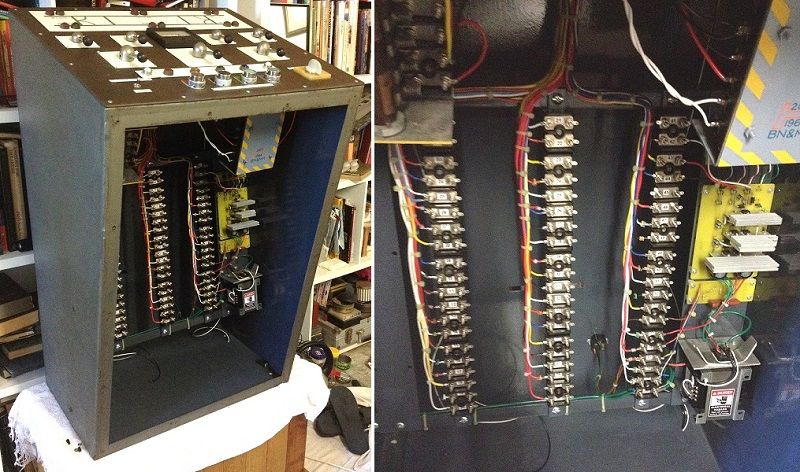

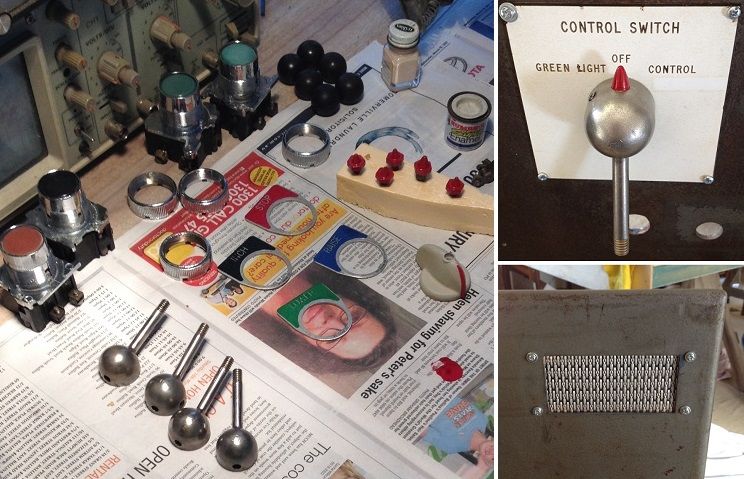

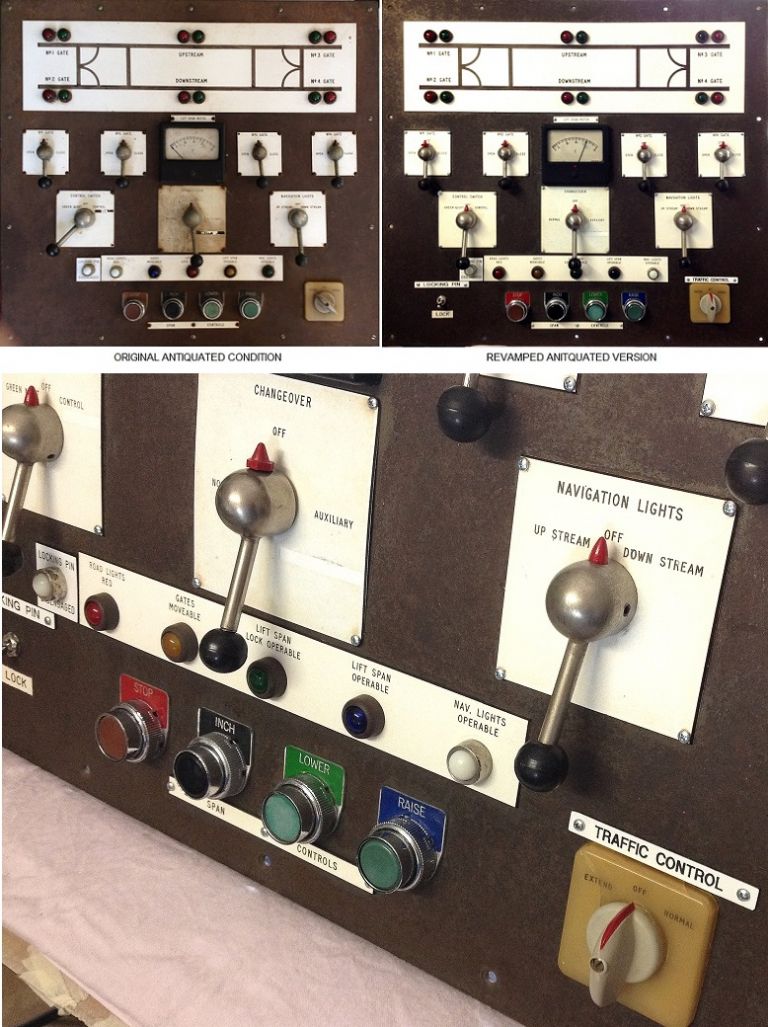

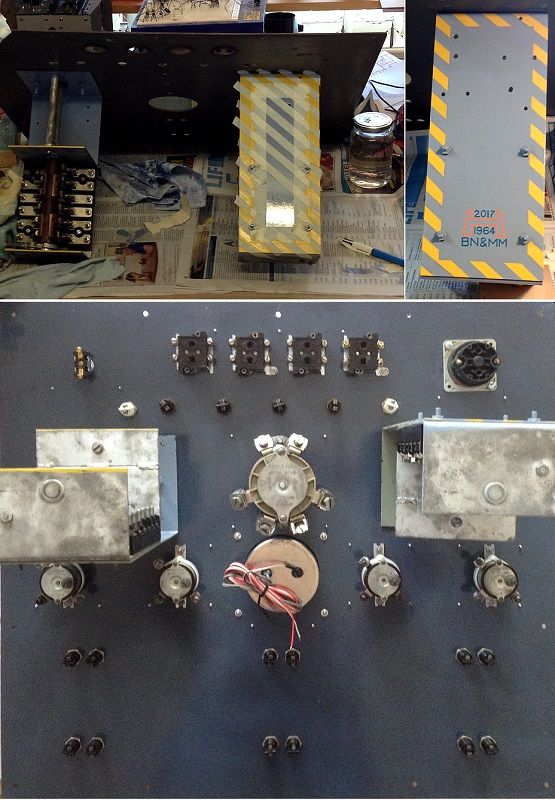

Since the console is to be a wiring diorama of sorts, I decided to dramatize it a bit by adding some paint here and there.

[Peter HausamannParticipant @peterhausamann71795]

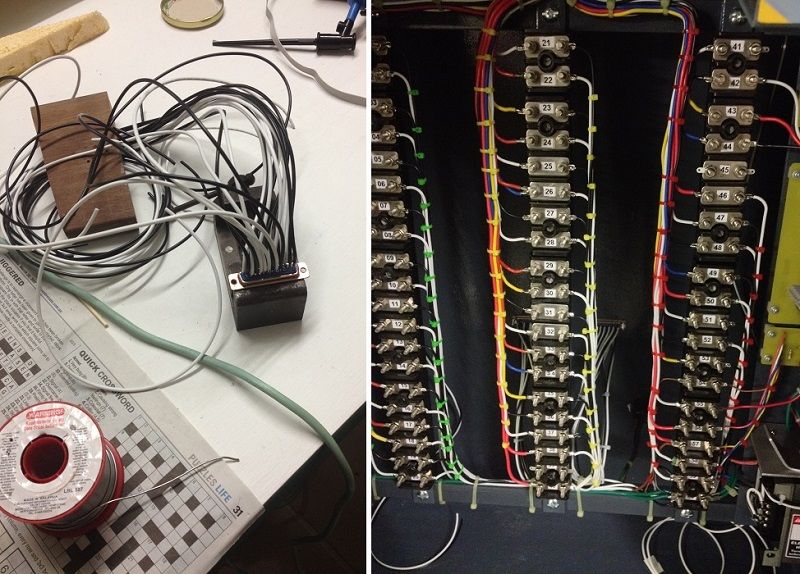

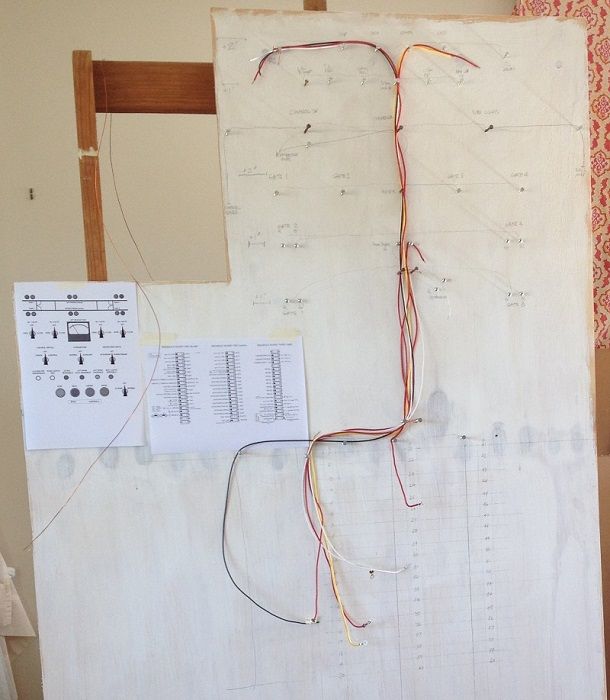

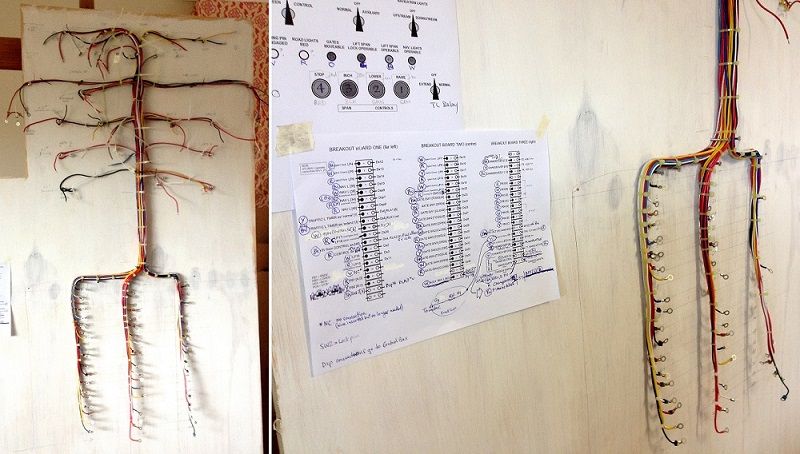

Creating a new wiring harness for the console.

[Peter HausamannParticipant @peterhausamann71795]

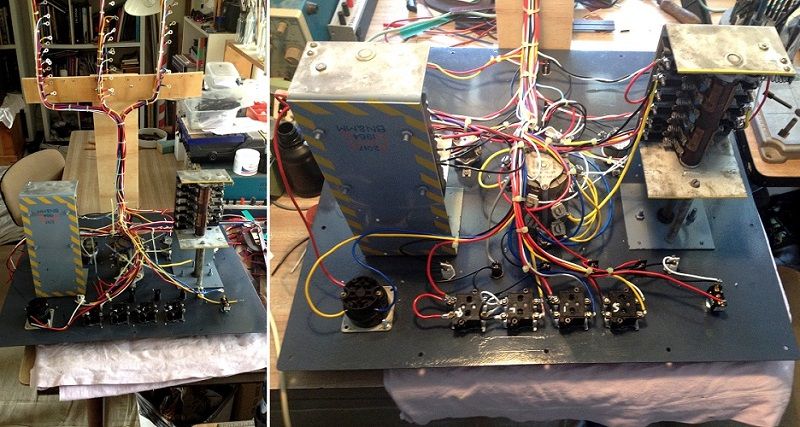

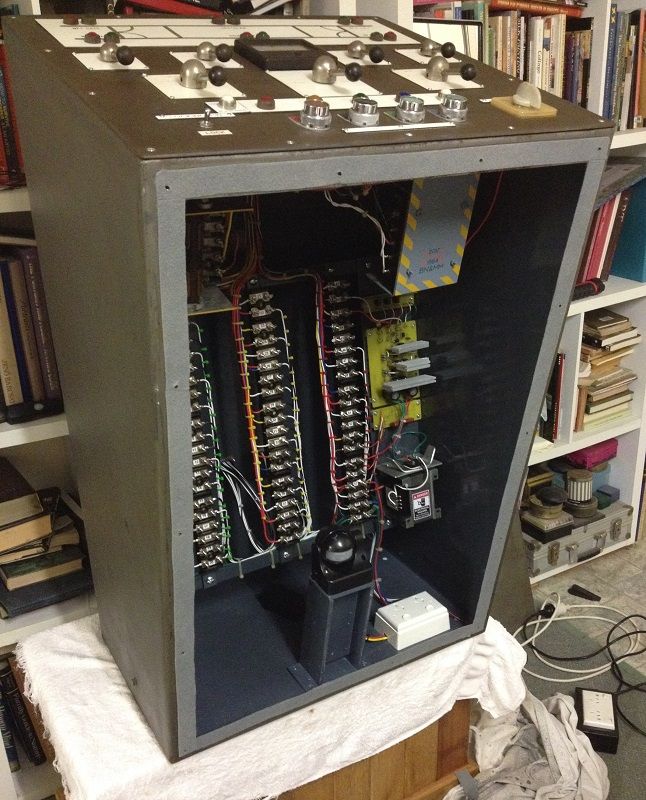

Added wiring harness to console control panel. Since it is the underside (not easily seen) it was pointless to dressed it up.

Connected control panel and harness to console.

Made small harness between terminal strips and the two D-Connectors to the back of console (these connect to control box under display table).

[Peter HausamannParticipant @peterhausamann71795]

Added Passive Infrared (PIR) sensor for detecting any museum visitors approaching the display.

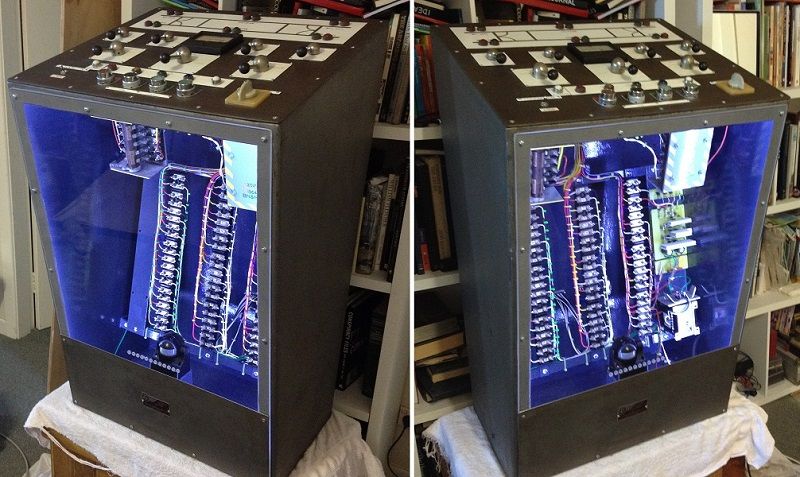

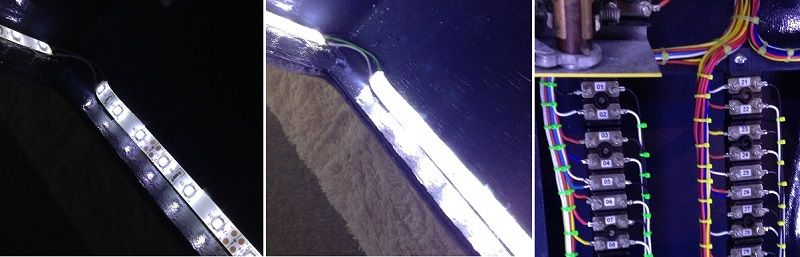

Dyed some felt a grey color and lined the console edges of front panel.

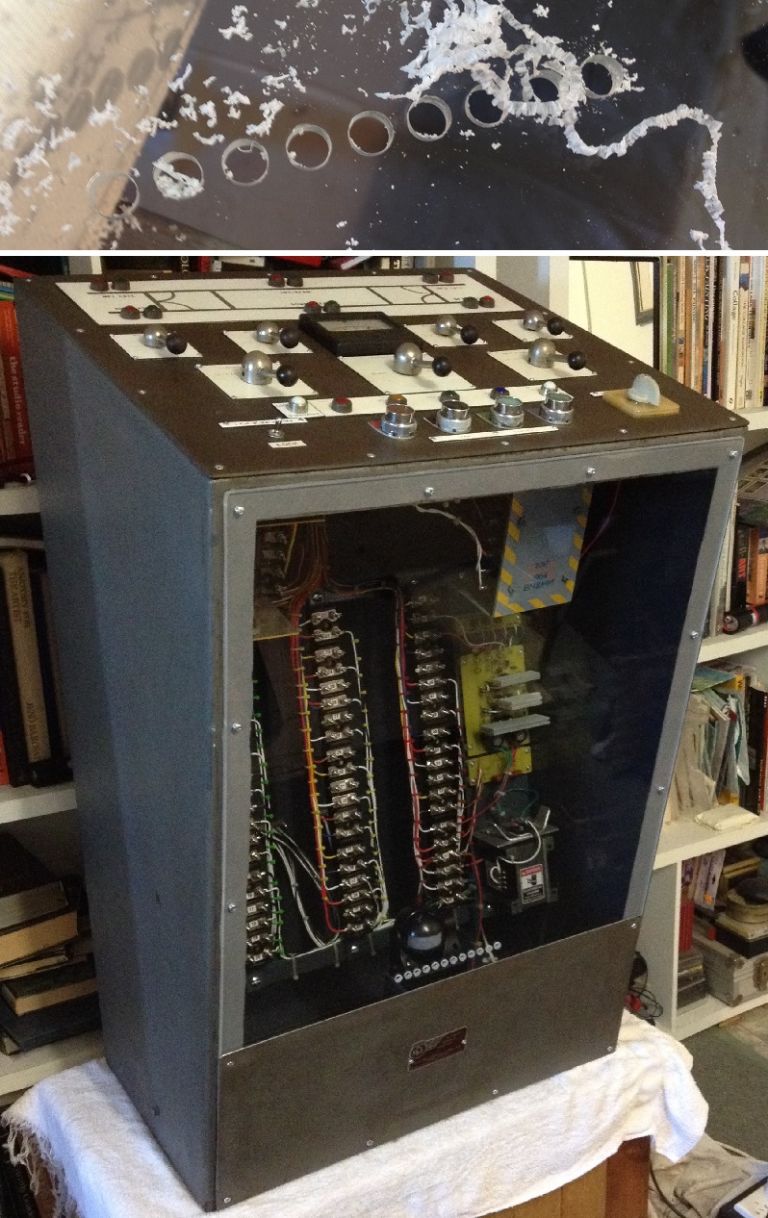

Drilled holes in the thick Perspex, allowing heatwaves to reach the PIR sensor. A portion of the front panel was used as a kick board to protect the Perspex.

[Peter HausamannParticipant @peterhausamann71795]

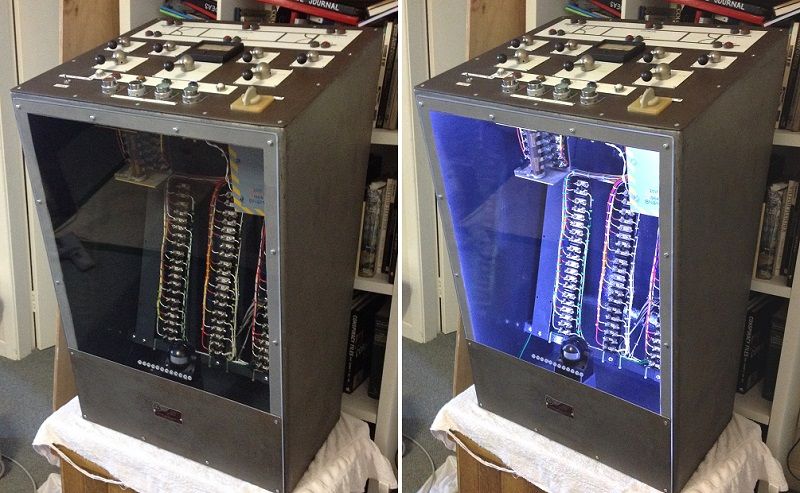

The PIR sensors movement in its vicinity. When it does it will turn the console lighting on. The only times it turns off is when the PIR no longer sensors movement for 10 seconds, or when someone starts working the console.

[Jeff DaymanParticipant @jeffdayman43397]

How's the bridge project going Peter? Haven't seen any pics lately. Hope all is well. JD

[Harry WilkesParticipant @harrywilkes58467]

Brill look forward to seeing it working !!!

H

[Peter HausamannParticipant @peterhausamann71795]

Posted by Jeff Dayman on 06/04/2018 16:13:21:

How's the bridge project going Peter? Haven't seen any pics lately. Hope all is well. JD

Bridge project continues, but no longer so for this website.

Why? Over two months ago I completed a major portion of the bridge project _ the wiring diorama of the console. Yet it took until now to get a response. And even so, the response has nothing to do with the console.

This is a model engineering website, and I feel that my modelling posts don't come up to the expected standards of most forum members. It is as if I need lathe to become accepted. So I have bowed out of here.

Sorry if you are disappointed in me, but it won't be half as much as I am.
