John Haining Models

[David CostelloParticipant @davidcostello75947]

I wonder if anyone should know the whereabouts of John Hainings agricultural models,he made quite a number,he was of course a well known consultant for ME during the 70,80,s.His models were traction engines,cultivation equipment,some with the help & assistance of Colin Tyler,their articles had “Countryman Steam” headings

I refer to the actual models not ME articles.

Dave.

Edited By David Costello on 25/01/2011 18:58:04

Edited By David Costello on 25/01/2011 18:59:55

[David CostelloParticipant @davidcostello75947]

[Neil TylerParticipant @neiltyler48530]

I knew John Haining and Colin Tyler is my father. I don’t know of the whereabouts of John’s models but my dad’s got sold to a guy called Jack Charlton who had them for quite a few years before ending up at Christies London, where they were sold to a private collector in the states. The models, all in 2″ scale comprised of a Fowler BB1 and balance plough, Kitson & Hewitson Slanting shaft ploughing engine (clip drum). The Darby Broadside Digging engine (on youtube, look up ‘TYLER DARBY DIGGER’.



I will be offering the drawings & casting sets for these engines soon. I am just setting up a website and need to restore some of the patterns. They will be sold through Tylers Steam Models again.



Let me know if there is anything else you need to know.



Regards Neil Tyler.

[David CostelloParticipant @davidcostello75947]

Thank you Neil.

I knew John back in the 70,s he used to live near me.I am building the 6 furrow plough using your fathers drawings.Can i assume your website would be “Tylers Steam Models”when you set it up?.

Regards Dave.

[JasonBModerator @jasonb]

Good to hear you will be making these castings available again, I’ve seen several people ask if they ar eavailable particularly the BB1 and have also suggested to a coupel of others in the past to contact you about the Kitson.



PM sent.



Jason

[Neil TylerParticipant @neiltyler48530]

Hi Jason & Dave

Yes it will be Tyler’s Steam Models website, I will advertise it in one of the mags, probably Old Glory. I will hopefully get the site up quite quickly although certain parts may be ‘under construction’ for 3 or 4 weeks whilst we make a decent job of it.

I’m very pleased to hear there is interest out there, I have a couple of people interested in the BB1 as well. I just need to find a reliable foundry now!

Thank’s for your interest. Regards, Neil

[David Clark 13Participant @davidclark13]

Hi Neil

Might be better to advertise it in Model Engineer.

I am sure readers would be pleased castings are available again.

regards David

[Neil TylerParticipant @neiltyler48530]

Hmmm. I have been deliberating that one a bit today. Looking at circulation and prices etc. You are right though as they were kind of born in the ME. I shall do both mags for a while and see how it goes. Thanks and regards, Neil

[JasonBModerator @jasonb]

Get it listed in the Suppliers section on Traction Talk which I think you are a member of and also put a post in their model section, also the suppliers section of Model Eng clearinghouse. You should also get it added to the database on Scalemodel tractionengines Yahoo group as thats the largest list I know of that has most models available.



And they are all free



Jason

[Neil TylerParticipant @neiltyler48530]

I will indeed and thanks very much for your input. all good stuff.

Regards, Neil

[Leo WestbyParticipant @leowestby60607]

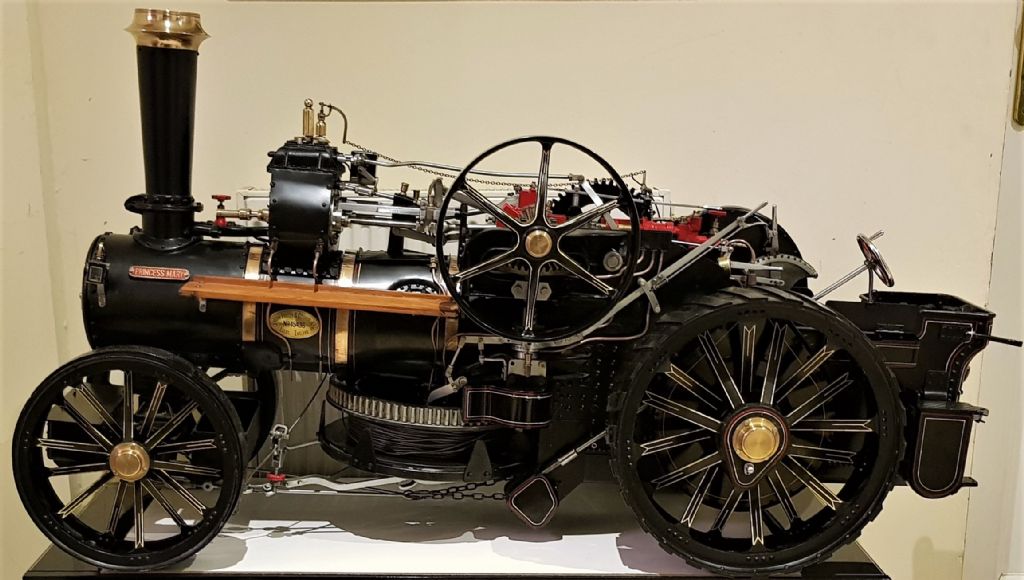

I know this is a very old thread, but I now own the BB1 built by Colin Tyler. His collection came back to the UK and was sold by Station Road Steam. I am getting it recommissioned to run on steam again.

[Neil WyattModerator @neilwyatt]

Posted by Leo Westby on 11/04/2018 15:21:06:

I know this is a very old thread, but I now own the BB1 built by Colin Tyler. His collection came back to the UK and was sold by Station Road Steam. I am getting it recommissioned to run on steam again.

That's good to hear.

Neil

[Leo WestbyParticipant @leowestby60607]

Cheers Neil. Did you know this was the actual engine used in the build featured in Model Engineer between 1966 and 1967? I am in touch with Colin Tyler's son Neil now, and we will be getting together once the BB1 is back from being recommissioned. It's had quite a life, having being on Blue Peter in 1969 (and featuring on one of the Blue Peter puzzles), and in the 1976 film 'At The Earth's Core'. I have put some photos in an album on here.

Edited By Leo Westby on 15/04/2018 20:42:00

[David De’athParticipant @daviddeath74113]

Reviving an old thread as my query is pertinent to a John Haining model.

---

Hi All,

I wonder if anyone could help me please. I have recently acquired a Suffolk steam tractor designed by John Haining and serialised in ME in the early eighties. The steel boiler appears to be good and has passed a corrosion and leak test but I cannot find any mention of the design working pressure on the drawings or in the articles that described the build. I have two books by John Haining about building boilers which mention the tractor and the earlier one gives the working pressure as 100psi but the boiler was redesigned for the ME articles and is larger with many changed details. The later one has the boiler drawing without the pressure notation.

This has become a stumbling block to getting the boiler certificated since the club tester would like to see a published design showing the design working pressure before testing.

I am informed that it is possible to calculate the working pressure from the drawings but that this is quite a task. To avoid this does anyone have a set of drawings for the engine, any other document or set of calculations that could validate the working pressure. I have test records going back to 2000 which show the test pressure was accepted as 100psi.

I will, of course, cover any costs incurred. I posted this query on Traction Talk and it was suggested that here might be better.

Thanks

David

[Former MemberParticipant @formermember19781]

[This posting has been removed]

[Former MemberParticipant @formermember19781]

[This posting has been removed]

[JasonBModerator @jasonb]

David, it would be worth trying to get a look at ME vol 146 No 3626 which detailed the boiler and possibly 3624 which introduced the model.

Or get hold of a set of drawings, Sarik do them

Edited By JasonB on 15/12/2019 20:40:00

[David De’athParticipant @daviddeath74113]

Thanks for the suggestions.

Jason

I have all looked at all of the articles mentioned and one in 147 but none show the designed boiler pressure. I have a set of drawings from Nexus, some sheets from the 3" and some from 2" plans but again no design pressure for the boiler. I believe that these are the same plans sold by Sarik as TE18. A 2" sheet shows a 120 psi pressure gauge, possibly indicating 80 psi design pressure for that size.

[Neil WyattModerator @neilwyatt]

Posted by Leo Westby on 15/04/2018 20:40:47:

Cheers Neil. Did you know this was the actual engine used in the build featured in Model Engineer between 1966 and 1967? I am in touch with Colin Tyler's son Neil now, and we will be getting together once the BB1 is back from being recommissioned. It's had quite a life, having being on Blue Peter in 1969 (and featuring on one of the Blue Peter puzzles), and in the 1976 film 'At The Earth's Core'. I have put some photos in an album on here.

Edited By Leo Westby on 15/04/2018 20:42:00

I've just noticed this.

Did the Blue Peter feature show it being used to 'plough' a field with a balance plough? If so, I think I recall seeing it – I would only have been about 7 at the time!

Neil

[JasonBModerator @jasonb]

Neil have a look at photo number 8, it may bring back memories.

Just a well they did not try to recreate photo No1 with Blue Peters track record!

[Neil WyattModerator @neilwyatt]

I've looked through all the Suffolk tractor article and can see no mention of boiler working pressure or even of a safety valve which might have included such information.

Neil

[Neil AParticipant @neila]

It may have absolutely no relevance at all to the Suffolk Tractor, but the next two boiler designs by John Haining that appeared in the ME both had working pressures of 85 psi. One was made in copper, the other was steel.

Not to have the working pressure on the drawings seems to be a serious omission, I could find no further references to the Suffolk Tractor after the one in vol 147 issue 3664. As there have been a number of these models built, someone must have this information, I hope that it was not an inspired guess.

While it is possible to recalculate the working loads, without knowing what factors John Haining took into account in his original calculation, it may be frustrating work. Perhaps someone with access to some FE software might like the challenge.

Are new designs of boiler published in the ME accompanied by a set of the designer's calculations so that boiler testers can see what assumptions have been made or do we just go on trust?

Neil

[David De’athParticipant @daviddeath74113]

Thanks for checking the articles Neil, I'm still hoping that someone will have a definitive answer.

David

[Dave HalfordParticipant @davehalford22513]

Stationroad have sold at least one with a new certificate claiming 90psi, they may know where to look

SRS

[Former MemberParticipant @formermember19781]

[This posting has been removed]
