  • #704113
    David George 1
    Participant
      @davidgeorge1

      Alibre Atom 3D. how do I draw a flat wire spring.

      Advert
      #704153
      JasonB
      Moderator
        @jasonb

        When you say flat wire spring is that round wire just bent or a flat wire wound in some way. Can you post an image of the sort of thing you are after

        Either case I would sketch the cross section, do another sketch of the shape of the bend and then sweep the section along the sketch which is the path.

        #704184
        Michael Gilligan
        Participant
          @michaelgilligan61133

          Can you post an image of the sort of thing you are after



          He did … I saw it last night !

          … clearly round wire bent into a flat shape

          MichaelG.

          .

          Edit: __ There is one of those “missing image” icons currently showing in the duplicate topic.

          #704191
          JasonB
          Moderator
            @jasonb

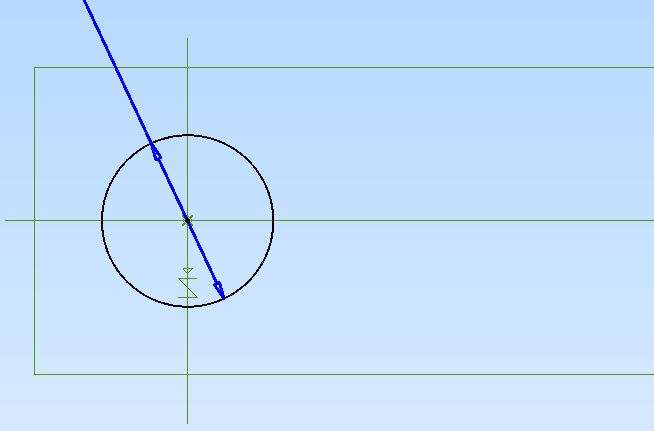

            So sketch a circle the diameter of your wire where you want one end of the spring to start

            spring circle

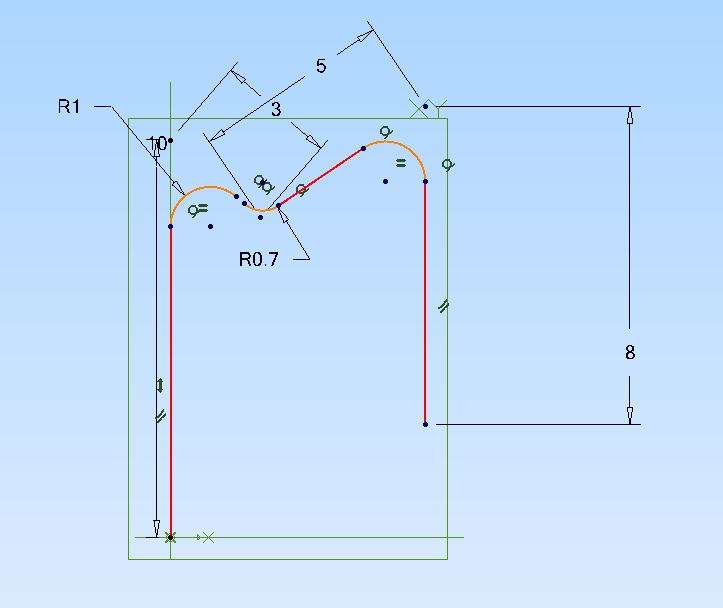

            Then sketch the shape of the bend(s) with one end of the sketch starting at the ctr of the circle put on a plane at right angles to it

            spring path

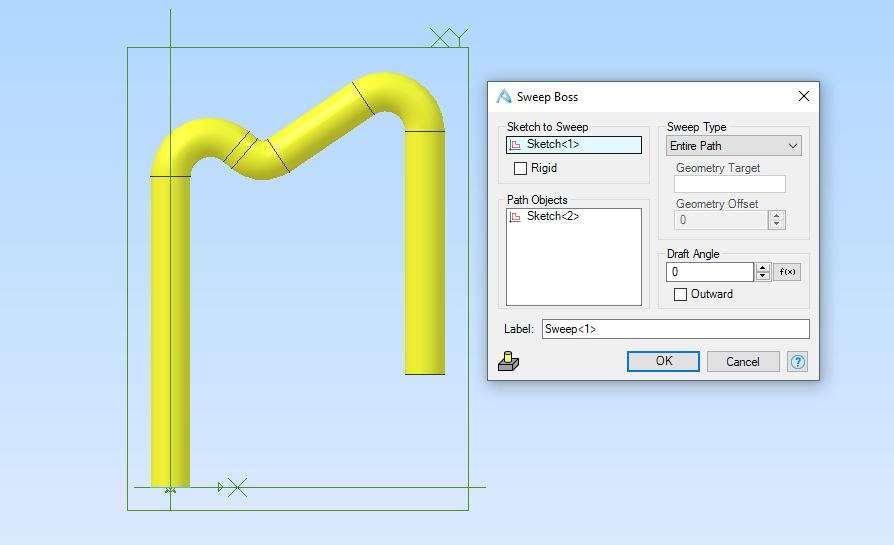

            Then sweep the circle (sketch 1) along the path (sketch 2)

            spring sweep

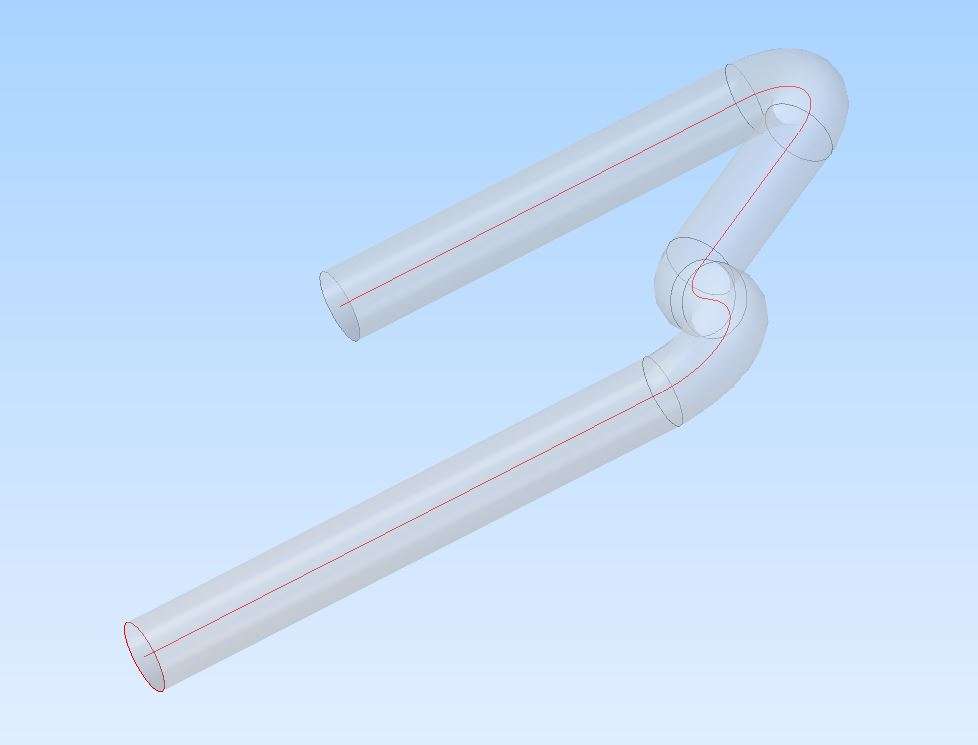

            The red lines show the two sketches and how the path starts from the ctr of the circle. I’ve hidden the axis lines as they were obscuring the red path

            spring sketches

            #704193
            Michael Gilligan
            Participant
              @michaelgilligan61133

              Nice demo, Jason

              Piece of cake when you’re an expert !



              MichaelG.

              #704200
              JasonB
              Moderator
                @jasonb

                #704207
                David George 1
                Participant
                  @davidgeorge1

                  Thanks Jason. It looks easy when you know how.

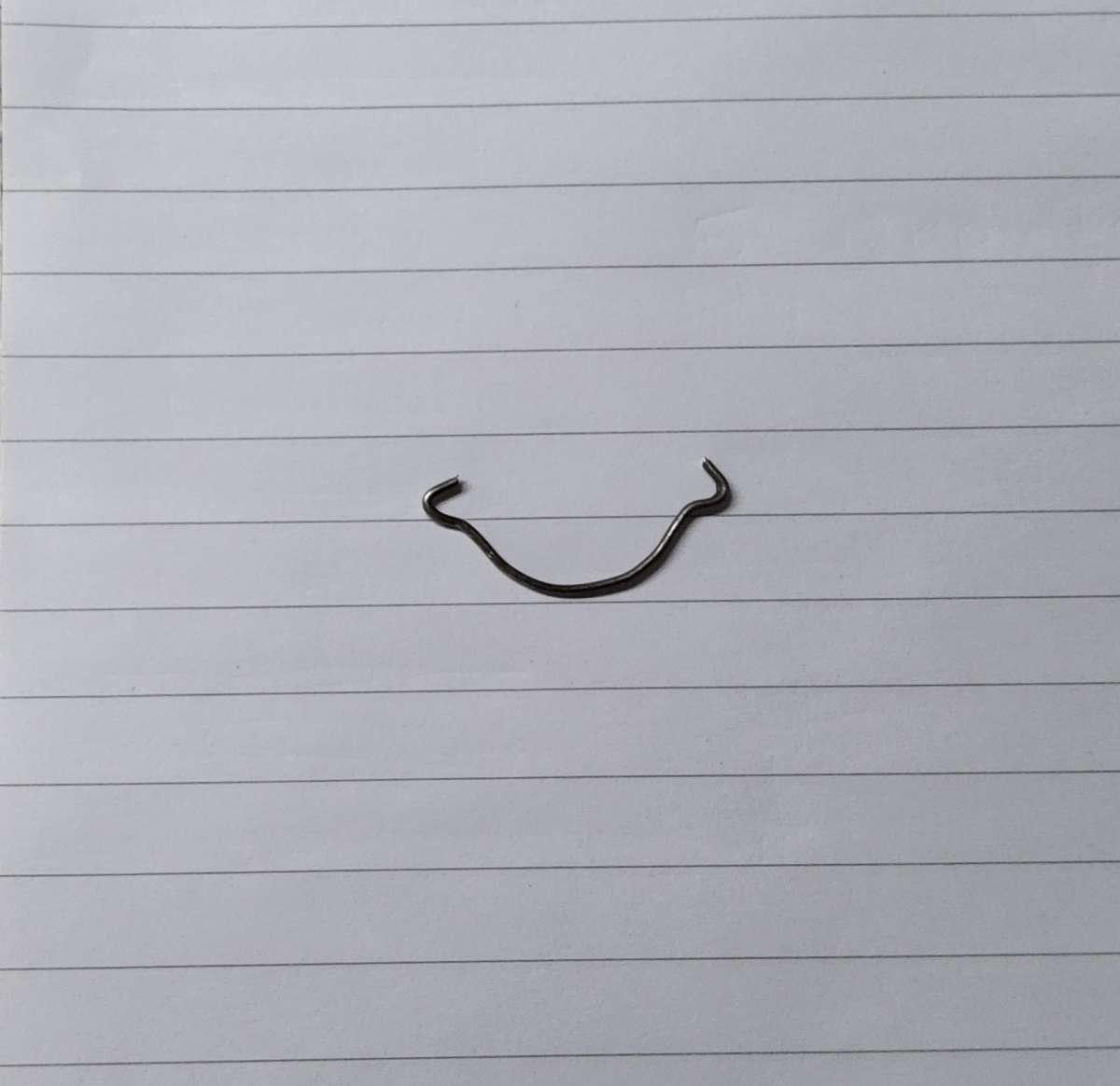

                  EDIT I have drawn a shape of the outline of the spring which looks like a D shape with double recurved ends of a 0.060″ radious on each end. the wire is only 0.040″ thick. it acts like a circlip the prevent a dial coming off the center diamiter piece and gives enough friction to allow the dial to be turned when needed but also turned to set dial as well.

                  20240103_224154

                  David

                  #704221
                  JasonB
                  Moderator
                    @jasonb

                    For something like that getting the circle perpendicular to one end will be a bit tricky. So I would sketch the circle in the middle and then sketch just one side of the “path” and sweep those. Then use the mirror tool to do the other half. I’m assuming the two ends should actually be bent the same, if not then do separate paths for each half.

                    #704243
                    David George 1
                    Participant
                      @davidgeorge1

                      As I have drawn the path already I wondered if I can create a plane perpendicular to the end and create the circle there to sweep the path from.  Also I have created a duplicate entry on here so if possible can you delete it please. I didn’t wait long enough and clicked again. Sorry

                      David

                      #704250
                      JasonB
                      Moderator
                        @jasonb

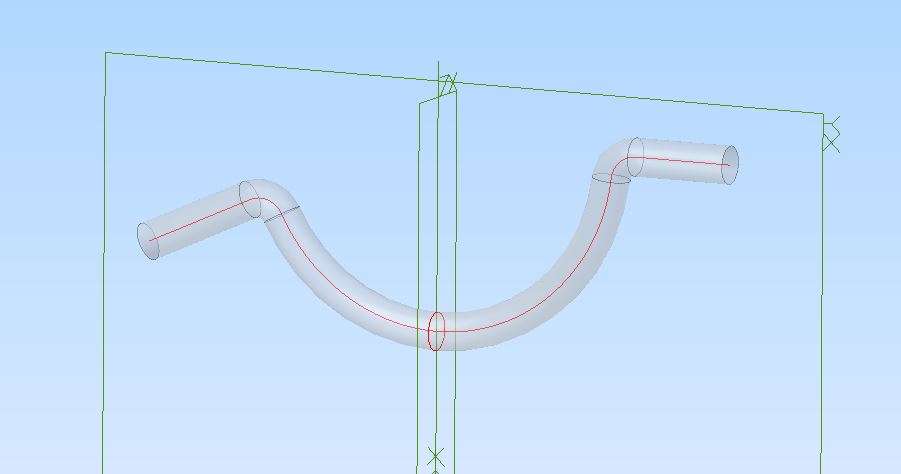

                        The circle can actually go anywhere provided it is perpendicular to the path, if you drew the path symmetrically then placing the circle on the plane of symmetry is an option.

                        spring mid

                        #704352
                        Ady1
                        Participant
                          @ady1

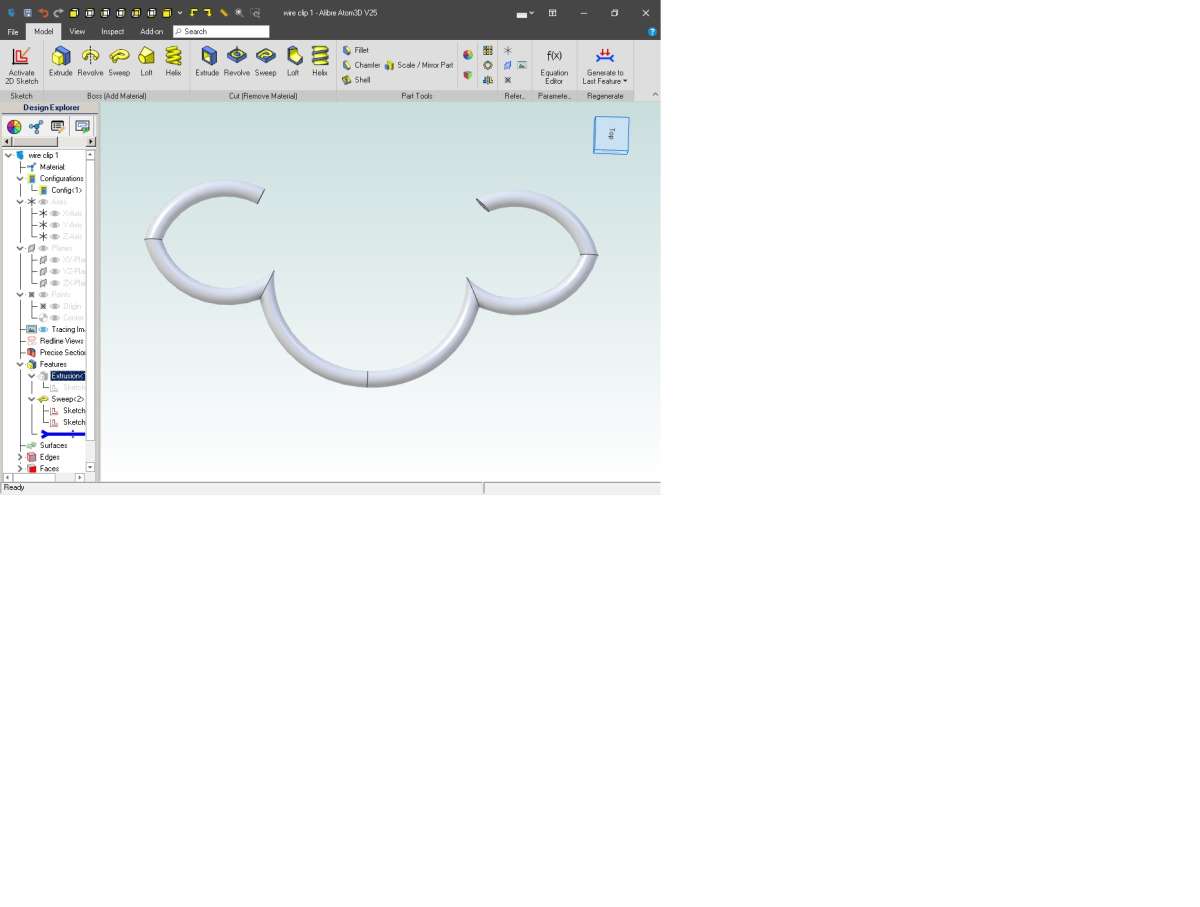

                          If you use the trim tool in 2D sketch you can do all sorts of goofy shapes

                          This was sketched from 3 circles, trimmed, then mirrored then extruded

                          wire clip1



                          #704367
                          JasonB
                          Moderator
                            @jasonb

                            clip 2

                            #704393
                            Ady1
                            Participant
                              @ady1

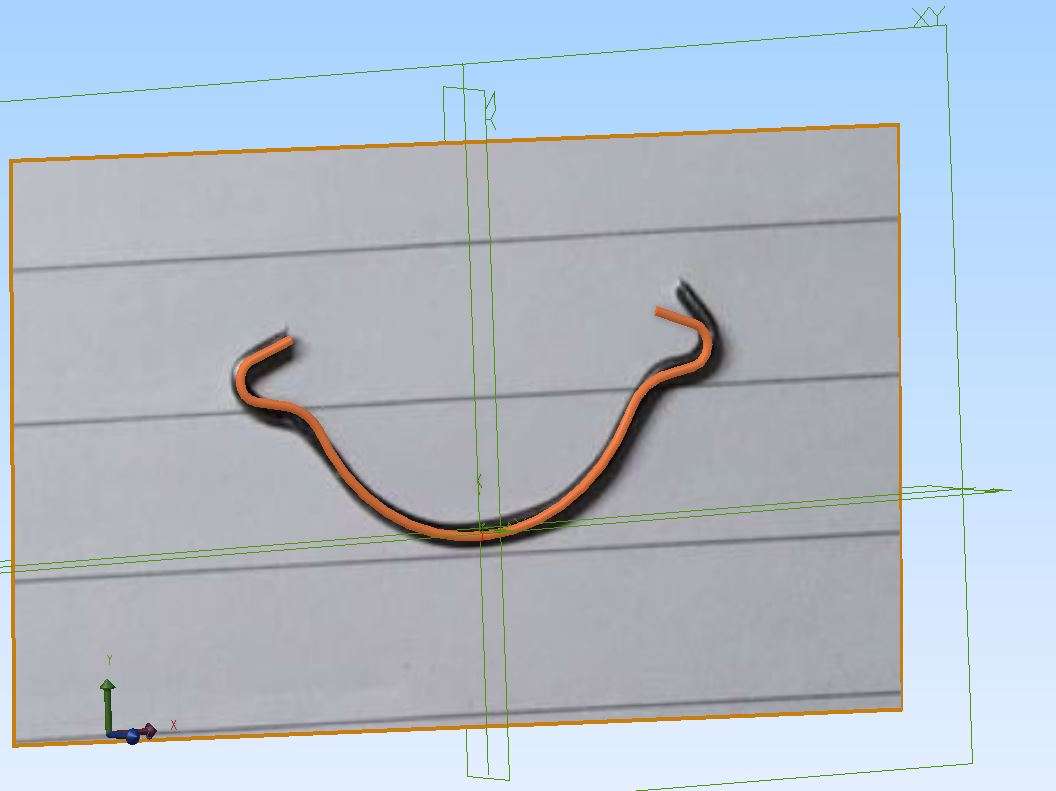

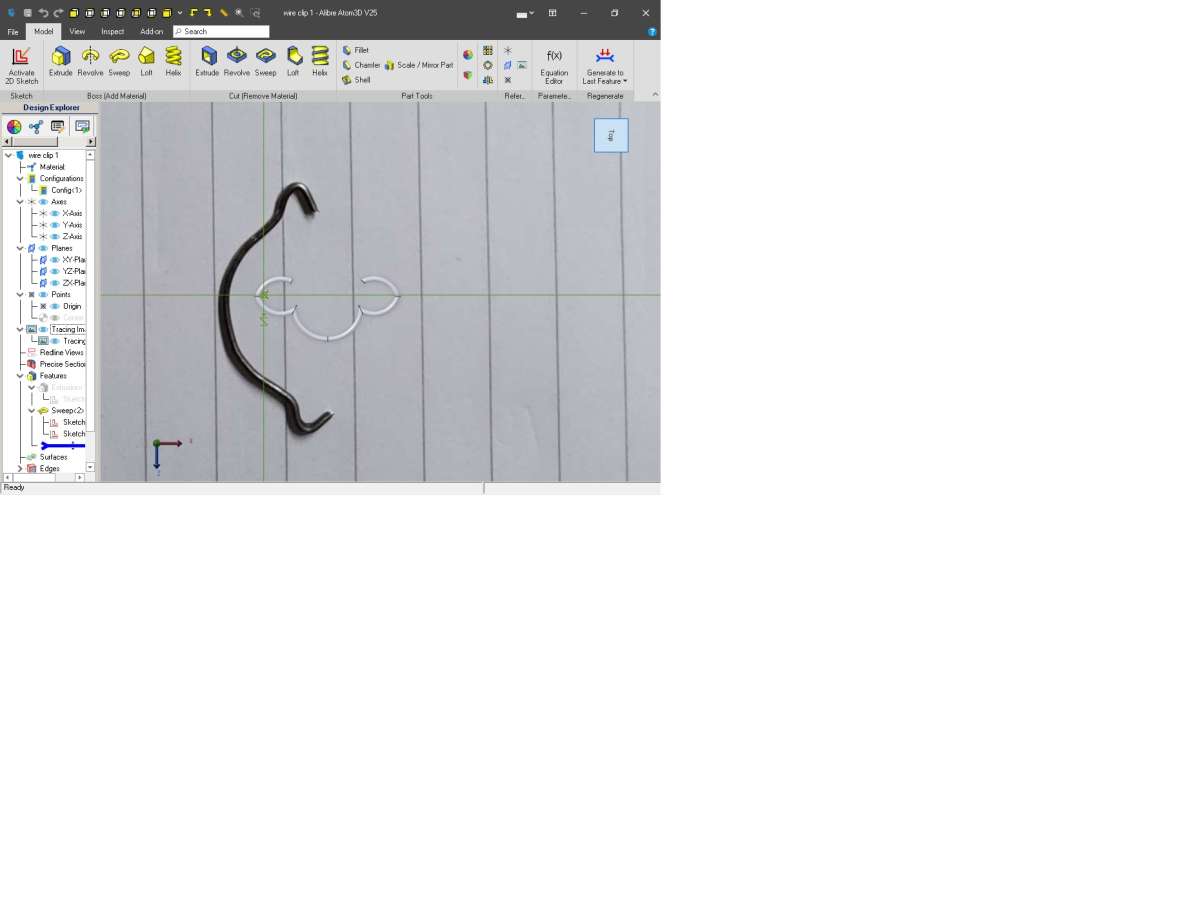

                              Insert tracing image function

                              Sometimes you need to sort the picture aspect

                              wire clip2

                              #704557
                              David Jupp
                              Participant
                                @davidjupp51506
                                On David George 1 Said:

                                As I have drawn the path already I wondered if I can create a plane perpendicular to the end and create the circle there to sweep the path from.

                                David

                                Yes, one way to define a plane is as a percentage along a path (such as your sketch).  I’m not at my main computer, so can’t definitively check if that is available in Atom3D, I think it is.

                                #704751
                                David Jupp
                                Participant
                                  @davidjupp51506

                                  I’ve just checked – plane definition along a path is available in Atom3D, which should make it simple to place a plane normal to the path, at any point along it.

                                  #705030
                                  David George 1
                                  Participant
                                    @davidgeorge1

                                    Thanks for all the advice when you haven’t used all the bits of a program it’s a slow learning curve especialy at 72.

                                    David
