Any air experts? air ammeter needed

[Ian ParkinParticipant @ianparkin39383]

Does anyone know if such an instrument as a air ammeter is available?

Presumably a anemometer

In my day job I'm called out to large machines that have a lot of pneumatics on them.The poor compressor is running continuously and the operator reports "we have air leaks"

So have to start removing panels and looking listening for air leaks can take ages particularly when theres multiple small leaks.

These machines are large multi unit printing machines with a common air line running down the length of the machine each unit has a manifold with valves for each unit

If I could put an "ammeter " into the airline coming from the compressor I could clamp the supply line at various places and narrow down where the major leaks are before removing panels to the various units

Something like the flow meter (with the ball rising in a tube ) fitted to welding bottles but safe up to 150psi

My local air components supplier cant help but suggests a ultrasonic listener device at vast expense which needs panels removing and relative quiteness…not easy in a large commercial printers whilst everyone else is running.

anyone any ideas?

Ian

[Ian ParkinParticipant @ianparkin39383]

[Nick_GParticipant @nick_g]

.

I think you are looking for a 'Manometer'

Nick

[KWILParticipant @kwil]

Hire and try leak flow meter

http://www.flowhire.co.uk/?page=ProductView&itemid=3

[Ian ParkinParticipant @ianparkin39383]

Nick

doesn@t a manometer measure pressure

I need to measure flow

like volts equals pressure amps equals flow

[Nick_GParticipant @nick_g]

Posted by Ian Parkin on 21/08/2015 12:00:56:

Nick

doesn@t a manometer measure pressure

I need to measure flow

like volts equals pressure amps equals flow

.

Yup. Sorry, my mistake.

Nick

[Neil WyattModerator @neilwyatt]

You need a MAF sensor (mass air flow).

Every modern car has one on its inlet manifold and I am sure you could hack one. They usually use two heated wires, one shielded from the air flow the other not and compare their resistances

You could even use the more primitive style as fitted to the old Astra GTE about 20 years ago – just a loosely sprung flap attached to a potentiometer.

Just noticed your pressure requirements!

This goes up to 100 psi.

Google gives lots of hits for compressed air flow meter

Neil

Edited By Neil Wyatt on 21/08/2015 12:08:41

[Ian ParkinParticipant @ianparkin39383]

That seems to be the sticking point the pressure requirement

they all seem to go up to 6.9 bar or 100 psi

sometimes the machines run at 120-150 psi

I wonder if a flow meter states safe to 100psi what will happen if its 50% more

It could explode showing vicinity with shards of perspex. I could enclose it in a clear polycarbonate tube vented

I have ordered a flow meter off ebay I'll try it at 150 psi for a while to test it

[Martin KyteParticipant @martinkyte99762]

If your flow rates are reasonable you could install a restriction in the line and measure the differential pressure. Just the same as measuring the voltage accross a sense resistor to measure current in an electrical circuit. Should work for a reasonably steady flow. If there is a lot of 'pulsed load' it's going to be a little difficult to see what is down to you shutting valves and whats not.

Martin

[David JuppParticipant @davidjupp51506]

Ultrasonic leak detectors are surprisingly effective in noisy environments, the 'noise' is typically in a very different frequency range from that which leaks give rise to.

Rather more expensive – you can now buy clamp on ultrasonic flow meters that can measure gas flow rates.

A simple device that seems to offer what you ask for would be a Rotameter – a 'float' rises up a graduated tube , more flow, the 'float' lifts further up the tube. A quick search on Rotameter should show some options.

[Ian PParticipant @ianp]

'Float in tube' Rotameter type instruments generally have a limited range of measurement, there is a big difference between measuring flow in mililitres per hour and cubic metres a minute.

Leak testing the sort of system you describe should be done in a logical and sequential manner. I doubt whether you could do it whilst the machine is running and various valve etc are operating.

With the machine in a static state I presume it should not be consuming any air? If you then insert a flowmeter in the compressor output line and there was only a small leak it might not show any reading unless it was a very low range flowmeter. You only really know what range of measurement you need 'after' you have measured the flow!

Any flowmeter that will handle the flow of the equipment is unlikely to even move off its zero position with just the leak rate. Unless the machine is very cooperative even inserting a flowmeter into the line can be very trying or inconvenient because of the various pipe and fitting sizes.

I would start by isolating sections at a time and use the soapy liquid type indicator.

Ian P

[Ian ParkinParticipant @ianparkin39383]

Ian

Yes you are right the machine should not be consuming any air whilst at rest or indeed whilst running

only when certain operations are called for but for most of its running time its drawing no air.

But the poor compressor is running 100% dealing with leaks

All I need is a device to go into the airline and tell me if theres any flow, I'm not really interested in the flow rate just if theres any flow

so I bought a couple of these to experiment with

http://www.ebay.co.uk/itm/331631247476?_trksid=p2060353.m2749.l2649&ssPageName=STRK%3AMEBIDX%3AIT

Most air supplies are 10mm or 12mm nylon tube so it wont take long to adapt

if you can imagine a machine 40 ft long with 6 units and each unit taking perhaps 30 – 120 mins to take its panels off any time saving is good

If the device i've bought stands up to the pressure then the ball will be at the top of the column so by crimping /isolating pipes downstream of the meter will quickly show where the major leaks are

I've been fiddling with printing machines now for 35 years so I do work in a logical fashion but with machines getting more automated with electronics and air actuators I could do with some help with diagnosis as they get older and more leaky

Lots of times the source of the leak is rodents they seem to like the taste of nylon tube

[Ian PParticipant @ianp]

Ian

As I dont know your system i have no idea how big the compressor is but if its running continuously there must be a fair leak, Can you isolate each cabinet in turn?

'Crimping' nylon tubing enough to stop the flow might destroy is integrity especially if its aged, its better to disconnect and cap off.

The flowmeter you show will give no indication below 0.4ft3/hr which to me sounds like a big leak (but its all relative anyway)

Ian P

[Clive HartlandParticipant @clivehartland94829]

If you are looking for air leaks then something like a foam spray will show if there is a leak. One thing to check is if there is any water in the system in pipes that are sagging down anywhere, ( I have had that happen) It is no good having moisture traps if every time you bleed one you get a half pint out of it. The compressor running 100% of time will give quite warm air which is ideal for making condensate.

Pinching a tube to measure flow? You are seeking how much flow, so you need a measurement at full flow. You might as well buy an Anemometer and take a tube off and direct it at the vanes. Check spec of air consumption for each take off point, you might find one part is at fault.

Clive

[Ian ParkinParticipant @ianparkin39383]

Ian P

0.4ft3/hr would be nothing i'm talking 4 ft3/min

these machines are massive 30-40 tons running maybe 10 compressors (lp)

and one HP compressor maybe with a 50-100 litre tank

I know it seems strange to say that you cant hear the leaks but you cant…. taking panels off to look with a spray just takes too long

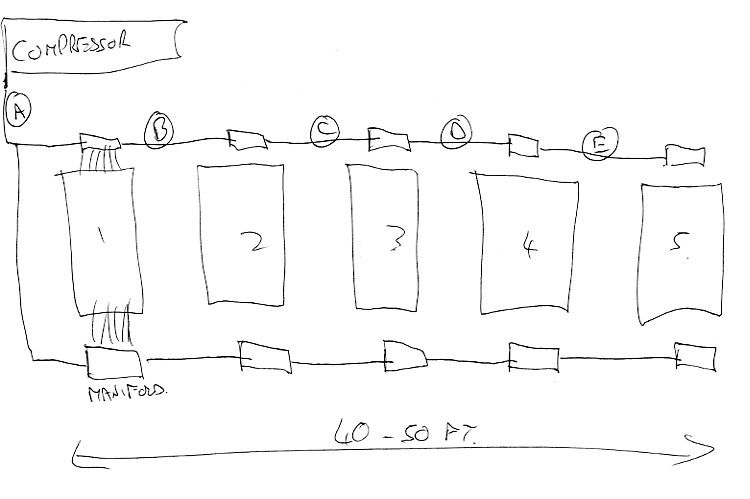

heres the layout of a typical press

the air supply pipes genrally run at ground level down each side of the machine

So if I place my meter at A I can then isolate at E,D,C,B on each side and look at the meter to see which unit is leaking most before stripping down further

then further on each set of pipes coming from the manifold maybe 30 pairs

there may be 30 actuators in each unit

Some presses you can spend 3 hours removing just one side panel and then similalr putting back together

For anyone who knows these are KBA's or man rolands

heidelburgs are a bit simpler

[John McNamaraParticipant @johnmcnamara74883]

Hi Ian

Provided there are no electronics nearby an easy way to test for leaks is a plastic trigger spray bottle filled with water mixed with plain soap. Standard equipment for Gas fitters. You don't need much just a light spray on any joints or suspect areas.

Even a tiny leak is easily shown by the bubbles.

Regards
John

[Ian ParkinParticipant @ianparkin39383]

John what people are not grasping is that to take ALL the panels off takes perhaps 2 days to find a leak that takes 2 mins to cure when the panels are off the leaks are easy

I need to speed that up by diagnosing where it may be before dismantling

This is a multi million pond press new and with 3 very highly paid blokes not working so time is of the essence

[frank brownParticipant @frankbrown22225]

The only way I can think of is to install good self sealing air connectors T'ed between the sections, then you could use some form of differential pressure indicator on a test lead. Either a sensitive pressure meter whose works can withstand the static pressure and a over pressure valve across it. This is because when a solenoid operates the pressure at far end might drop by 50 PSI and you don't want to blow up a 0-10 PSI meter. A turbine in a pressure rated case would do, if there was air going through it, it would rotate slowly. This could be done in a metal case with the blade rotation indicated by the blades cutting a light beam to a photocell, so it would either "tick" or "scream" depending on the air flow.

Frank

[Keith LongParticipant @keithlong89920]

Ian – you might find something in the variable area flowmeter range made by Platons (http://www.ctplaton.com/en/home.php ). The working pressure that I saw was up to 10 barg so in line with your supply pressure. Be worth enquiring by phone or e-mail. I use to use these devices, and similar, a lot 30 years ago on both liquids and gases, usually very easy to set up and operate – just needed to get the range right, we had a kit of interchangeable parts that allowed you to swap tubes and floats to cover a large range.

[JAParticipant @ja]

As I understand it, you have:

1. A compressor that should be supplying 4ft^3/min of air at 150 lbf/in^2.

2. One or more printing presses that have air leaks

3. A management that does not want to shut down the printing presses – I guess that this will be the real problem.

First, do the easy thing. Check for air leaks from the compressor to the presses, that is all the flanges etc, using soap and water or a proprietary spray (both have their advantages). Rectify any leaks.

Second, if you are still unhappy you will have to shut down the process and install some form of air flow measuring device at the delivery of the pump (A on your sketch). I do not know what devices you have found on the internet but at work, where we had to measure similar air flows, we used British Standard BS1042 designs (usually D to D/2 orifice plates with suitable pressure transducers). However you may not have the room to install the correct pipework. If you do look at BS1042 do not be put off by the size of the document. Now start up the whole system and shut one press down in turn measuring the air flow each time. You can compare the flow for each press with its specification and come to a conclusion which press is leaking (or leaking badly) and take appropriate action. Of course it is possible that the compressor is unable to supply the required amount of air.

As said earlier the real problem is the financial benefit of keeping the presses running against the cost of producing excess high pressure air.

JA

[Andrew EntwistleParticipant @andrewentwistle]

Hi Ian,

I am not very knowledgeable in this area, but we just installed one of these datalogging flowmeters at work to meter the compressed air used by a company we share the building with.

**LINK**

It works at up to 16bar. It must be possible to get a much cheaper non logging version (this one was about £1k).



Andrew.

Edited By Andrew Entwistle on 21/08/2015 19:49:36

[Andrew EntwistleParticipant @andrewentwistle]

Ian, sorry I missed your earlier post about the eBay rotameters you bought. Surely one of those plumbed to push-fits with the valve fully open will be perfect to detect even 1/50 of a CFM flow?

Andrew.

[Ian ParkinParticipant @ianparkin39383]

Andrew

yes i hope they will work its just they only rated at 100 psi rather than the 150 psi likely

Also the meter will not be left in place its just for fault finding purposes

most of the time the whole system works in spite of leaks… the first time problems flag up is when the compressor packs in because its running 100 % of the time

A big leak is obvious because one unit wont work or one actuator fails to move..its just lots of small leaks that build up to a massive air loss

[Ian PParticipant @ianp]

Posted by Ian Parkin on 21/08/2015 17:13:08:

John what people are not grasping is that to take ALL the panels off takes perhaps 2 days to find a leak that takes 2 mins to cure when the panels are off the leaks are easy

I need to speed that up by diagnosing where it may be before dismantling

This is a multi million pond press new and with 3 very highly paid blokes not working so time is of the essence

If this is nearly new, cost millions and take hours to gain access its obviously not fit for purpose and I would send it back!!!

Seriously though, I'm flabbergasted that such a complex bit of kit does not have built in diagnostics. For something that is a fundamental part of an industrial process running continuously I would expect numerous temperature sensors, bearing vibration monitors and miscellaneous other transducers so that the health of the machine is always known.

As to the covers being so time consuming to remove, they are obviously in the wrong place. Are the covers to stop people trapping fingers or purely decorative?

Ian P

[Ian ParkinParticipant @ianparkin39383]

This is the type of press

the panels on each side on a kba are made of 10mm thick alloy those are the white door size areas near the top

under there is the control systems of the machine

the air supply pipes and control valves are under the running boards

So imagine being called in to fix a problem with this when the operator tells you the hp compressor is running all the time and kicking out due to overheating and having to find the problem quickly while 3 blokes stand around doing nothing and a factory full of machines all making lots of noise
