Alibre Atom: Hiding Construction Lines on jpg?

Alibre Atom: Hiding Construction Lines on jpg?

This topic has 2 replies, 2 voices, and was last updated 7 May 2024 at 22:24 by Nigel Graham 2.

Viewing 3 posts - 1 through 3 (of 3 total)

Author

Posts
7 May 2024 at 13:23 #729531
Nigel Graham 2
Participant
@nigelgraham2

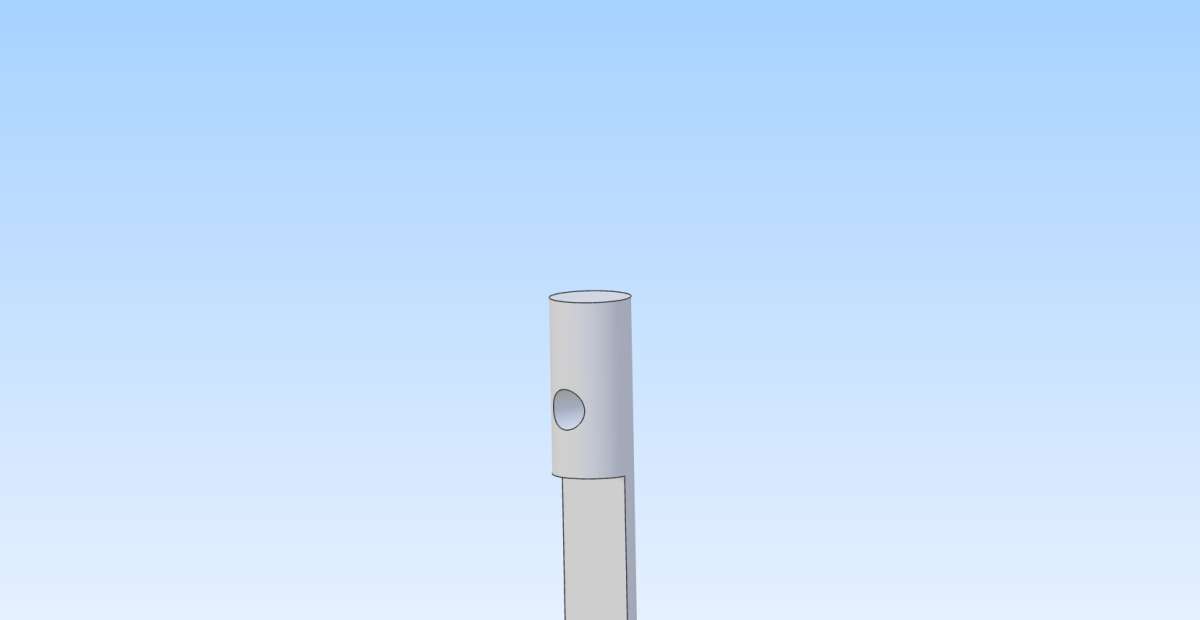

Helping another user make a replacement machine part entailed copying a simple Alibre image in .jpg form to post on this site.

How do I do this so it hides the plane outlines and other construction lines, please?
Advert

7 May 2024 at 14:08 #729537
David Jupp
Participant
@davidjupp51506
Nigel,

Toggle off references in Atom3D before exporting as jpg.
7 May 2024 at 22:24 #729584
Nigel Graham 2
Participant
@nigelgraham2
Ah, found it.

Thank you David.

I was looking at the wrong References menu first.
