Free Plan: A Filing Rest

by

The calibrated adjustment allows accurate work.

The full article can be downloaded from the MEW archive, but hopefully the plans are more or less self-explanatory.

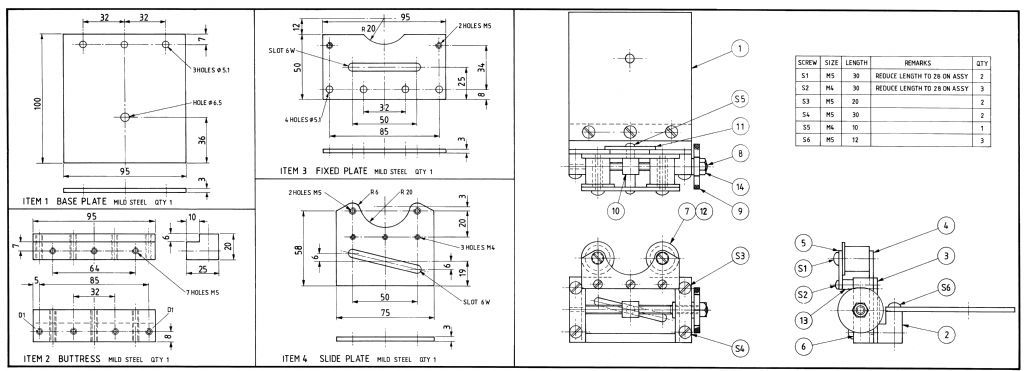

Download a PDF of sheet 1 here.

Article continues below…
Advert

Enjoy more Model Engineer reading in the monthly magazine.
Click here to subscribe & save.

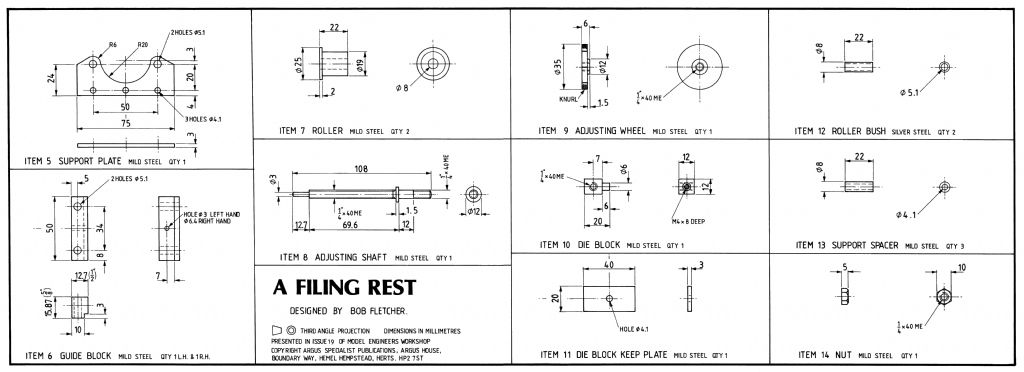

Download a PDF of sheet 2 here

As ever, thanks to Nick Farr for scanning the original plans.
