Cross Vice to Vertical Slide

This time we bring you the article text (right click and choose view image) as well as the plans as jpeg and full res PDF.

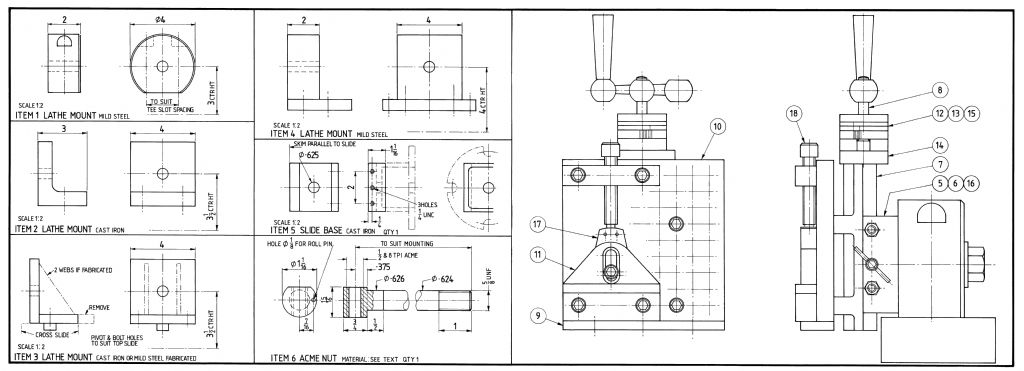

Free Plan Cross Vice to Vertical Slide 1

Download side one of the plan as a full-size PDF HERE

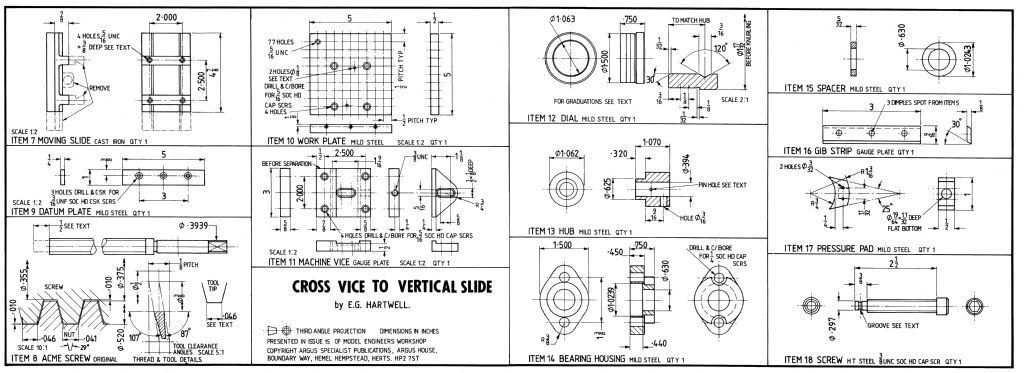

Free Plan Cross Vice to Vertical Slide 2

Download side two of the plan as a full-size PDF HERE

Article continues below…
Advert

Enjoy more Model Engineer reading in the monthly magazine.
Click here to subscribe & save.
Free Plan Cross Vice to Vertical Slide

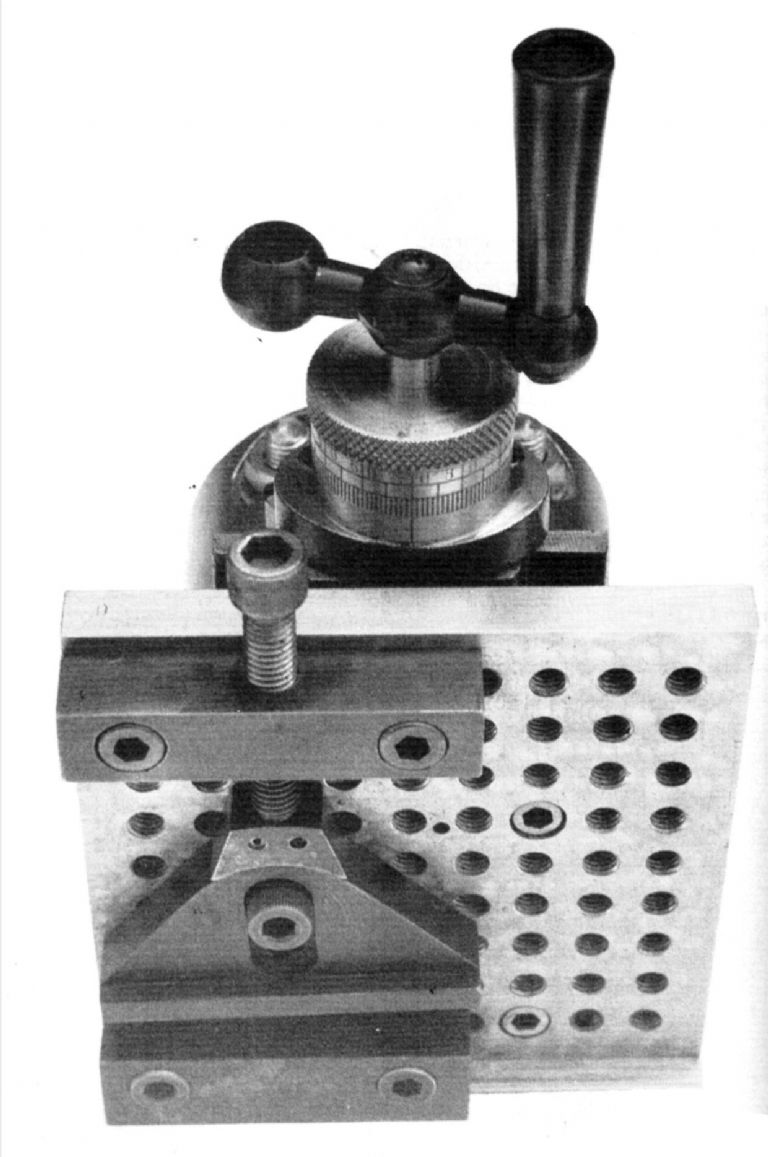

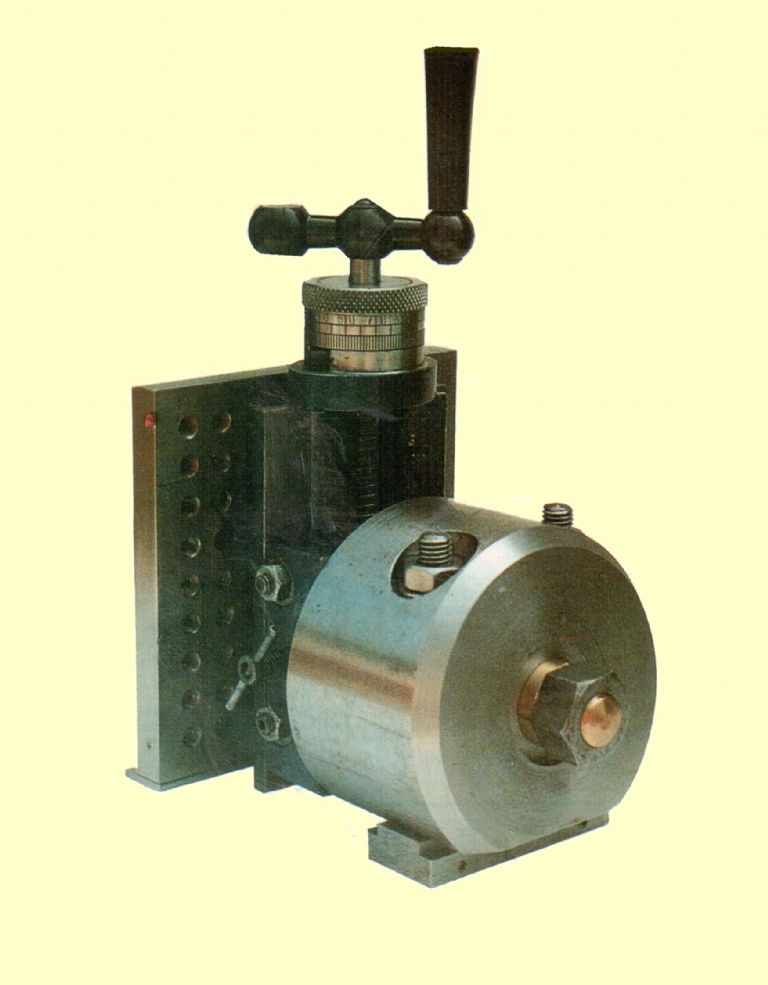

The design uses a tapped table together with a machine vice.

View the original article pages below – right-click and ‘view image’ to see a larger version:

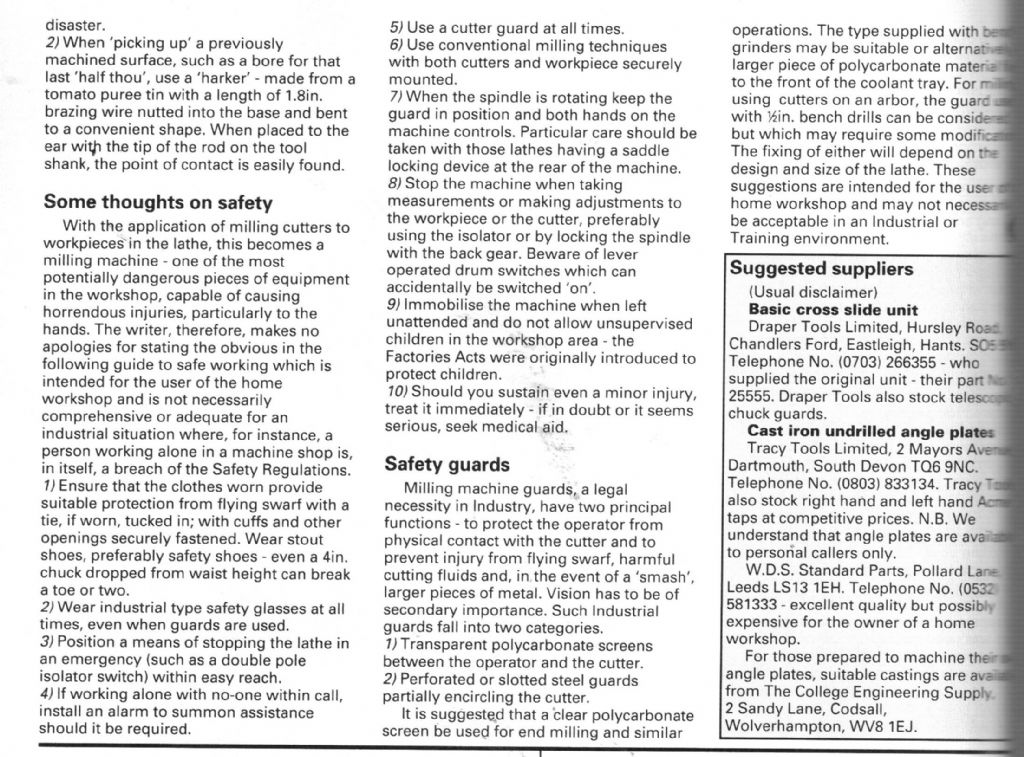

Free Plan Cross Vice to Vertical Slide page 1

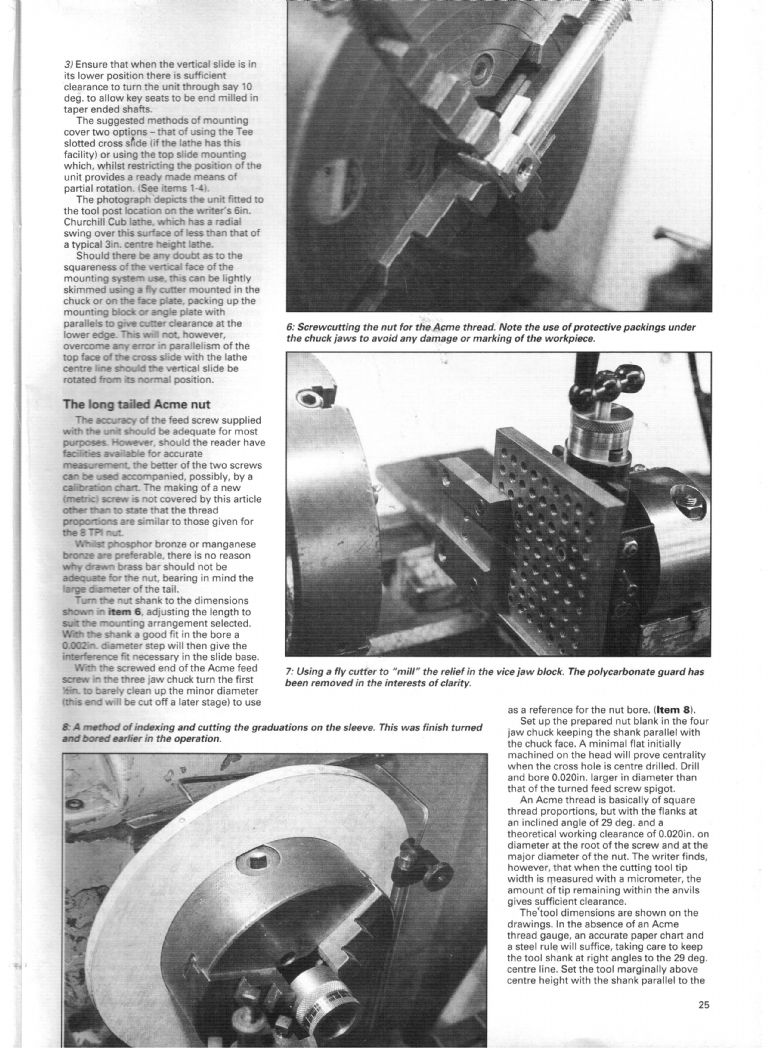

Free Plan Cross Vice to Vertical Slide page 2

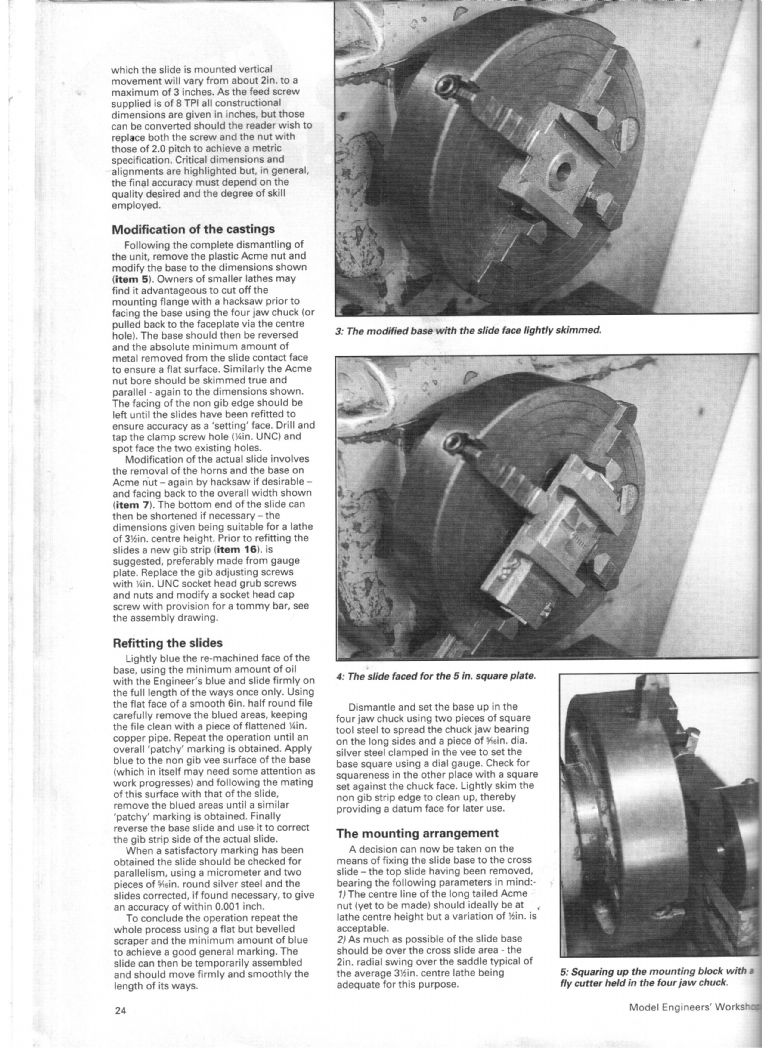

Free Plan Cross Vice to Vertical Slide page 3

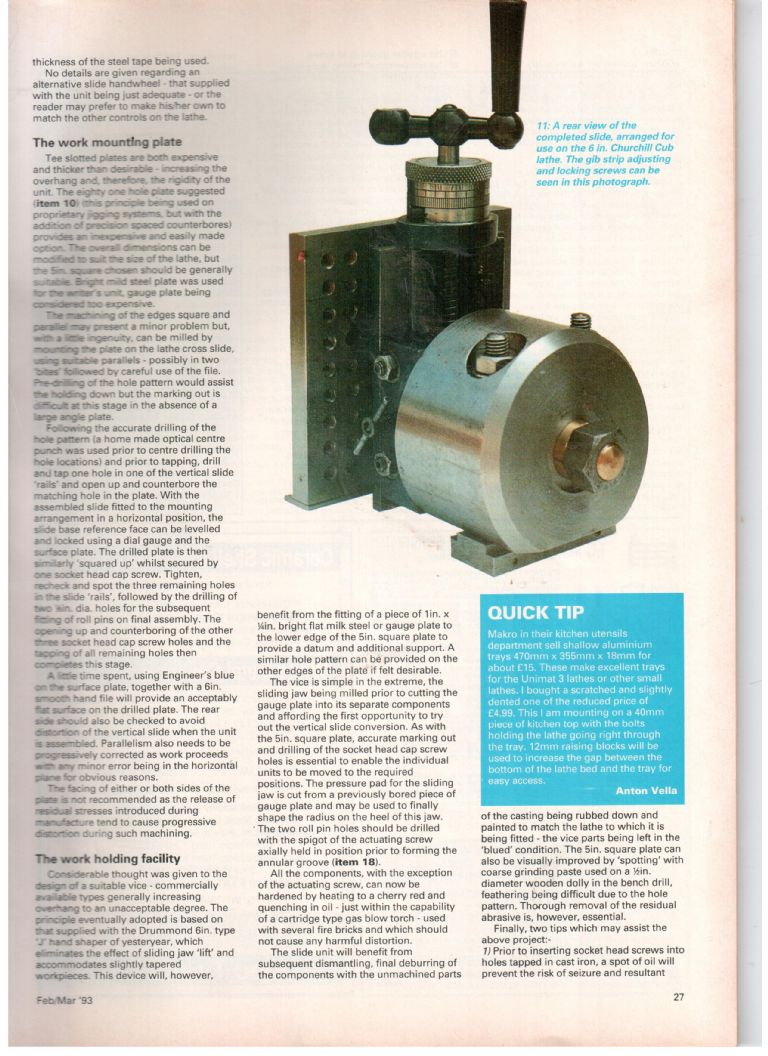

Free Plan Cross Vice to Vertical Slide page 4

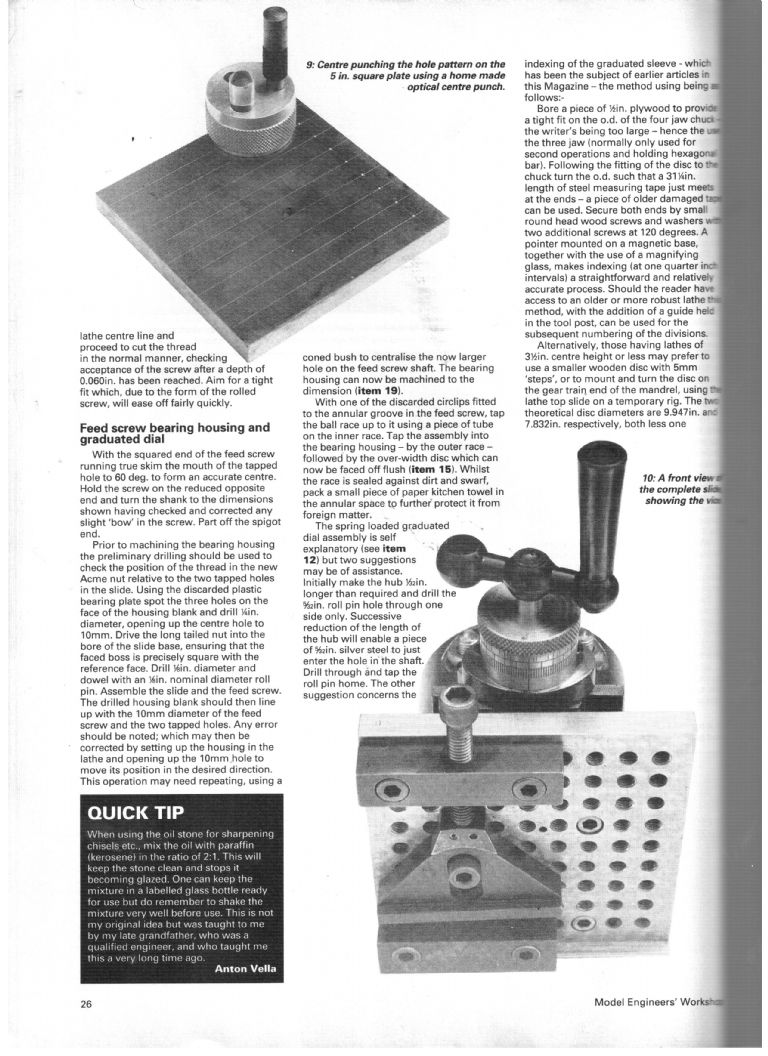

Free Plan Cross Vice to Vertical Slide page  5
Page 6

Kudos to Nick Farr the valiant champion of the Free Plans for his artful scanning and prepping of the plans.

The page scans are mine, apologies for the illegible edges, but there’s no way I am chopping up my old MEWs!
