Free Plan: Four Jaw Chuck

by

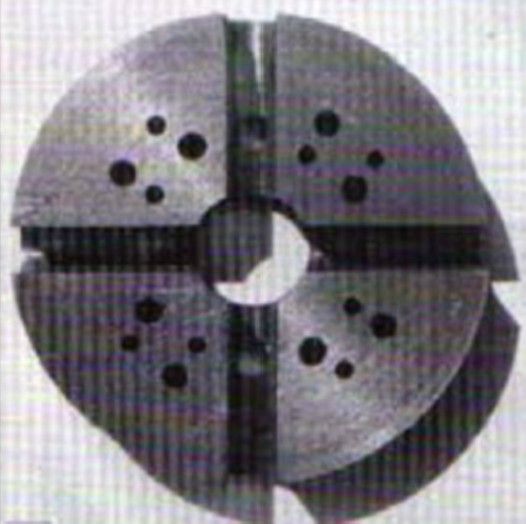

Bob Loader's 4-jaw chuck

This is a particularly pleasing plan to present as the resulting chuck is very neat and practical.

As usual, the full-size plan is contained in these two low-res jpeg files and full detail accompanying pdf versions:

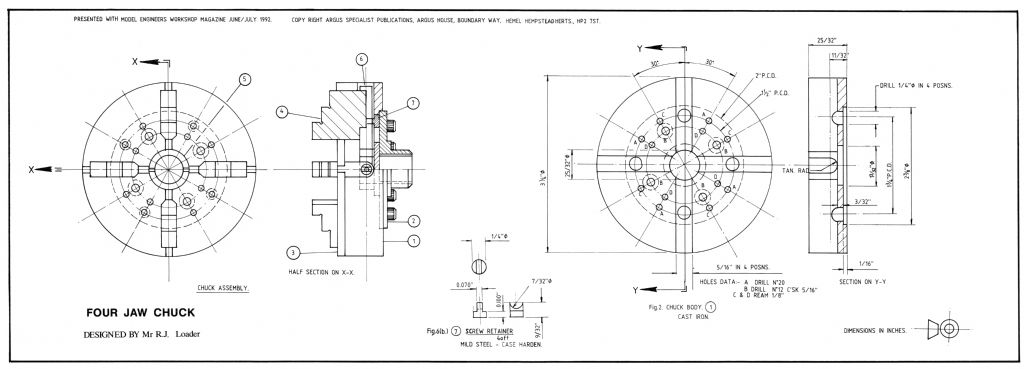

four-jaw chuck plan side one
