Free Plan: A Lathe Mounted Bandsaw

by

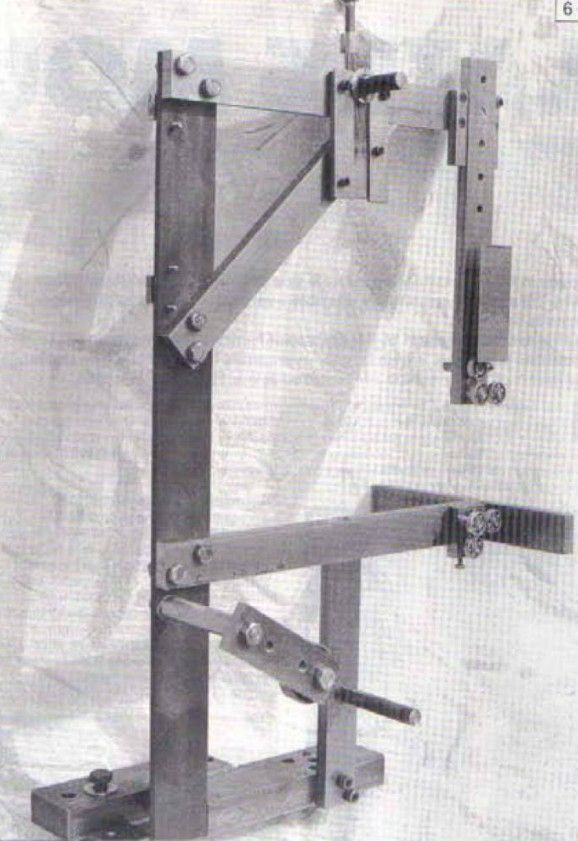

The fabricated framework of the saw.

Back in 1992 this design was offered for those who lacked the space for a normal bandsaw. It was the first free plan to appear over two issues – a rare move for EW in those days, but one that showed the magazine had established itself as a regular publication.

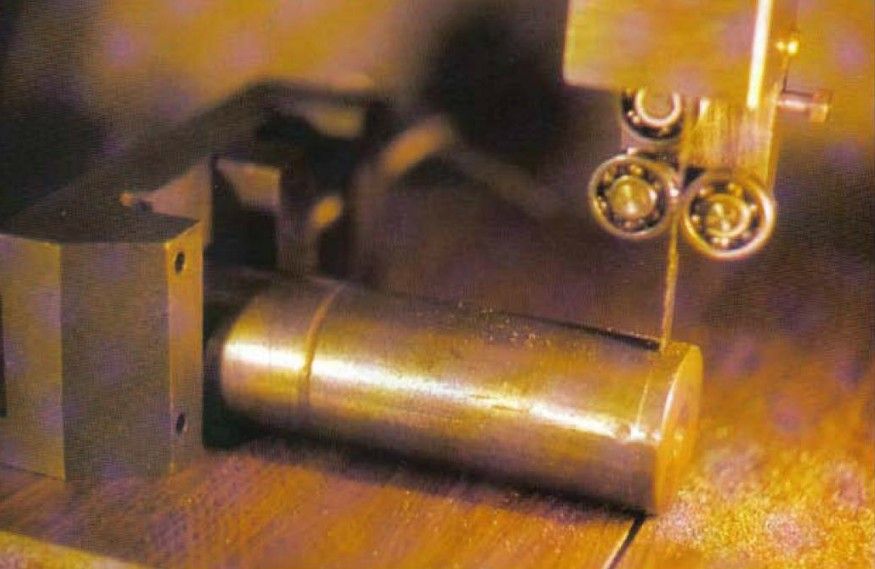

The blade guides

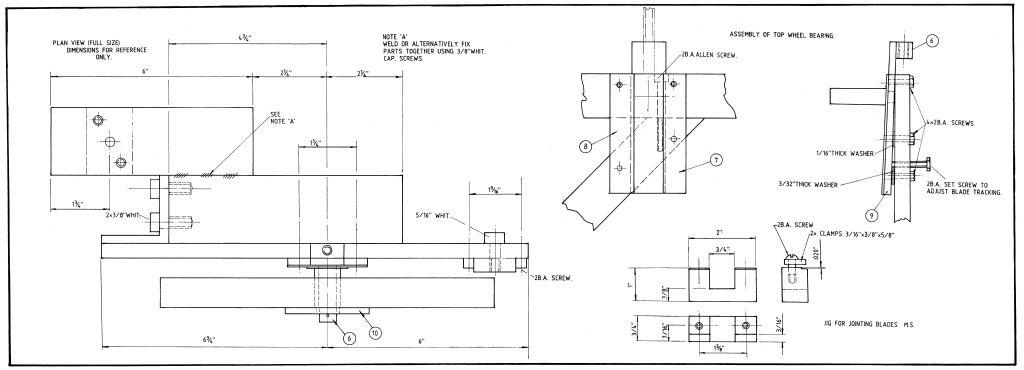

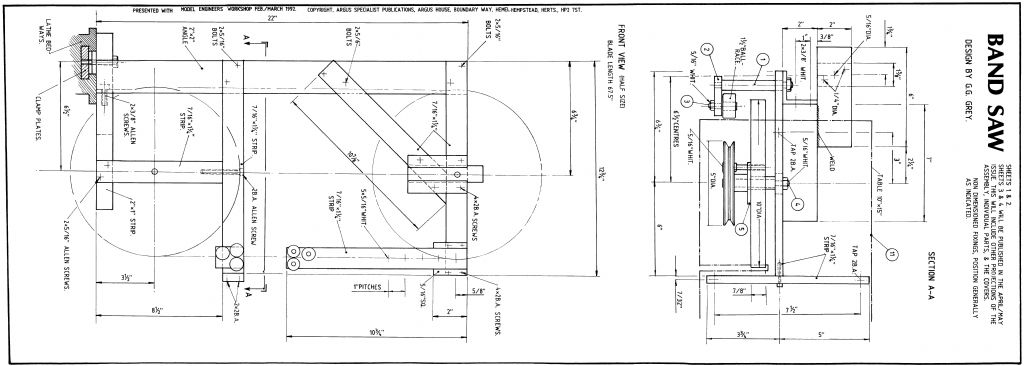

Download sheet 1 as a pdf

Download sheet 2 as a pdf

Article continues below…
Advert

Enjoy more Model Engineer reading in the monthly magazine.
Click here to subscribe & save.

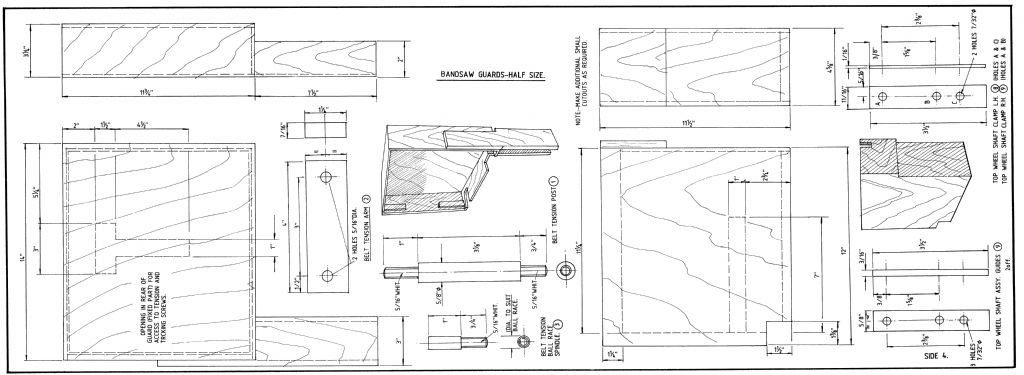

Download sheet 3 as a pdf

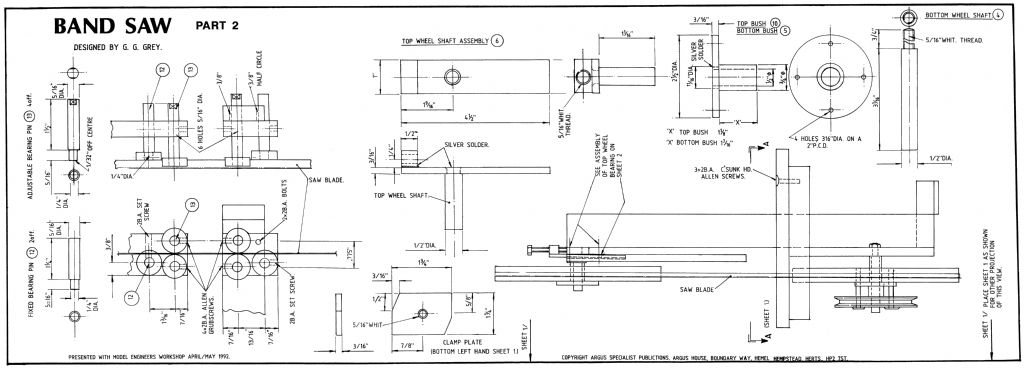

Download sheet 4 as a pdf

Or download the whole plan as sixteen(!) A4 pages that can be printed out and taped together.
